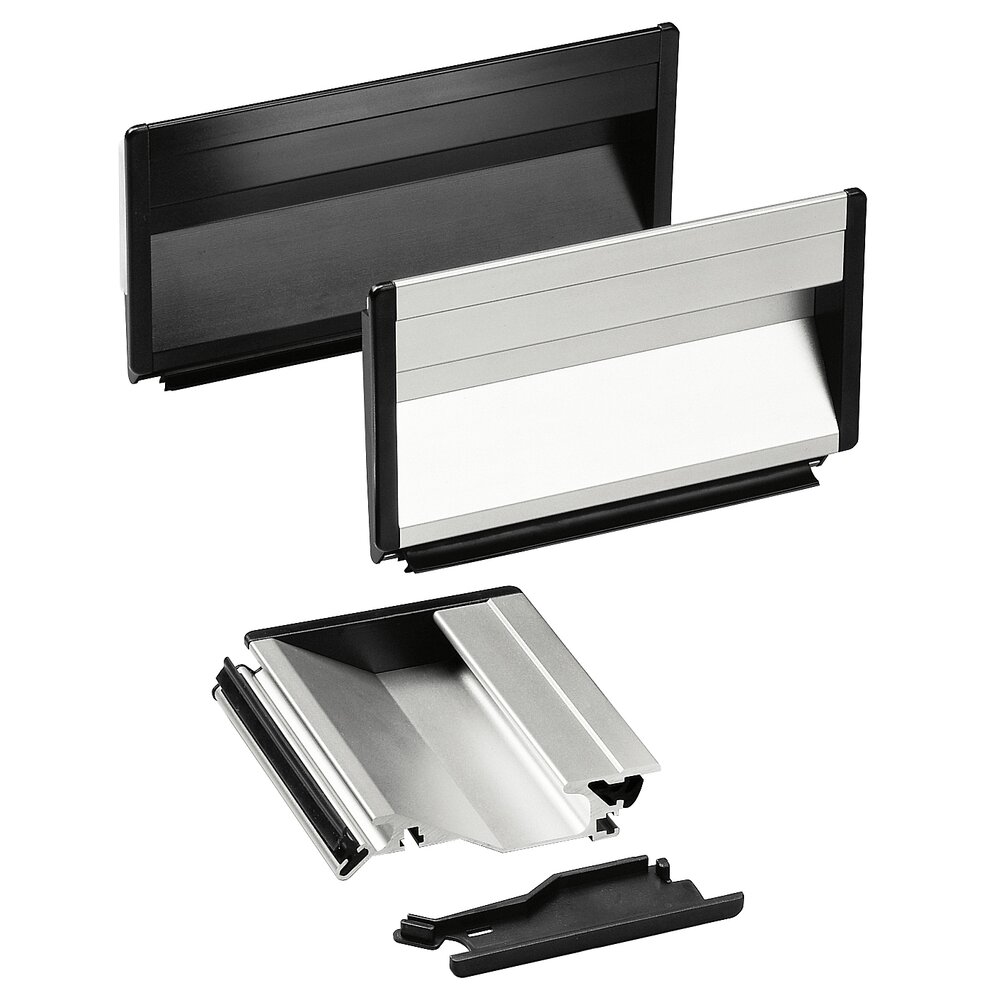

The Rohde SG tray handle is available in any desired length and thus is particularly suitable for adaptation to any and all space and design requirements.
Material and surface:
Profiled aluminium tray. End caps of black satin finish polyamide PA6. The tray handle is glass ball blasted and anodized to a satin finished surface in natural or black colour.
Design A
Installation by means of an upper rubber insert that pushes in from the back.
Design B
Installation by means of 2 galvanized countersunk screws M4x8, DIN 966 from outside.
Design advantages:
Very simple installation. Does not require screws for metal thicknesses of 1-2.5 mm. Two rubber inserts guarantee tight and secure installation. Two cross-slotted grooves for M4 srews displaced by 90° provide firm connection or may be used as mounting aids for installation elements. (For square nuts according to DIN standard 562.) Excellent human engineering of the tray recess. Can also be mounted by installing two countersunk screws from outside.
Mounting:
After insertion of the bottom rubber profile, the two end finials must be pushed on to the tray. Next the handle must be pressed over the lower edge of the mounting cutout at a 45° angle. Holding the handle against the housing panel, now the second rubber profile is pushed into the upper groove (see illustration), or if countersunk screws are used, the two screws are now installed.
Stress resistance:
min. 500 N.
Unit of measure
|
||||
---|---|---|---|---|
Description | ||||
L | Color of handle tray |
Installation by countersunk screws
Order-No. |
Installation by rubber insert
Order-No. |
Mountingcutout |
L | Color of handle tray |
Installation by countersunk screws
Order-No. |
Installation by rubber insert
Order-No. |
Mountingcutout |
---|---|---|---|---|
L 100 | Color of handle tray black |
Installation by countersunk screws
Order-No. SG-73.100.B4 3D+CAD |
Installation by rubber insert
Order-No. SG-73.100.A4 3D+CAD |
Mountingcutout 104 x 73 |
L 100 | Color of handle tray natural |
Installation by countersunk screws
Order-No. SG-73.100.B1 3D+CAD |
Installation by rubber insert
Order-No. SG-73.100.A1 3D+CAD |
Mountingcutout 104 x 73 |
L 118 | Color of handle tray black |
Installation by countersunk screws
Order-No. SG-73.118.B4 3D+CAD |
Installation by rubber insert
Order-No. SG-73.118.A4 3D+CAD |
Mountingcutout 122 x 73 |
L 118 | Color of handle tray natural |
Installation by countersunk screws
Order-No. SG-73.118.B1 3D+CAD |
Installation by rubber insert
Order-No. SG-73.118.A1 3D+CAD |
Mountingcutout 122 x 73 |
L 167 | Color of handle tray black |
Installation by countersunk screws
Order-No. SG-73.167.B4 3D+CAD |
Installation by rubber insert
Order-No. SG-73.167.A4 3D+CAD |
Mountingcutout 171 x 73 |
L 167 | Color of handle tray natural |
Installation by countersunk screws
Order-No. SG-73.167.B1 3D+CAD |
Installation by rubber insert
Order-No. SG-73.167.A1 3D+CAD |
Mountingcutout 171 x 73 |
