Tube Connector for ø50

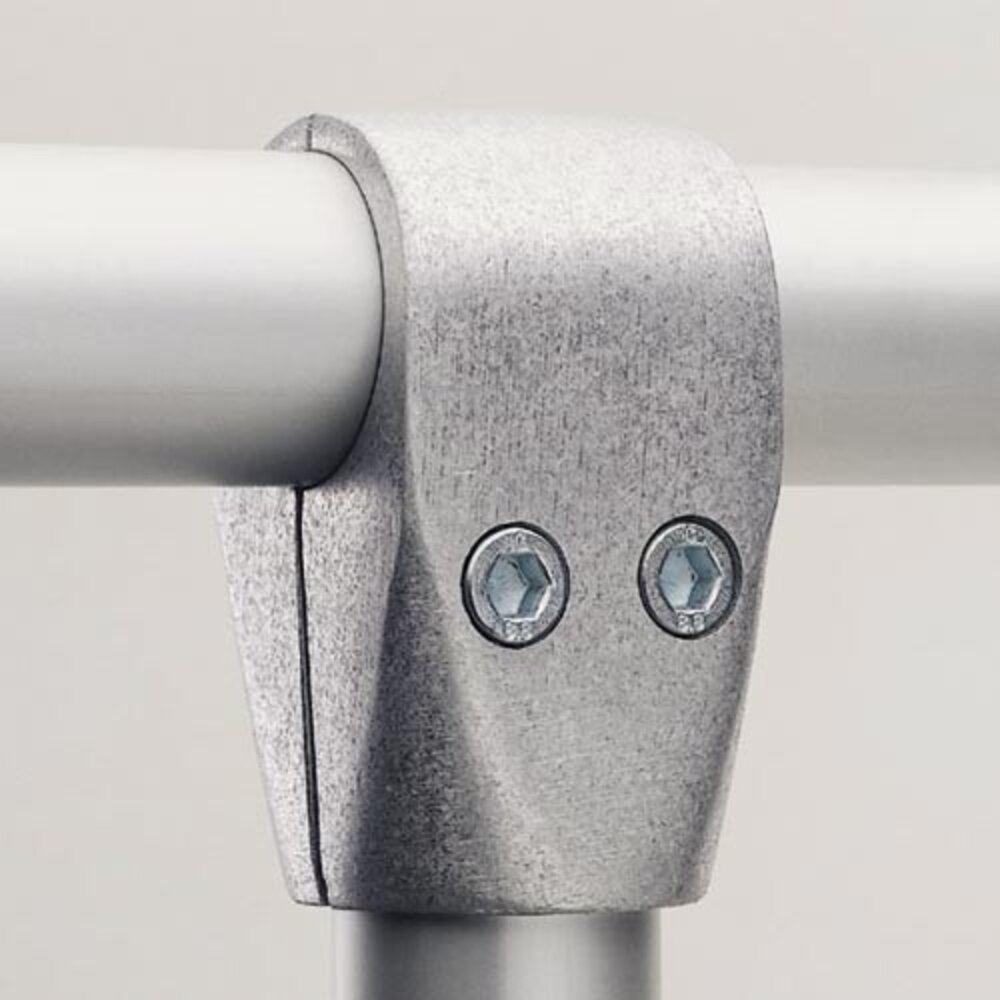

Tube Connectors RV

Material:
Chill casting of high-grade aluminium alloy in accordance with DIN 1725.

Supply range:
The tube connectors are supplied with bolts and sockets nuts of stainless steel (material no. 1.4301).

Special versions:
Other diameters on request.

Colour/surface Surface-code
Rough state * -0.0

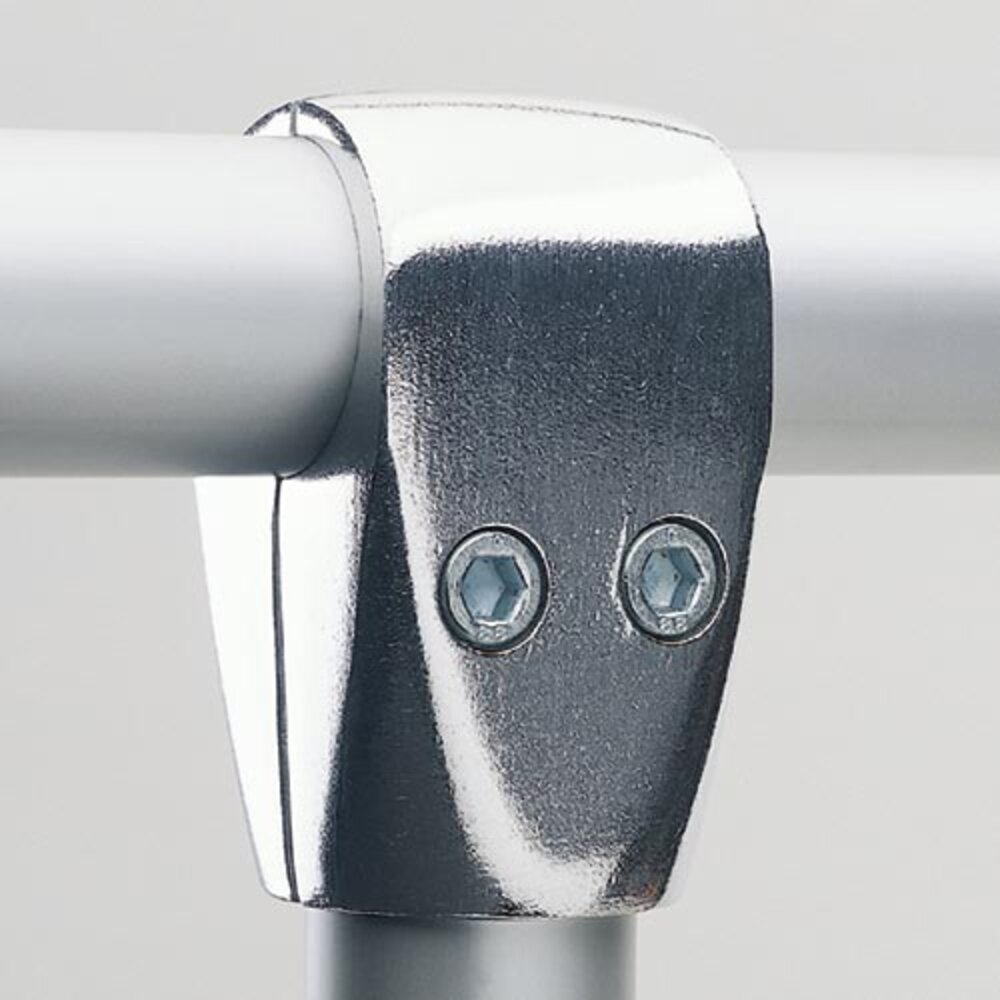

Barrel polished * -1.0

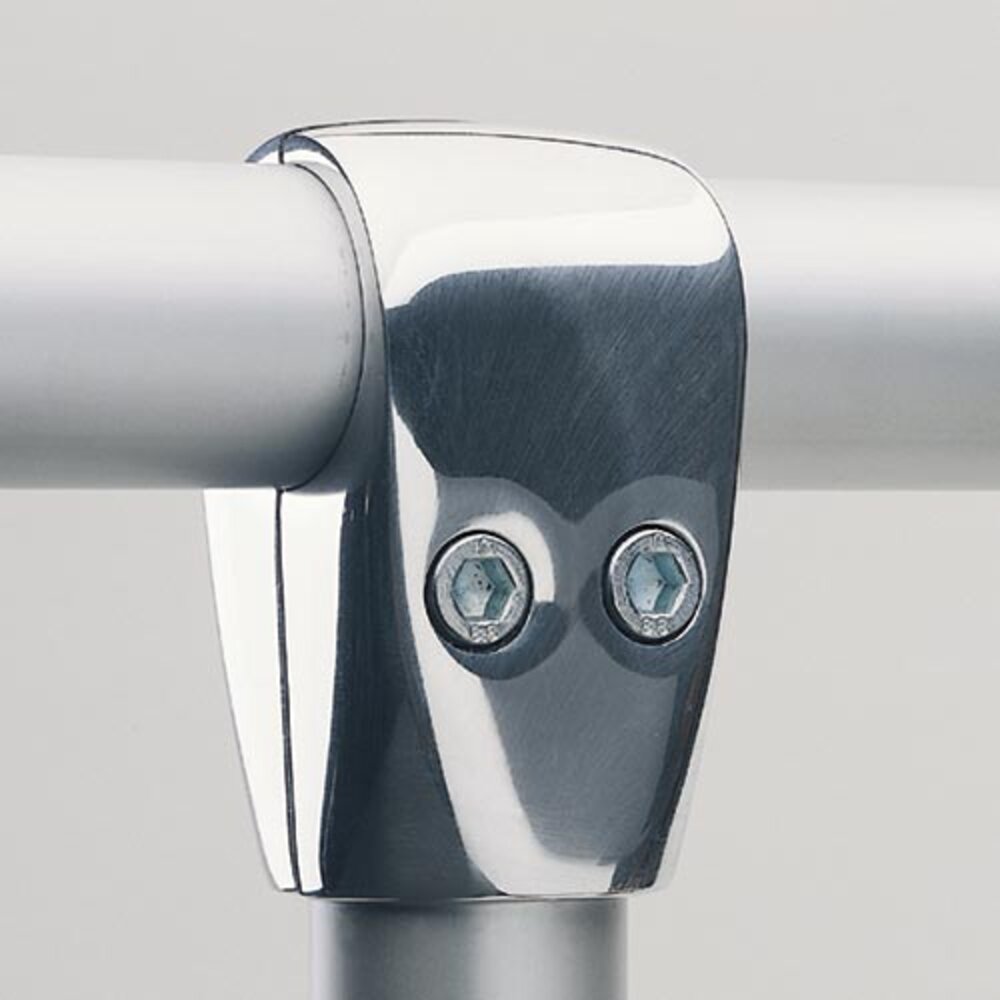

High-gloss polished * -1.1

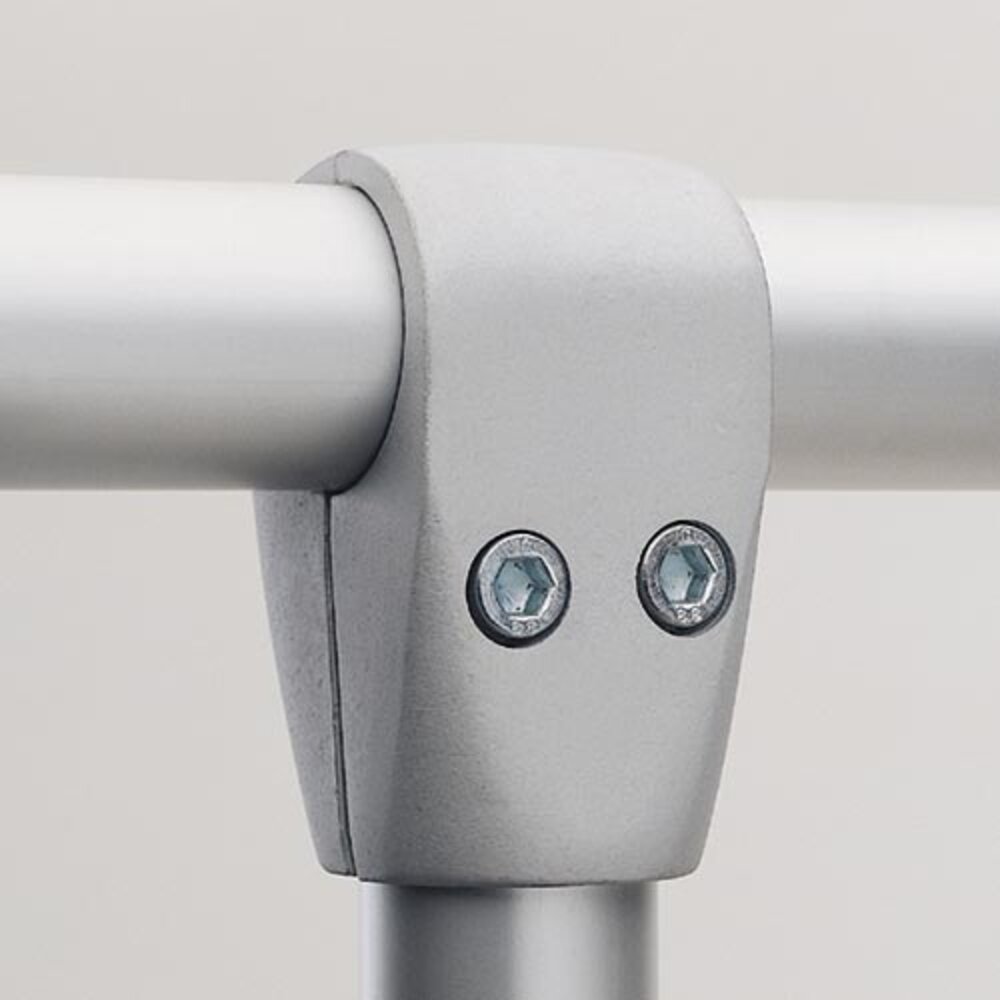

Vibratory ground, dull finished
and technically anodized
* -2.0

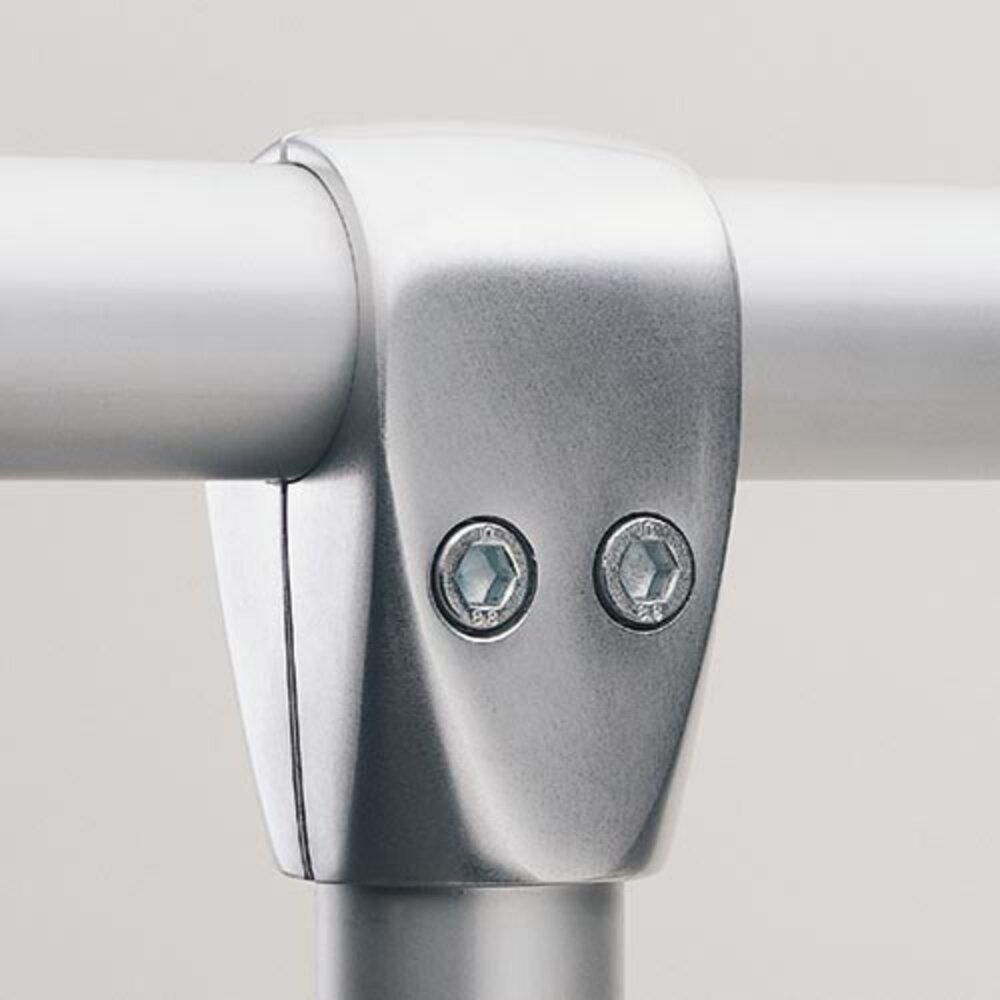

Polished and anodized * -2.1

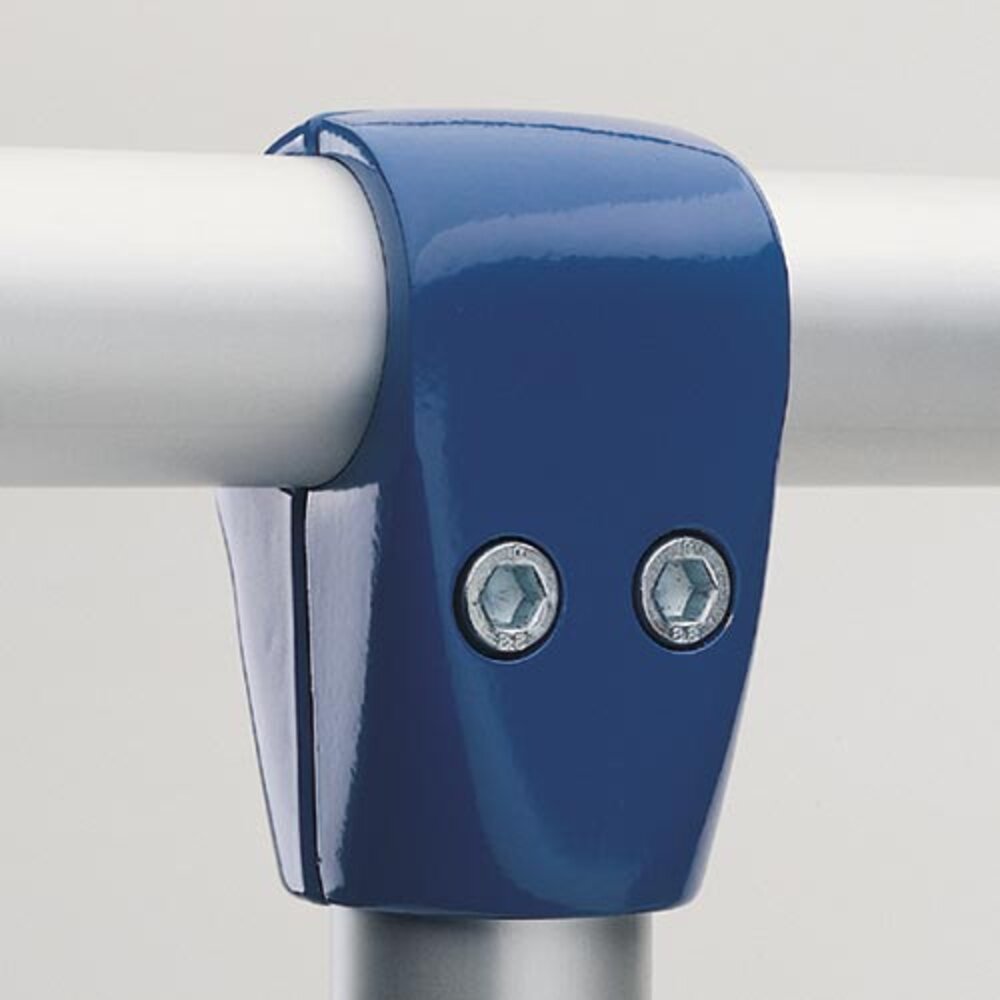

Powder-coatings * -3-RAL…

Variants

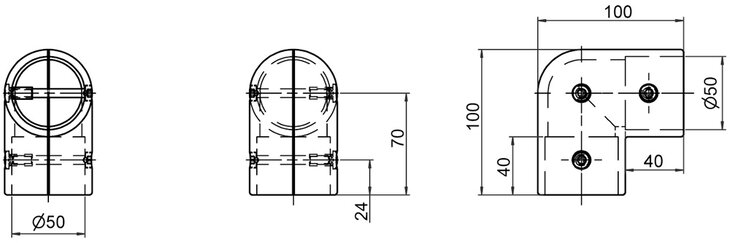

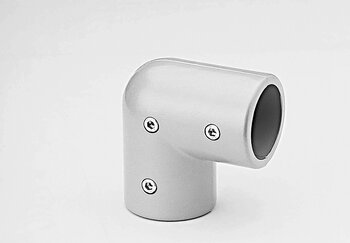

Angle connector 90°, 2-shell

Bestell-Nr.: RV-5545 Request

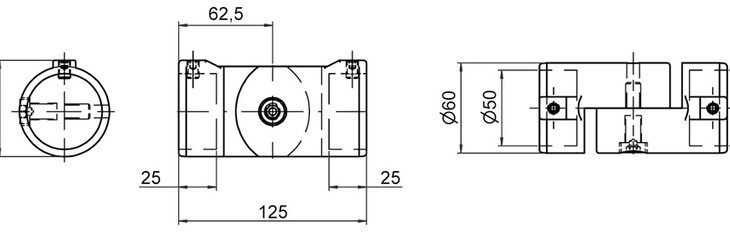

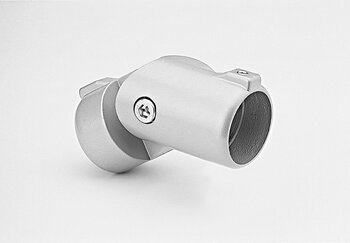

Angle joint connector, 1-shell

Bestell-Nr.: RV-5514 Request

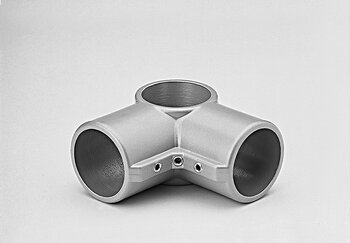

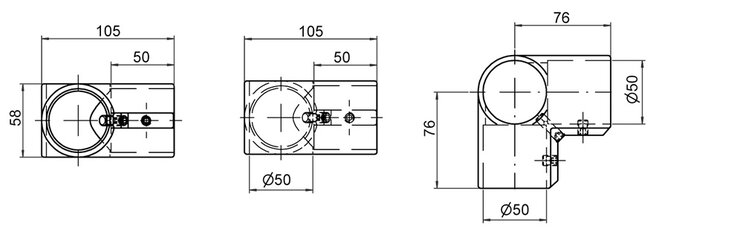

Corner connector 90°, 1-shell

Bestell-Nr.: RV-5542 Request

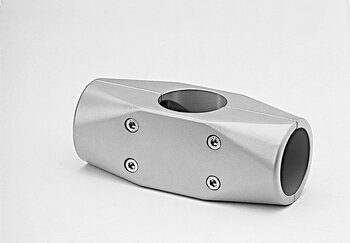

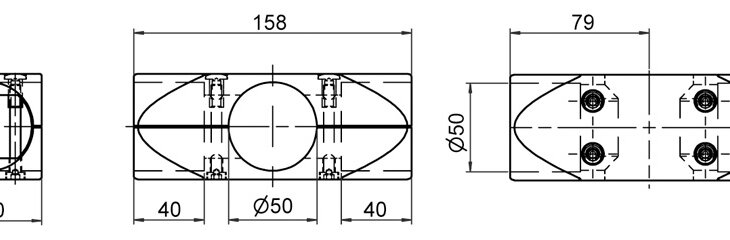

Cross-joint connector, 2-shell

Bestell-Nr.: RV-5541 Request

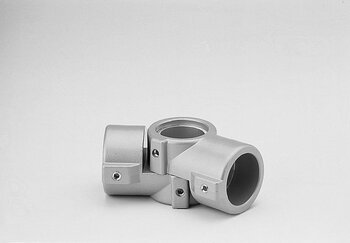

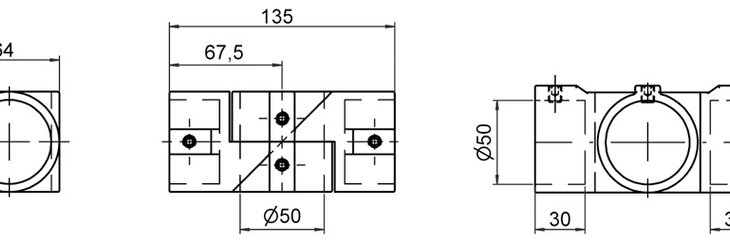

Cross-joint connector, 1-shell

Bestell-Nr.: RV-5522a Request

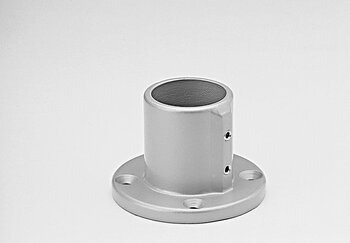

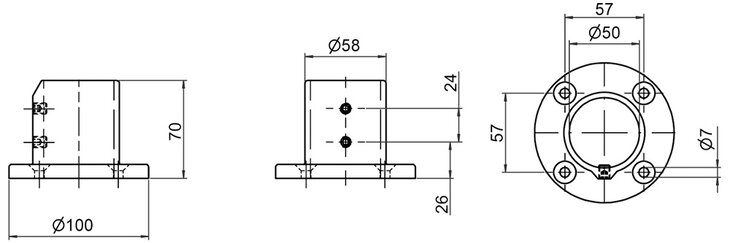

Ground bearing, 1-shell

Bestell-Nr.: RV-5543 Request

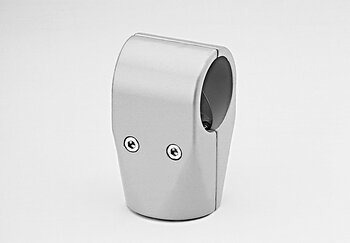

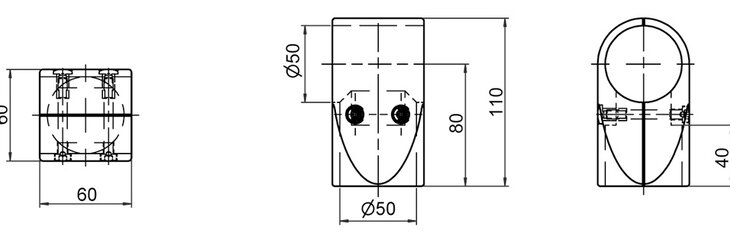

T-connector, 2-shell

Bestell-Nr.: RV-5540 Request

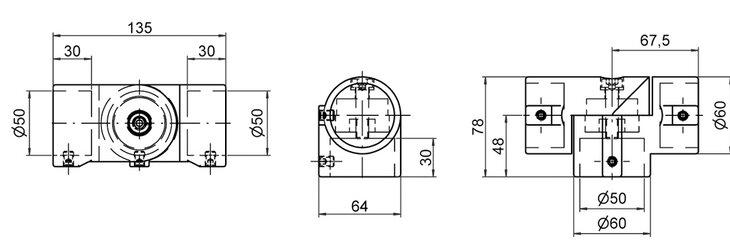

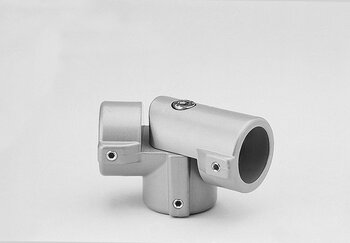

T-joint connector, 1-shell

Bestell-Nr.: RV-5521a Request

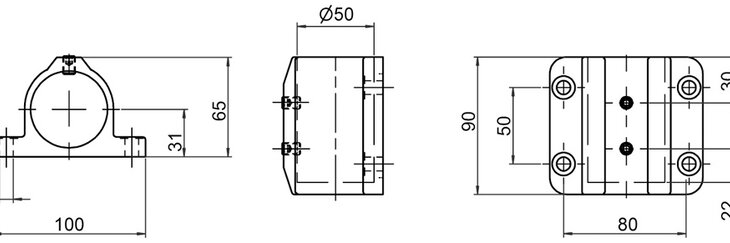

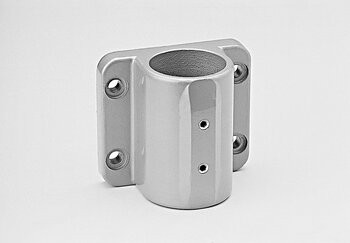

Wall bearing, 1-shell

Bestell-Nr.: RV-5544 Request

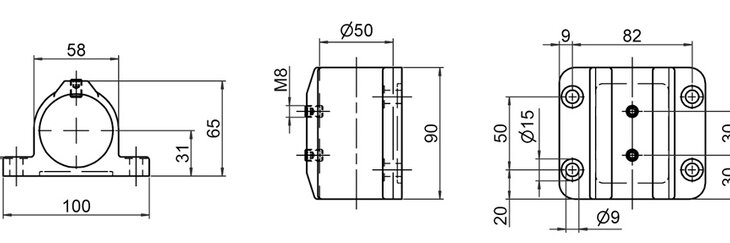

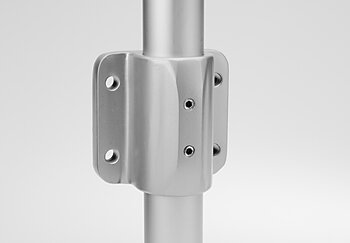

Wall bearing, 1-shell

Bestell-Nr.: RV-5544a Request
