ø 40 mm - Rohde AG | Aluminum, stainless steel and plastic handles

Tube Connector for ø40

Tube Connectors RV

Material:
Chill casting of high-grade aluminium alloy in accordance with DIN 1725.

Supply range:
The tube connectors are supplied with bolts and sockets nuts of stainless steel (material no. 1.4301).

Special versions:
Other diameters on request.

Colour/surface Surface-code
Rough state * -0.0
Barrel polished * -1.0
High-gloss polished * -1.1
Vibratory ground, dull finished
and technically anodized		 * -2.0
Polished and anodized * -2.1
Powder-coatings * -3-RAL…

Variants

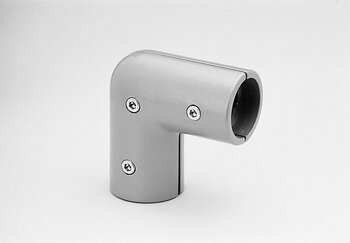

Angle connector 90°, 2-shell

Bestell-Nr.: RV-1045 Request

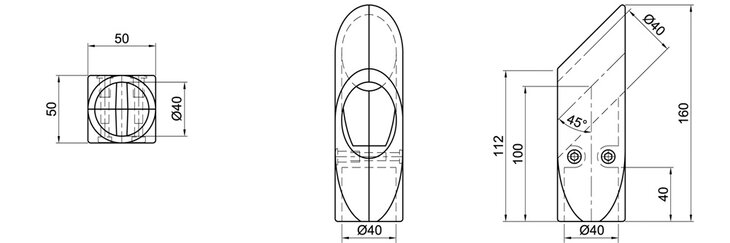

Angle connector 45° / 135°, 2-shell

Bestell-Nr.: RV-1049 Request

Angle connector 45° / 135°, 2-shell

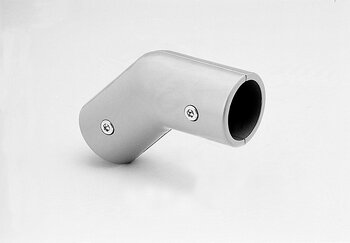

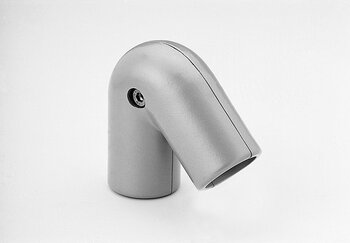

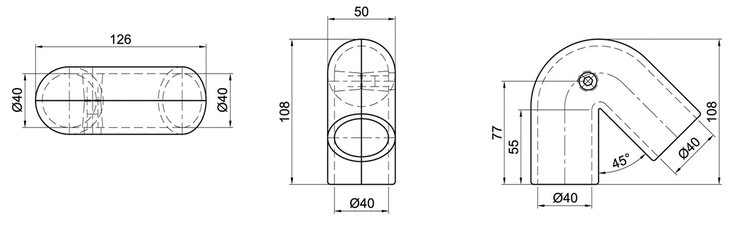

Gray metallic two-layered angle tube connector with an adjustable screw, bent at an angle between 45 and 135 degrees
Bestell-Nr.: RV-1062 Request

Angle connector 90°, 1-shell

Bestell-Nr.: RV-2063a Request

Angle connector 30° / 150°, 1-shell

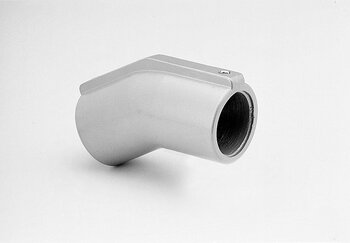

Metal angled tube connector with one open cylindrical end and a screw on top, positioned against a plain white background

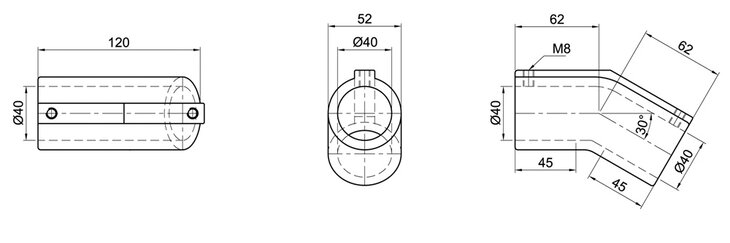

Technical drawing showing front, side, and top views of a single-layer tube connector with a 30° angle and diameter 40 mm, including detailed measurements and screw hole locations.
Bestell-Nr.: RV-2103a Request

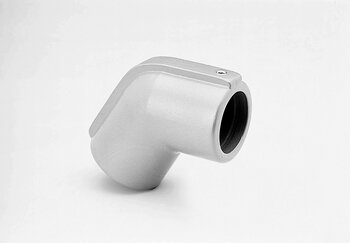

Angle connector 60° / 120°, 1-shell

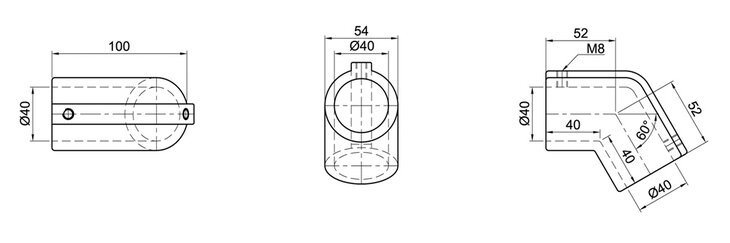

Technical drawing showing three views of a single-layer angled tube connector with 60 and 120 degree angles, diameter 40 mm, and M8 thread details.
Bestell-Nr.: RV-2104a Request

Angle connector 90°, 2-shell

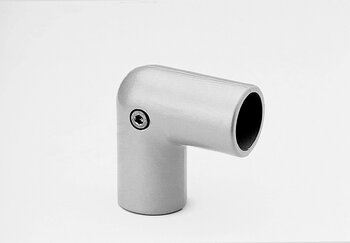

90-degree angled two-layer tube connector with hex socket screw
Bestell-Nr.: RV-3041 Request

Angle connector 64°, 2-shell

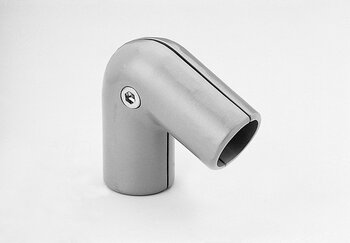

Metallic 64-degree angled two-part tube connector with hex screw and hollow open ends.
Bestell-Nr.: RV-3042 Request

Angle joint connector, 1-shell

Bestell-Nr.: RV-2114a Request

Angle joint connector, 1-shell

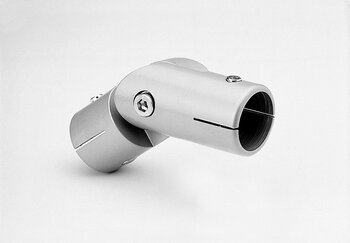

Metallic single-layer angled joint tube connector with screws and slots for tube fitting

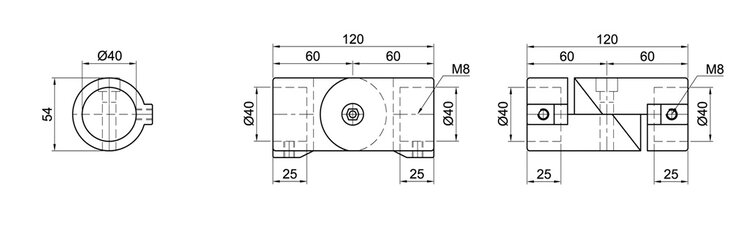

Technical drawing of a single-layer angled joint tube connector with circular cross-section, showing front, top, and side views with dimensions.

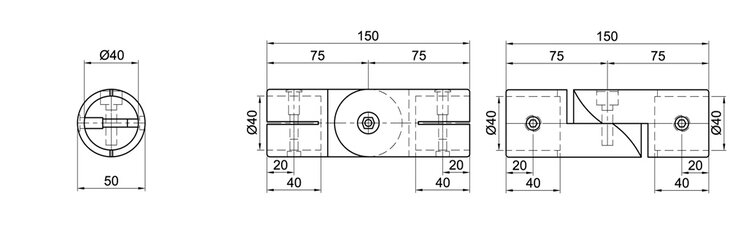

Bestell-Nr.: RV-2114b Request

Centre prop, 1-shell

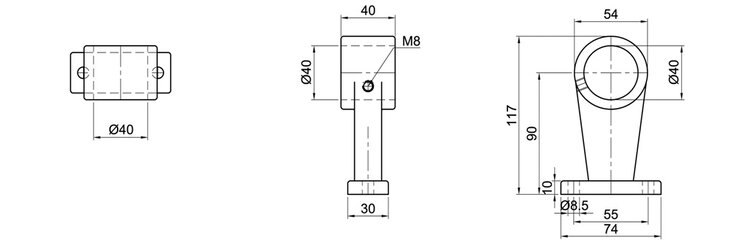

Bestell-Nr.: RV-1056 Request

Connection piece open, 1-shell

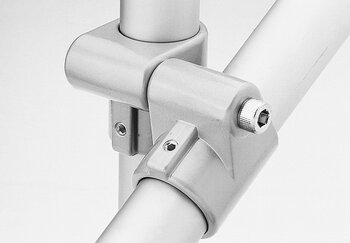

Close-up image showing a single-layer open tube connector securing three metal tubes with hexagonal socket screws
Technical drawing of a double open single-walled tube connector with dimensions and measurements
Bestell-Nr.: RV-2410b Request

Tube connector piece, 1-shell

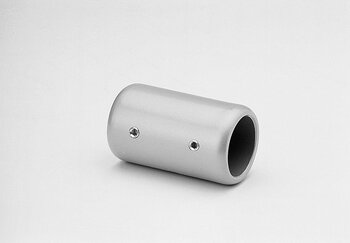

Silver cylindrical metal tube connector with two hexagonal screws on its side, placed on a white surface

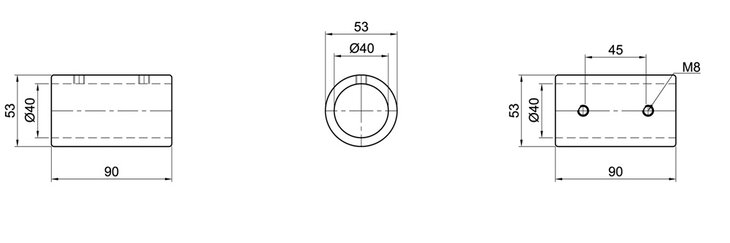

Technische Zeichnung eines zylindrischen Rohr-Verbindungsstücks mit Außenmaß 53 mm, Innenmaß 40 mm, Länge 90 mm und zwei M8-Bohrungen
Bestell-Nr.: RV-1030 Request

Corner connector 90°, open, 1-shell

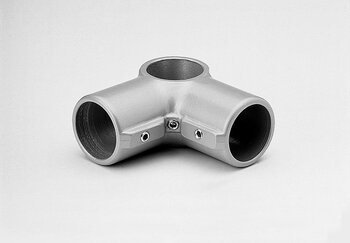

Metallic 90-degree corner tube connector with three open cylindrical ends and hexagon socket screws on the bend
Bestell-Nr.: RV-1042 Request

Corner connector 90°, open, 2-shell

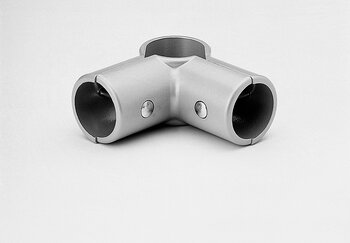

Bestell-Nr.: RV-1063a Request

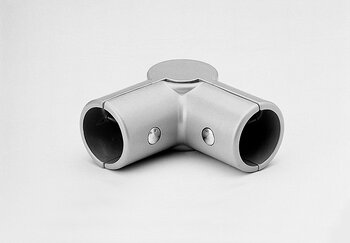

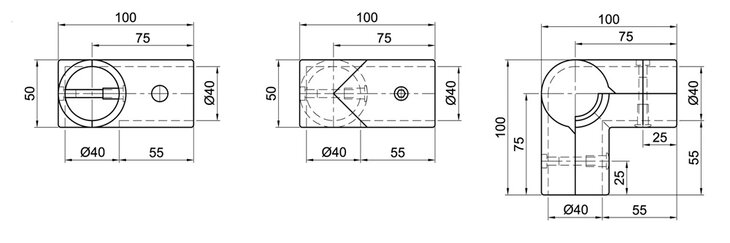

Corner connector 90°, Headpiece, 2-shell

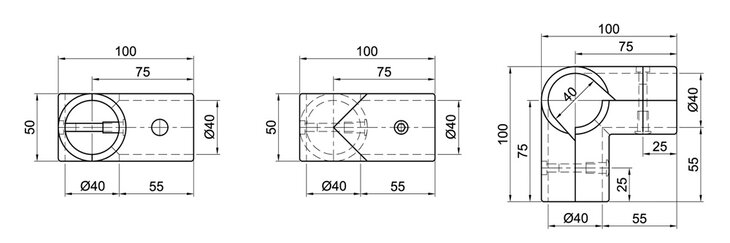

Technical drawing showing three views of a 90-degree corner connector head piece with two layers, dimensioned in millimeters
Bestell-Nr.: RV-1063c Request

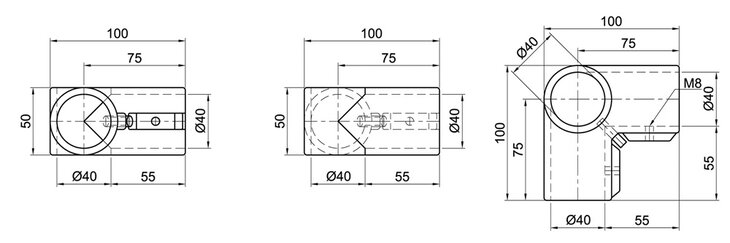

Corner connector 90°, open, 1-shell

Metallic 90-degree open elbow tube connector with three cylindrical openings and screws

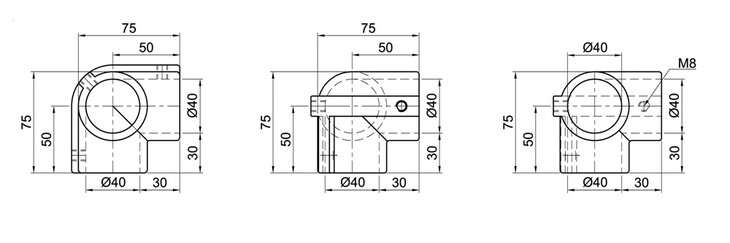

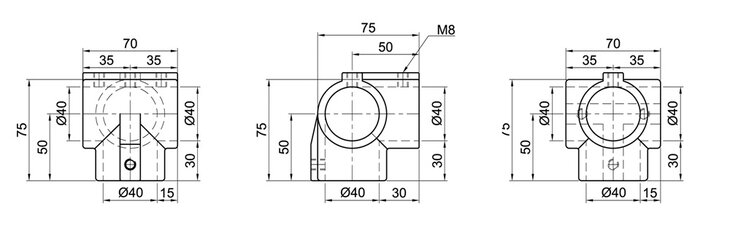

Technical line drawing showing front, side, and top views of a 90 degree open corner tube connector with marked dimensions including 40 mm diameter and M8 screw hole
Bestell-Nr.: RV-2066a Request

Corner connector 90°, Headpiece, 1-shell

Bestell-Nr.: RV-2071a Request

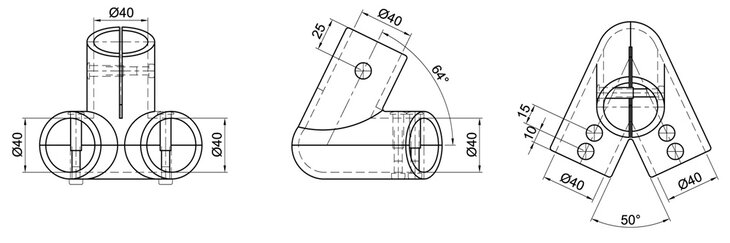

Corner connector 64°, Headpiece, 2-shell

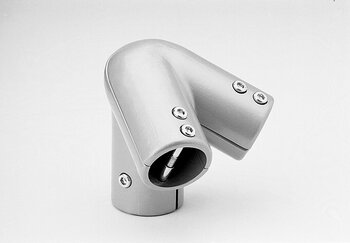

Silver metal tube connector with two hollow cylindrical ends joined at a 64-degree angle, showing screws and a bolt inside
Bestell-Nr.: RV-3043 Request

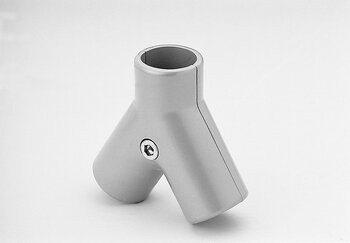

Corner connector, 2-shell

Gray two-layer corner tube connector with hexagonal screw on a white background
Bestell-Nr.: RV-3048 Request

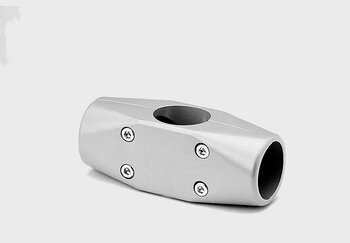

Cross-joint connector, 2-shell

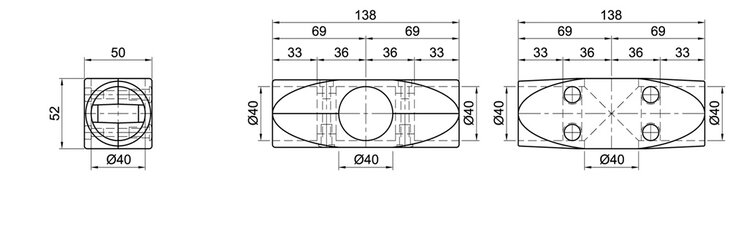

Bestell-Nr.: RV-1041 Request

Cross-joint connector 45° / 135°, 2-shell

Metallic two-layer tube connector joining three cylindrical tubes at 45 and 135 degrees with screws
Technical drawing showing front, top, and side views of a dual-layer cross connector with specified dimensions and 45 degree angle marking.

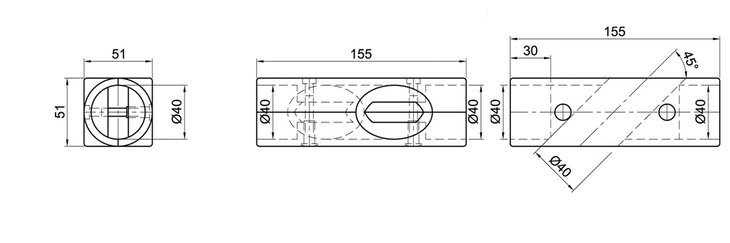

Bestell-Nr.: RV-1050 Request

Cross-joint connector, 1-shell

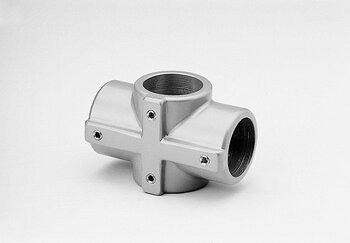

Bestell-Nr.: RV-2065a Request

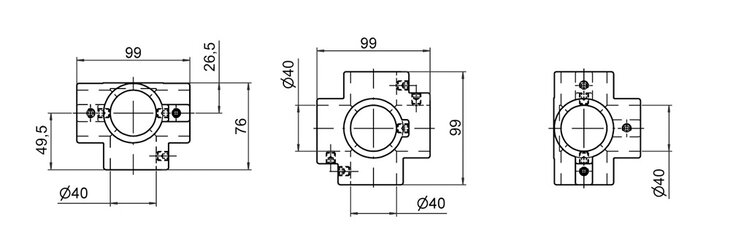

Cross-connector 5 end, 1-shell

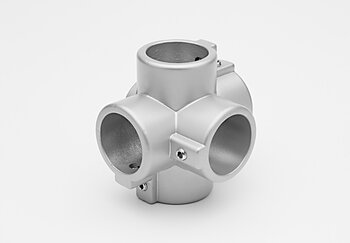

Bestell-Nr.: RV-3051 Request

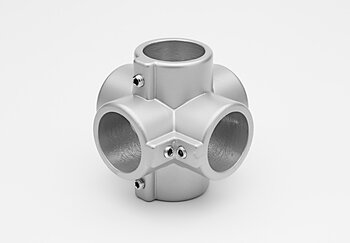

Cross-connector 6 end, 1-shell

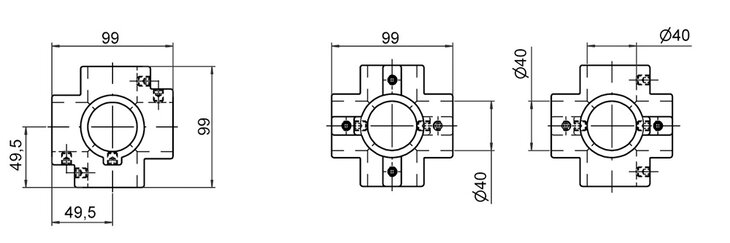

Technical drawing showing front, top, and side views of a six-way single-layer tube cross connector with dimensions marked
Bestell-Nr.: RV-3052 Request

Cross-joint connector, 1-shell

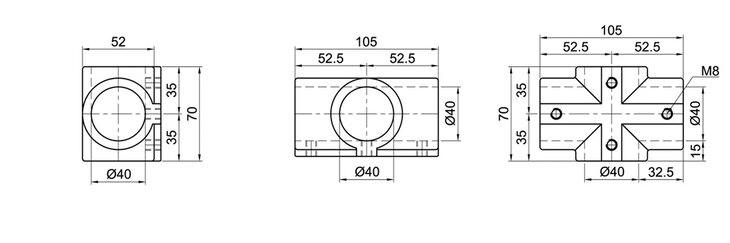

Technical drawing with front, side, and top views of a single-shell cross joint tube connector with three 40 mm diameter tube slots and mounting hole dimensions
Bestell-Nr.: RV-1058 Request

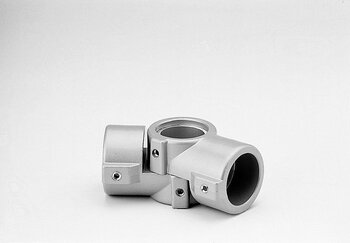

Cross-joint connector, 1-shell

Bestell-Nr.: RV-2122a Request

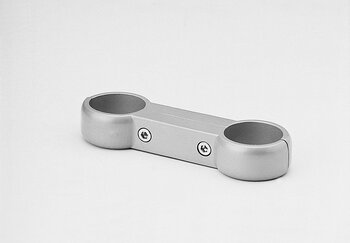

Double clamp, 2-shell

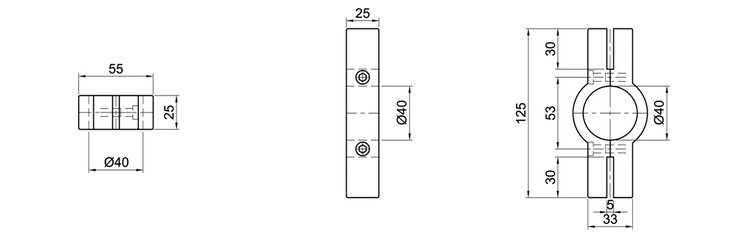

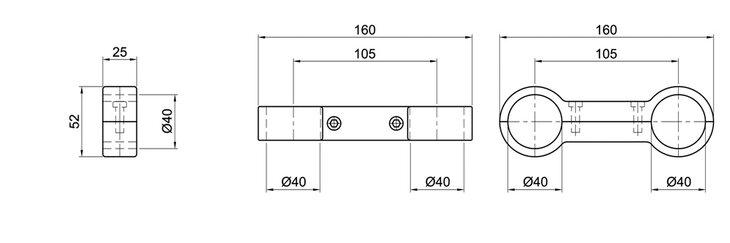

Technical drawing of a double clamp with two circular segments, showing dimensions and three different views: side, front, and top.
Bestell-Nr.: RV-1052 Request

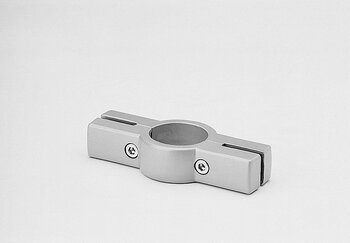

Double-glass holder, 2 shell

Metallic double glass holder with two screws and slotted grooves on a plain background
Bestell-Nr.: RV-3045a Request

End prop, 1-shell

Bestell-Nr.: RV-1055 Request

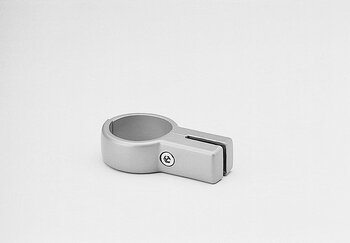

Glass holder, 2-shell

Bestell-Nr.: RV-3045 Request

Ground bearing, 1-shell

Metallic single-sleeve floor bearing with cylindrical tube holder mounted on circular base featuring four screw holes and two hex screws on the side

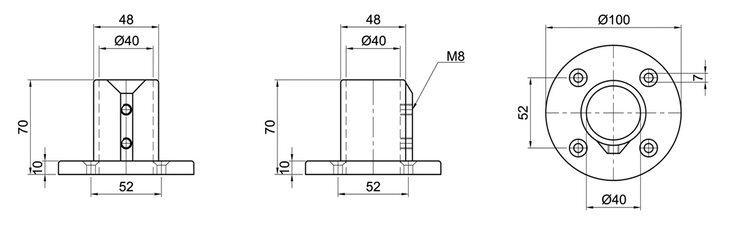

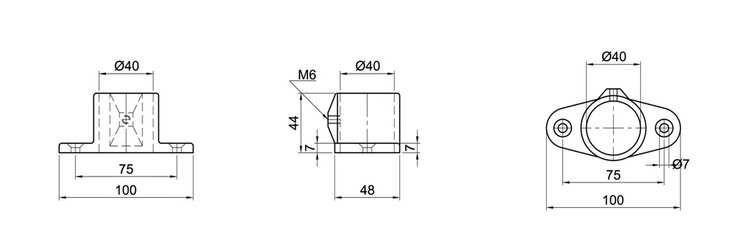

Technical drawing of a single-layer floor bearing tube connector showing front, side, and top views with dimensions and details
Bestell-Nr.: RV-1043 Request

Ground bearing, 1-shell

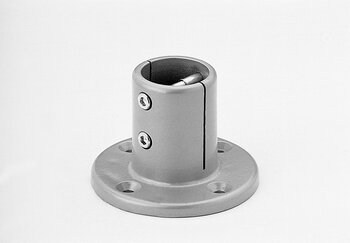

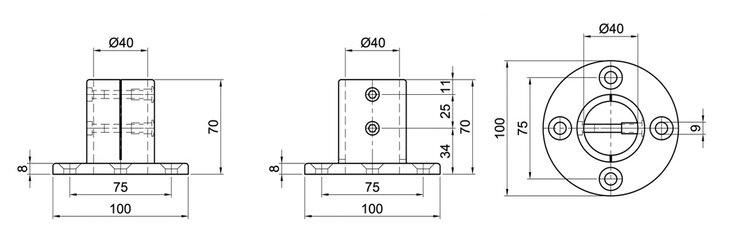

Bestell-Nr.: RV-1043a Request

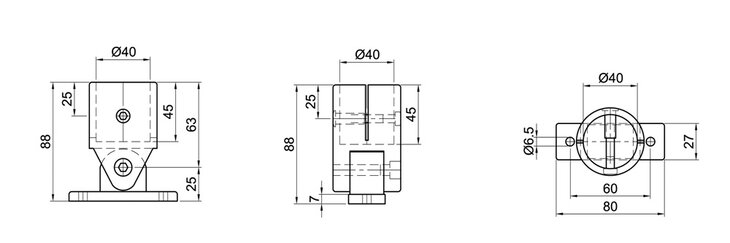

Ground bearing variable, 1-shell

Bestell-Nr.: RV-1047 Request

Ground bearing, 1-shell

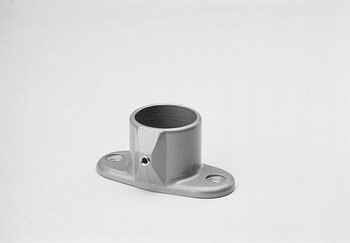

Bestell-Nr.: RV-1048 Request

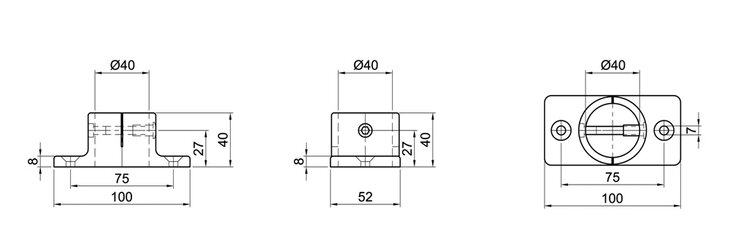

Ground bearing, 1-shell

Technical drawing of a single-layer floor bearing for a 40 mm diameter tube showing front, side, and top views with dimensions
Bestell-Nr.: RV-1691c Request

Ground bearing, 1-shell

Bestell-Nr.: RV-2067a Request

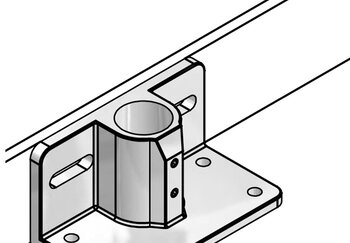

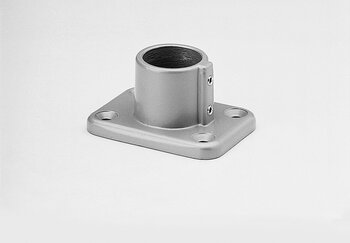

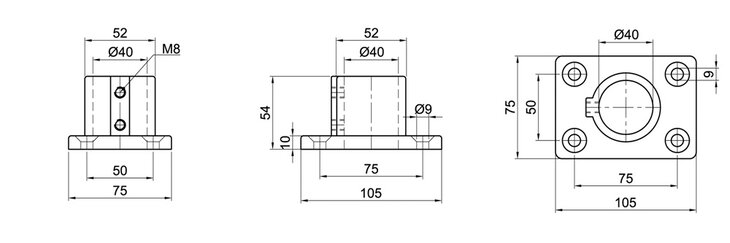

Ground bearing, 1-shell for baseboard

Metal floor bearing bracket with cylindrical holder and flat base plate mounted on skirting board
Bestell-Nr.: RV-2068a Request

Ground- wall bearing, 1-shell

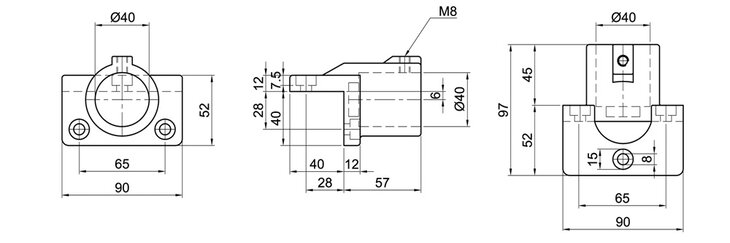

Bestell-Nr.: RV-2132a Request

Plate holder, 2-shell

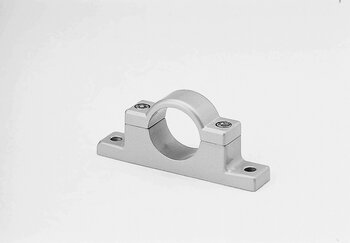

Silver two-piece metal plate holder with circular opening and screws on a white background

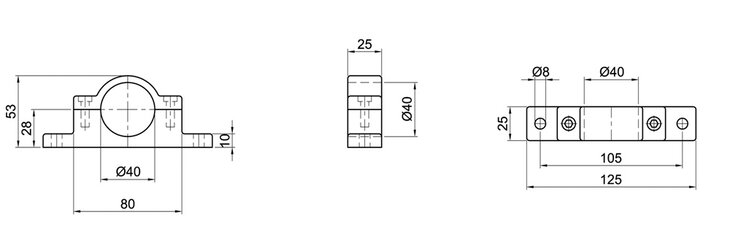

Technical drawing showing front, side, and top views of a two-part plate holder with detailed measurements and dimensions.
Bestell-Nr.: RV-1059 Request

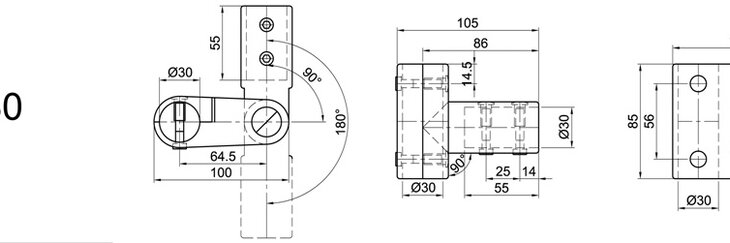

Swivel bearing 40 x 40 option of 90° or 180°

Bestell-Nr.: RV-2230 Request

T-connector, 2-shell

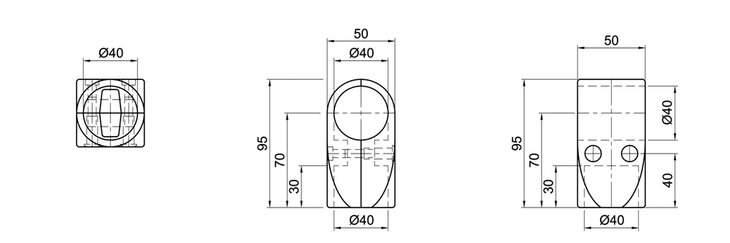

Technical drawing showing front, top, and side views of a 2-layer T-shaped tube connector with dimensions including diameter 40 mm, width 50 mm, and height 95 mm.
Bestell-Nr.: RV-1040 Request

T-connector 45° / 135°, 2-shell

Bestell-Nr.: RV-1046 Request

T-connector 45° / 135°, 2-shell

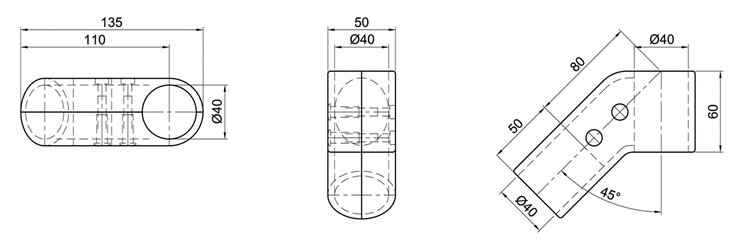

Technical drawing showing three views of a two-layer T-connector tube with 45° and 135° angles, including dimensions such as outer diameter 40 mm and lengths of 135 mm, 50 mm, and 80 mm.
Bestell-Nr.: RV-1890c Request

T-connector, 1-shell

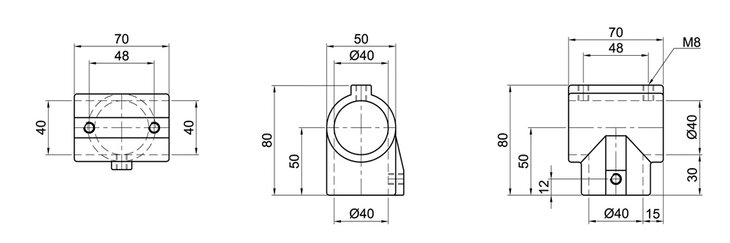

Bestell-Nr.: RV-2064a Request

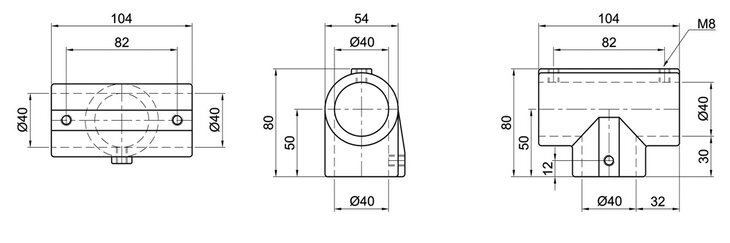

T-connector, 1-shell

Bestell-Nr.: RV-2064b Request

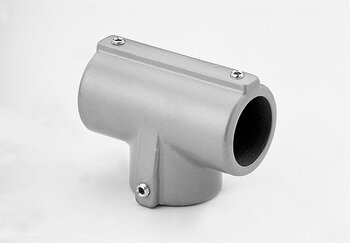

T-joint connector, 2-shell

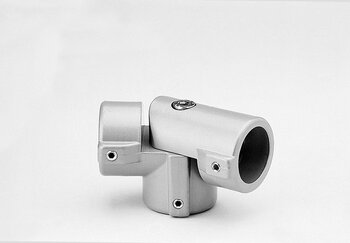

Grey T-shaped metal tube connector with two parallel tubes and screws on a white background
Bestell-Nr.: RV-1057 Request

T-joint connector, 1-shell

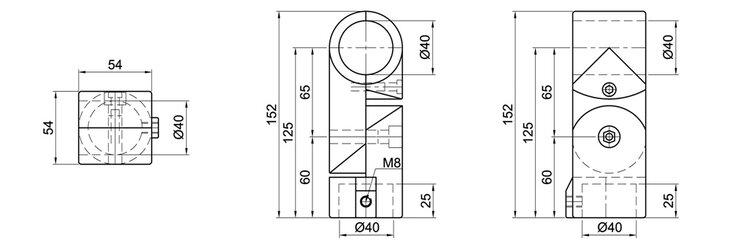

Technical drawing showing front, side, and top views of a single-layer T-joint tube connector with dimensions and measurements in millimeters.
Bestell-Nr.: RV-2121a Request

Tube holder-W, 1-shell

Bestell-Nr.: RV-2110a Request

Tube holder-W, headpiece, 1-shell

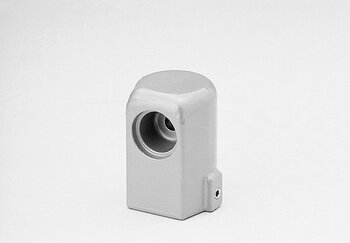

Bestell-Nr.: RV-2111a Request

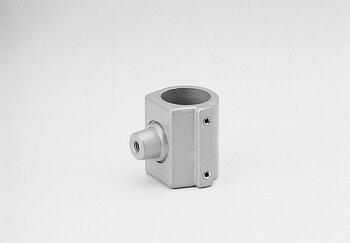

Tube holder-S, 1-shell

Bestell-Nr.: RV-2112a Request

Tube holder-S, headpiece, 1-shell

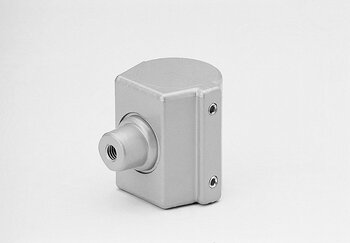

Silver metallic tube connector part with cylindrical threaded protrusion and two screw holes on the adjacent surface on a white background
Bestell-Nr.: RV-2113a Request

Wall bearing, 1-shell

Technical drawing showing front, side, and top views of a single-layer wall bearing tube connector with detailed measurements and dimensions
Bestell-Nr.: RV-1044 Request

Wall bearing, 1-shell

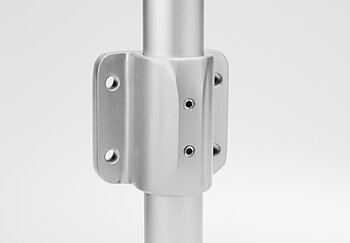

Bestell-Nr.: RV-1044a Request

Wall bearing, 1-shell

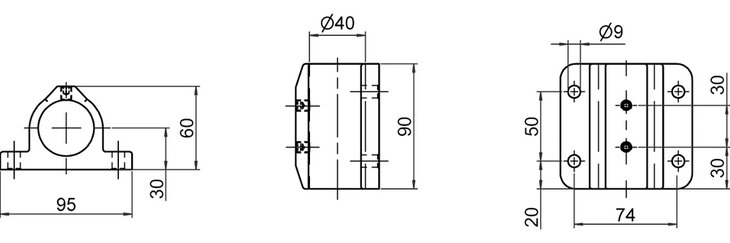

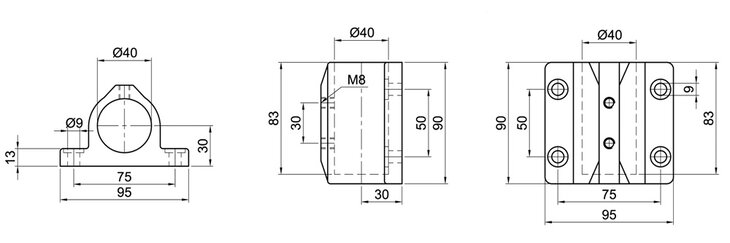

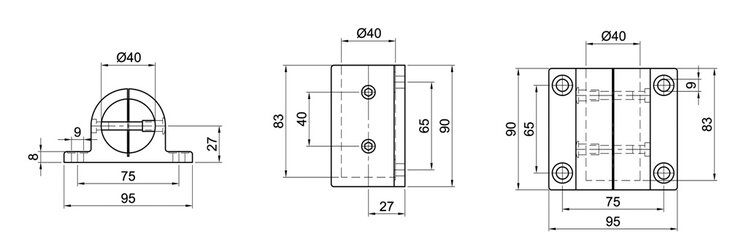

Technical schematic of single-layer wall bearing with dimensions Ø40 mm tube, base plate 95x90 mm, and mounting hole positions.
Bestell-Nr.: RV-1044b Request

Wall bearing, 1-shell

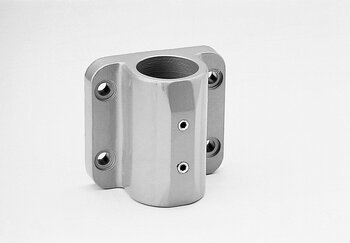

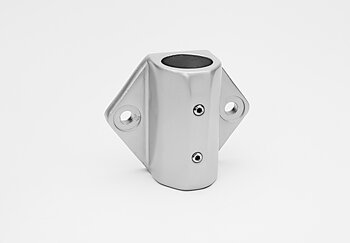

Single-channel wall bracket made of polished metal with two mounting holes and two screws, cylindrical opening on top

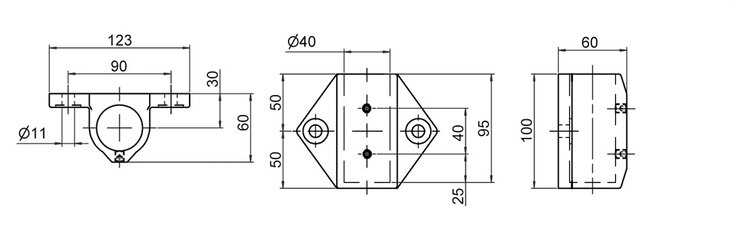

Technical drawing showing front, top, and side views of a single-ring Wandlager tube connector with dimensions and mounting hole measurements.
Bestell-Nr.: RV-1044c Request

Wall bearing, 1-shell

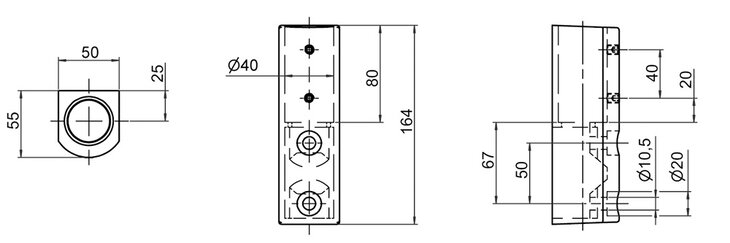

Technical engineering drawing of a single-shell wall bearing showing front, top, and side views with detailed measurements.

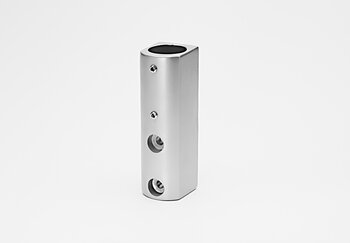

Bestell-Nr.: RV-1044e Request

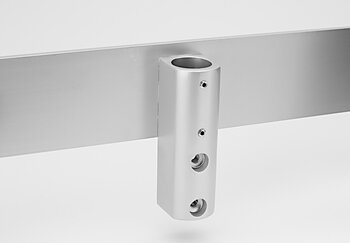

Wall bearing, 1-shell for baseboard

Bestell-Nr.: RV-1044f Request

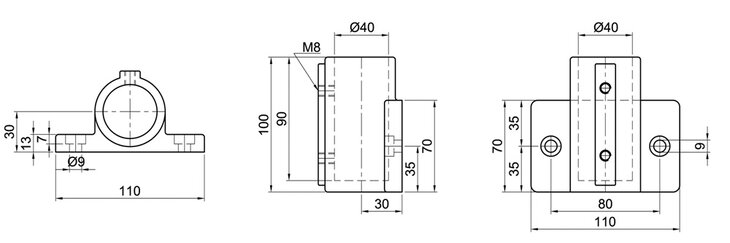

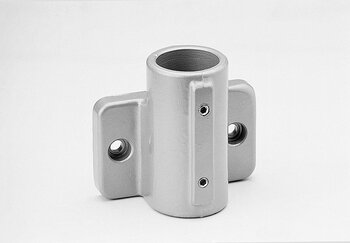

Wall bearing, 1-shell

Single-shell metal wall bearing tube connector with cylindrical holder and two mounting plates with screw holes on white background
Technical blueprint of a single-shelled wall bearing showing front, side, and top views with precise measurements and specifications.
Bestell-Nr.: RV-2123a Request

Ground- wall bearing, 1-shell

Bestell-Nr.: RV-2132a Request

Wall bearing- corner fastening, 1-shell

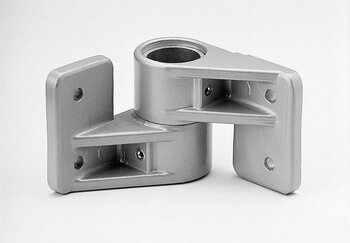

Metallic wall bracket corner mount with two flat mounting bases and a cylindrical joint

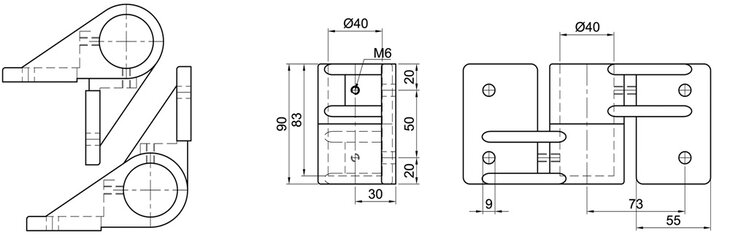

Technical drawing showing front, side, and top views of a single-layer wall bearing corner bracket with dimensions and mounting hole specifications.
Bestell-Nr.: RV-3050 Request
