Home>> Handles>>Handles TL.A3

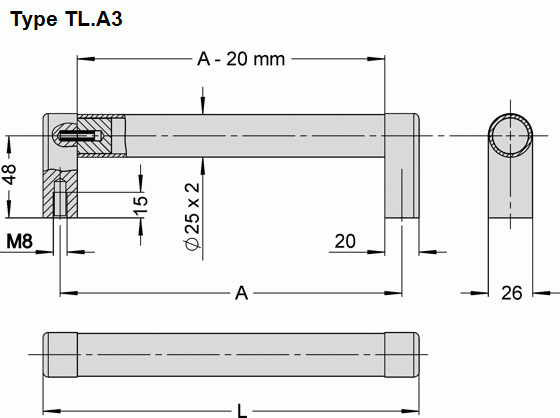

Handles TL.A3

Material and surface:
Tube ø 25x2 mm of stainless steel, material no. 1.4301; fine ground. Handle shanks of extruded aluminium AlMgSi 0.5; natural colour anodized with dull bright finish. Clamping sleeves of stainless steel.

Note:
For other versions see also type series A3.

Stress resistance:
min. 1000 N.

show more show less
Unit of measure
A L Order-No.
A 200 L 220 Order-No. TL.A3-25.200.37 3D CAD
A 250 L 270 Order-No. TL.A3-25.250.37 3D CAD
A 300 L 320 Order-No. TL.A3-25.300.37 3D CAD
A 400 L 420 Order-No. TL.A3-25.400.37 3D CAD
