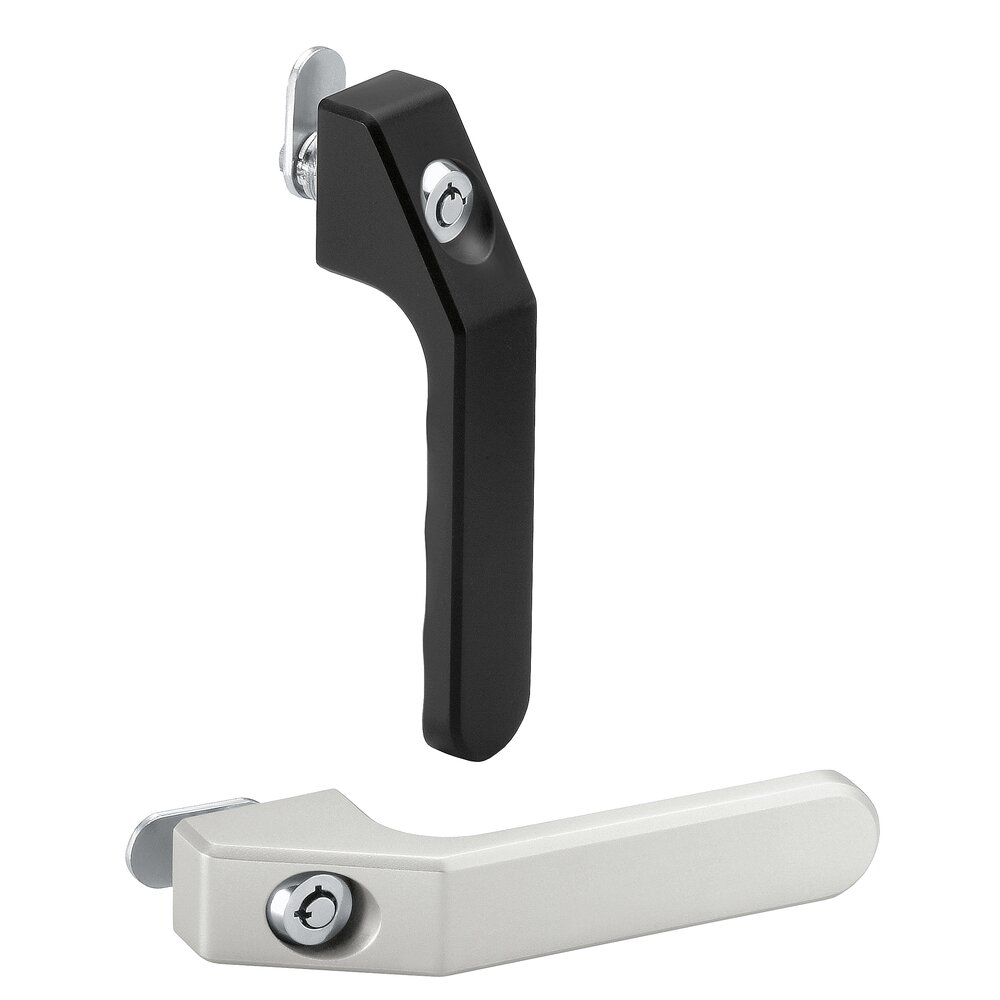

Functional handles FG9
Handle lever for fastening on machines and technical installations.
Material and surface:
Aluminium AlMgSi 0.5; vibratory ground, natural colour or black anodized with dull bright finish.
Design advantages:
Mechanical lock for fastening incl. cylindrical pin ø4x10 mm for anti-twist protection. Suitable for wall thicknesses up to 5 mm and clamping ranges up to max. 19.9 mm.
Version FG9-30
|
Unit of measure
|
|
|---|---|
|
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
Version FG9-30.00
|
Unit of measure
|
|||
|---|---|---|---|
| Version |
Fasteners
Order-No. |
Hooked latches left
Order-No. |
Hooked latches right
Order-No. |
| Version |
Fasteners
Order-No. |
Hooked latches left
Order-No. |
Hooked latches right
Order-No. |
|---|---|---|---|
| Version K 0,0 |
Fasteners
Order-No. FG9-30.000.V |
Hooked latches left
Order-No. FG9-30.000.H |
Hooked latches right
Order-No. — |
| Version K 3,2 |
Fasteners
Order-No. FG9-30.003.V |
Hooked latches left
Order-No. FG9-30.003.HL |
Hooked latches right
Order-No. FG9-30.003.HR |
| Version K 6,4 |
Fasteners
Order-No. FG9-30.006.V |
Hooked latches left
Order-No. FG9-30.006.HL |
Hooked latches right
Order-No. FG9-30.006.HR |
positive: A = 13,5 | K = + 0 | H = 13,5
negative: A = 13,5 | K = - 0 | H = 13,5
