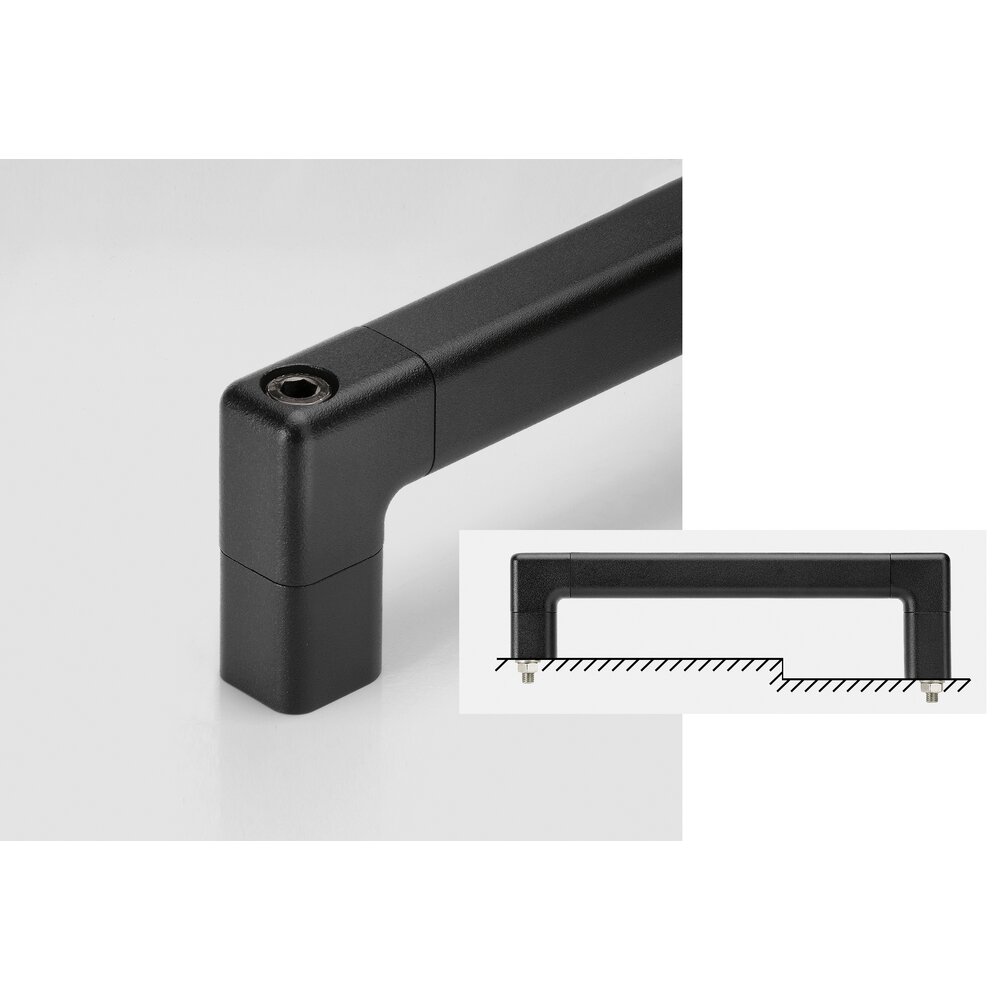

Close-up of black aluminium handle grip with chill cast aluminium shank and hexagon socket screw with inset diagram showing side view mounting with variable shank heights

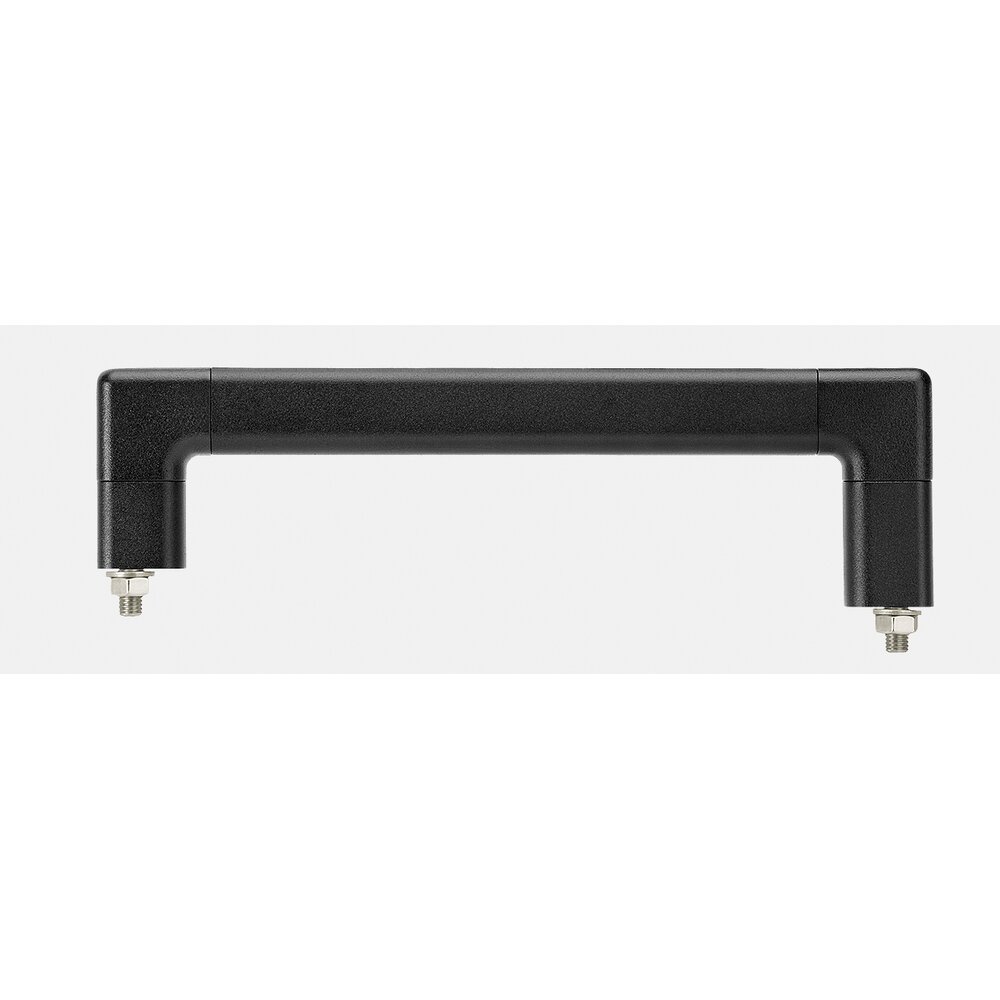

Black aluminium handle grip with rectangular shape and metal threaded shanks on each end, viewed from the side

Handles HV

Fit together machine handle system with variable shankheights and solid design.

Material and surface:
Handle shanks and shank extension of chill cast aluminium Aluminium AlSiCu 12. Handle ledge of profiled aluminium AlMgSi 0.5. Black powder coated, half-matt with fine structure.

Design advantages:
Variable lengths as well as handle heights of both shanks at different dimensions of screw fittings possible.

Scope of supply:
At front-assembly of the standard version including stainless steel hexagon socket screws M10x90 DIN 912, nuts DIN 934 and washers DIN 125.

Stress resistance:
min. 800 N.

show more show less
Technical line drawing of a Type HV-F aluminium handle with dimensions and labeled parts including connection ledge, shank ledge, adaptor, and M10 x 90 screw.
Technical line drawing of a Type HV-F aluminium handle with dimensions and labeled parts including connection ledge, shank ledge, adaptor, and M10 x 90 screw.
Unit of measure
Description
A L H Type HV-F front attachment
Order-No. 		Type HV-R attachment from behind
Order-No.
A L H Type HV-F front attachment
Order-No. 		Type HV-R attachment from behind
Order-No.
A 300 L 330 H 80 Type HV-F front attachment
Order-No. HV-30.F300.080.080.54 3D+CAD 		Type HV-R attachment from behind
Order-No. HV-30.R300.080.080.54 3D+CAD
A 400 L 430 H 80 Type HV-F front attachment
Order-No. HV-30.F400.080.080.54 3D+CAD 		Type HV-R attachment from behind
Order-No. HV-30.R400.080.080.54 3D+CAD
A 500 L 530 H 80 Type HV-F front attachment
Order-No. HV-30.F500.080.080.54 3D+CAD 		Type HV-R attachment from behind
Order-No. HV-30.R500.080.080.54 3D+CAD
A 600 L 630 H 80 Type HV-F front attachment
Order-No. HV-30.F600.080.080.54 3D+CAD 		Type HV-R attachment from behind
Order-No. HV-30.R600.080.080.54 3D+CAD
A 700 L 730 H 80 Type HV-F front attachment
Order-No. HV-30.F700.080.080.54 3D+CAD 		Type HV-R attachment from behind
Order-No. HV-30.R700.080.080.54 3D+CAD

Special versions

Please insert the neccessary bore clearance A and the desired heigths H into the order number (minimum height = 70 mm).

Order example:

handle for front attachment index = F*
bore clearance A = 355 mm
shank height 1 H = 110 mm
shank height 2 H = 90 mm
Order no. HV-30.F355.110.090.54

* Note: at attachment from behind, index = R
