Functional handles FG16-01, FG16-04

Material and surface:
Handle shanks made of high strength polyamide PA6, black with fine structure. Handle ledge made of lathed PVC black.

Function elements:
FG16-01:
Push button (change-over contact)
2 LEDs.

FG16-04:
Emergency-stop (2 NC contacts)
Push button (change-over contact)
2 LEDs

FG16-00:
Basic handle, as FG16-01 and FG16-04, but without switch elements as counterhandle.

Connection:
8-pole or 12-pole connectorn positioned at the tubular axle of the handle ledge in the handle shank. Coupling with 10m readymade cable available as accessory.

Protection class:
IP 54 with coupling screwed on.

Note:
With connection cable other push button assignment or other handle lengths on request.

show more show less
  • handle lengths customized
  • button assignment according to customer requirements
  • button / LED colors according to customer specifications
  • further connection possibilities
  • labeling possible
  • further color versions
show more show less

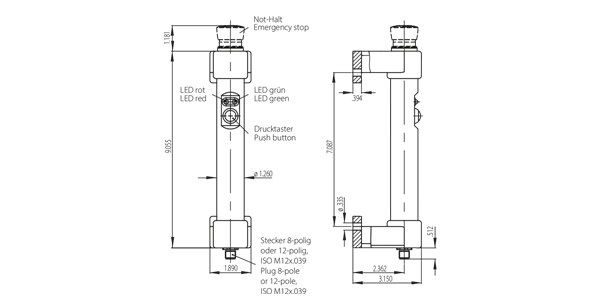

Technical schematic of a handle with emergency stop button, push button and LED indicators, showing front and side views with dimensions and connector details.
Technical drawing showing front and side views of FG16 handle with emergency stop, push button, red and green LEDs, plug connector, and dimensional measurements
Unit of measure
Product Type Description Order-No.
Product Type Description Order-No.
Product Type FG16-00 Description Counter handle without function Order-No. FG16-00.180.84 3D+CAD
Product Type FG16-01S Description 1 push button and 2 LEDs Order-No. FG16-01S.180.84 3D+CAD
Product Type FG16-04S Description 1 pushbutton, emergency stop and 2 LEDs Order-No. FG16-04S.180.84 3D+CAD
Handle accessories
Length Coupling 8-pole (M12 x 1)
Order-No. 		12-pole (M12 x 1)
Order-No.
Length Coupling 8-pole (M12 x 1)
Order-No. 		12-pole (M12 x 1)
Order-No.
Length 10 m Coupling angled 8-pole (M12 x 1)
Order-No. FZ-KS.W08.10 		12-pole (M12 x 1)
Order-No. FZ-KS.W12.10
Length 10 m Coupling straight / axial 8-pole (M12 x 1)
Order-No. FZ-KS.G08.10 		12-pole (M12 x 1)
Order-No. FZ-KS.G12.10

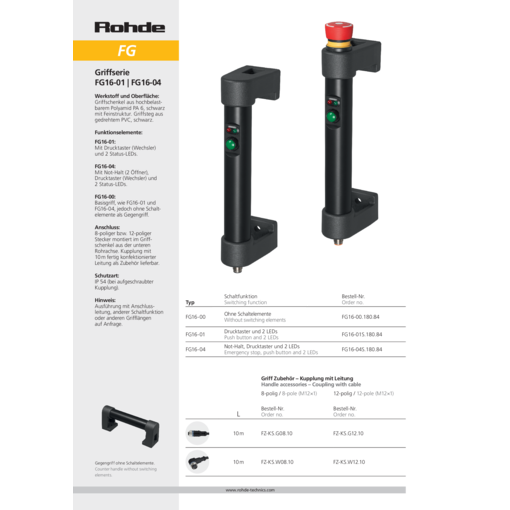

Tabular technical data showing specifications and electrical diagrams for FG16-01 and FG16-04 functional handles including emergency stop, push button, LED descriptions, and connector pinouts.
