Handles U5

Material and surface:

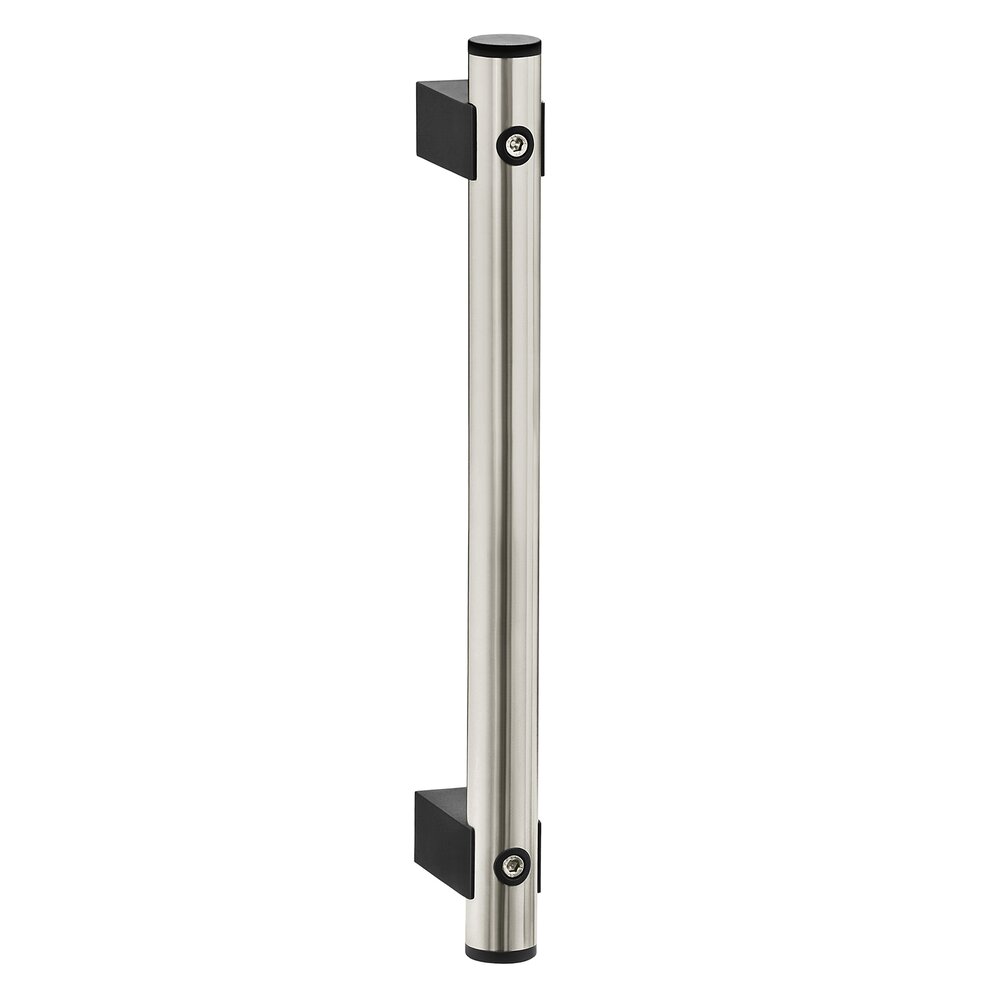

Tubes of ø30x1.5 mm aluminium AlMgSi 0.5; natural colour anodized or black powdercoated with fine structure. Alternatively, tube made of stainless steel, material no. 1.4301; fine ground.

Type U5-30.F
For front mounting by cylinder head socket screws M6x85 DIN 912, nuts DIN 934 and washers DIN 125 made of stainless steel (included in scope of supply). Tube holders and tube caps made of polyamide PA6, glass ball reinforced, black, half-matt with fine structure.

Type U5-30.R
For mounting from behind by galvanized screw down insert made of steel.

Note:
Any desired handle lengths on request.

Stress resistance:
min. 1000 N.

show more show less

Version F

Unit of measure
Type
A L Anodizing version natural-coloured
Order-No.
Polished stainless steel
Order-No.
Aluminum powder coated black
Order-No.
A L Anodizing version natural-coloured
Order-No.
Polished stainless steel
Order-No.
Aluminum powder coated black
Order-No.
A 200 L 280 Anodizing version natural-coloured
Order-No.
U5-30.F200.01 3D CAD
Polished stainless steel
Order-No.
U5-30.F200.37 3D CAD
Aluminum powder coated black
Order-No.
U5-30.F200.54 3D CAD
A 250 L 330 Anodizing version natural-coloured
Order-No.
U5-30.F250.01 3D CAD
Polished stainless steel
Order-No.
U5-30.F250.37 3D CAD
Aluminum powder coated black
Order-No.
U5-30.F250.54 3D CAD
A 300 L 380 Anodizing version natural-coloured
Order-No.
U5-30.F300.01 3D CAD
Polished stainless steel
Order-No.
U5-30.F300.37 3D CAD
Aluminum powder coated black
Order-No.
U5-30.F300.54 3D CAD
A 350 L 430 Anodizing version natural-coloured
Order-No.
U5-30.F350.01 3D CAD
Polished stainless steel
Order-No.
U5-30.F350.37 3D CAD
Aluminum powder coated black
Order-No.
U5-30.F350.54 3D CAD
A 400 L 480 Anodizing version natural-coloured
Order-No.
U5-30.F400.01 3D CAD
Polished stainless steel
Order-No.
U5-30.F400.37 3D CAD
Aluminum powder coated black
Order-No.
U5-30.F400.54 3D CAD
A 500 L 580 Anodizing version natural-coloured
Order-No.
U5-30.F500.01 3D CAD
Polished stainless steel
Order-No.
U5-30.F500.37 3D CAD
Aluminum powder coated black
Order-No.
U5-30.F500.54 3D CAD

Version R

Unit of measure
Type
A L Anodizing version natural-coloured
Order-No.
Polished stainless steel
Order-No.
Aluminum powder coated black
Order-No.
A L Anodizing version natural-coloured
Order-No.
Polished stainless steel
Order-No.
Aluminum powder coated black
Order-No.
A 200 L 280 Anodizing version natural-coloured
Order-No.
U5-30.R200.01 3D CAD
Polished stainless steel
Order-No.
U5-30.R200.37 3D CAD
Aluminum powder coated black
Order-No.
U5-30.R200.54 3D CAD
A 250 L 330 Anodizing version natural-coloured
Order-No.
U5-30.R250.01 3D CAD
Polished stainless steel
Order-No.
U5-30.R250.37 3D CAD
Aluminum powder coated black
Order-No.
U5-30.R250.54 3D CAD
A 300 L 380 Anodizing version natural-coloured
Order-No.
U5-30.R300.01 3D CAD
Polished stainless steel
Order-No.
U5-30.R300.37 3D CAD
Aluminum powder coated black
Order-No.
U5-30.R300.54 3D CAD
A 350 L 430 Anodizing version natural-coloured
Order-No.
U5-30.R350.01 3D CAD
Polished stainless steel
Order-No.
U5-30.R350.37 3D CAD
Aluminum powder coated black
Order-No.
U5-30.R350.54 3D CAD
A 400 L 480 Anodizing version natural-coloured
Order-No.
U5-30.R400.01 3D CAD
Polished stainless steel
Order-No.
U5-30.R400.37 3D CAD
Aluminum powder coated black
Order-No.
U5-30.R400.54 3D CAD
A 500 L 580 Anodizing version natural-coloured
Order-No.
U5-30.R500.01 3D CAD
Polished stainless steel
Order-No.
U5-30.R500.37 3D CAD
Aluminum powder coated black
Order-No.
U5-30.R500.54 3D CAD
