Functional handles FG13-LL
Functional handles FG13-LL

Functional handles FG13-LL

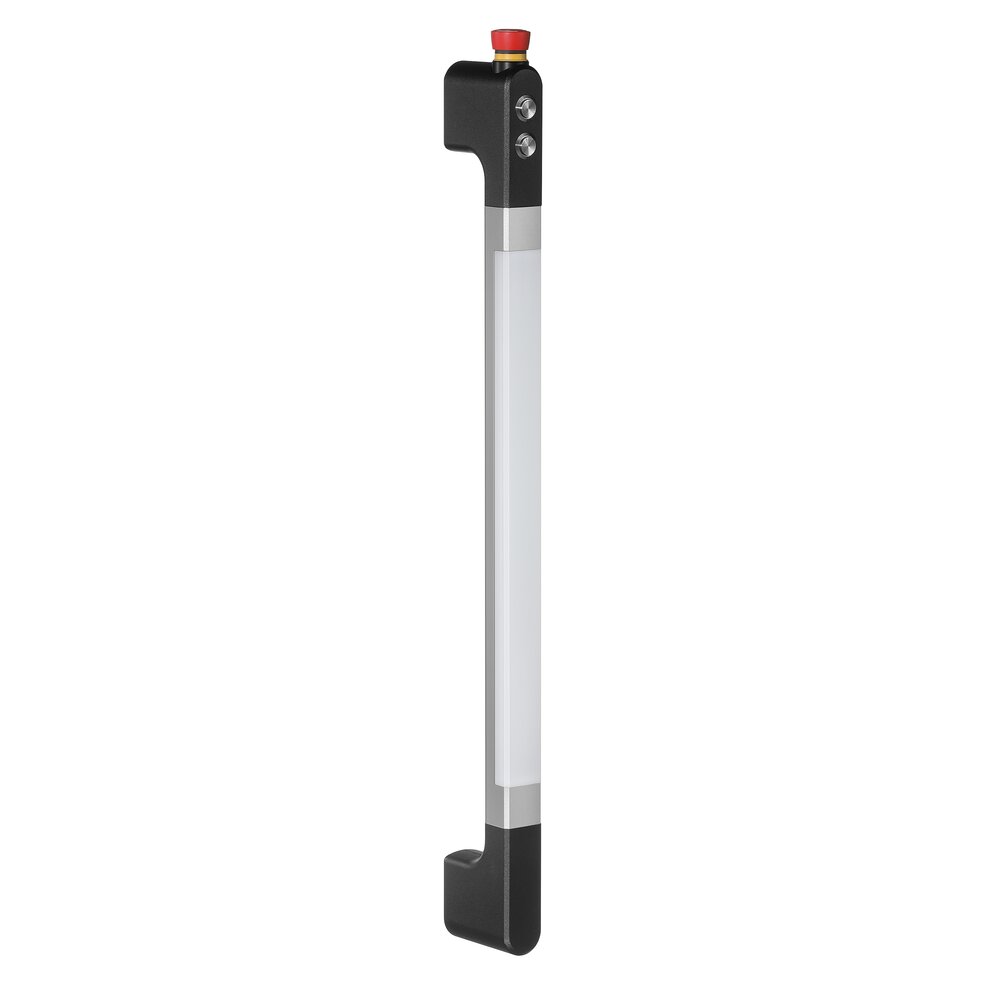

Functional handle with a handle ledge illuminatable over a large area. The LED colours red, yellow and green can be used to display the current operating status of the machine for example.

Material and surface:
Handle shank of aluminium chill casting AlSiCu 12, black powder coated, half-matt with fine structure. Handle ledge made of extruded hollow aluminium section AlMgSi 0.5; glass ball blasted and anodized in natural colour. Illuminatable plastic insert made of extruded, translucent PMMA.

Design features:
Pleasant feel thanks to the generously rounded handle ledge unaderside.

Function elements:

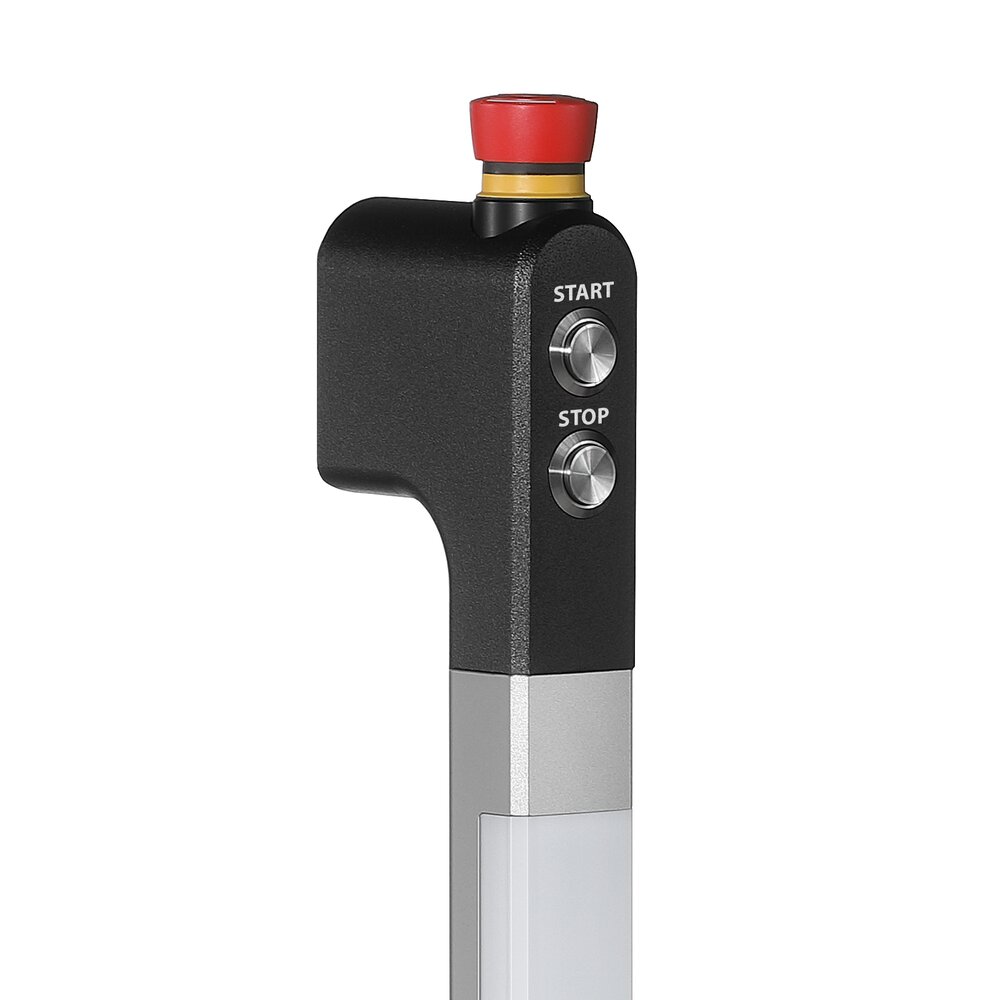

Two push buttons, as NO contacts.
Type FG13-LL15 additionally with emergency stop (two NC contacts).

Connection:
12-pin connector in the mounting surface of the handle shank.
Coupling with 10m readymade cable available as accessory.

Special designs:
Other handle lengths and switching element assignments, as well as white handle ledge lighting on request.

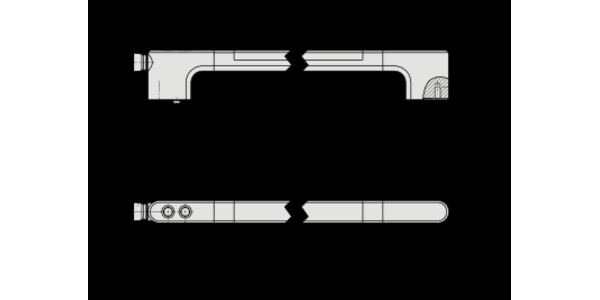

Technical data
Unit of measure
Product TypeDescriptionConnecting Order-No.
Product TypeFG13-LL12 Description2 push buttons ConnectingPlug Order-No. FG13-LL12.700.S11 3D+CAD
Product TypeFG13-LL15 Description2 push buttons and emergency stop ConnectingPlug Order-No. FG13-LL15.700.S11 3D+CAD
Zubehör
Handle accessories
LengthCoupling 12-pole (M12 × 1)
Order-No.
Length10 m Couplingangled 12-pole (M12 × 1)
Order-No.
FZ-KS.W12.10
Black cylindrical functional handle with a 12-pin connector and ergonomic rounding Length10 m Couplingstraight / axial 12-pole (M12 × 1)
Order-No.
FZ-KS.G12.10
Table illustrating technical specifications and wiring details for FG13-LH12 and FG13-LH15 functional handles, including pin configuration and electrical contact information.
