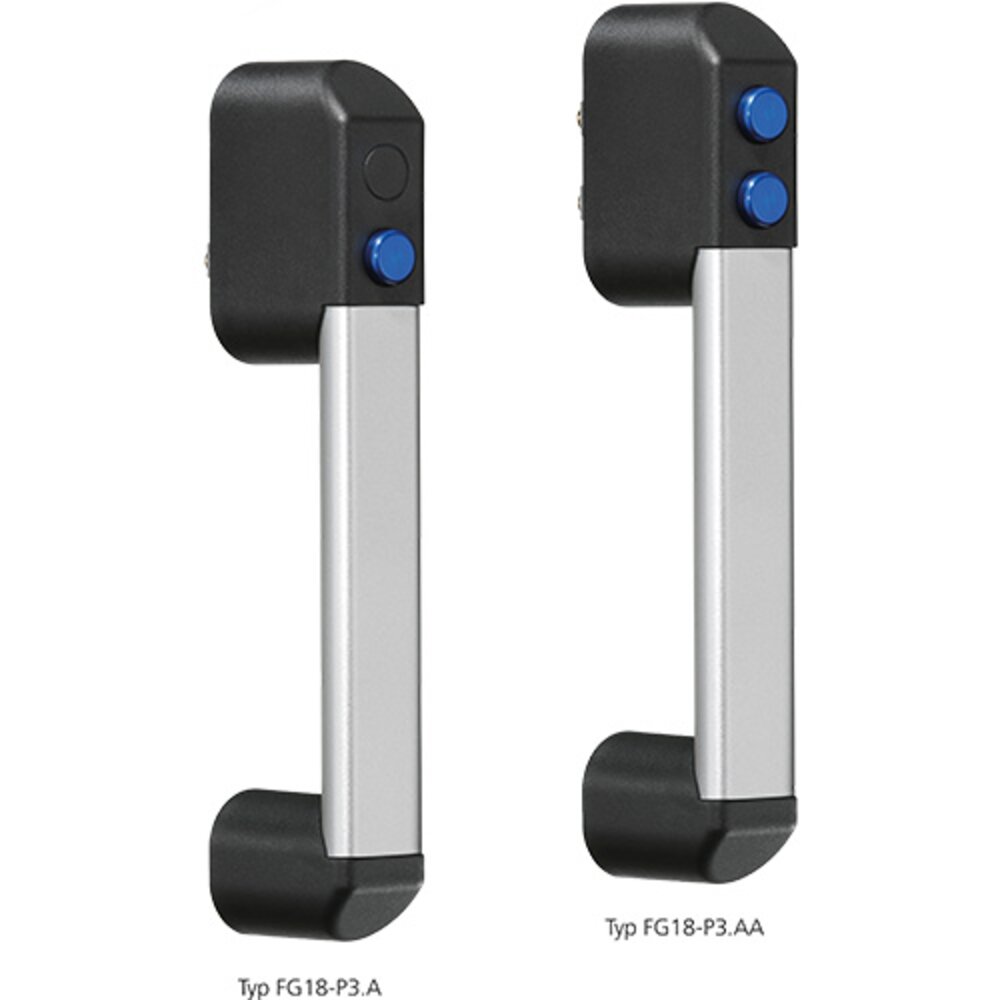

Handles FG18-P3

Compact handle for a variety of pneumatic applications.

Material and surface:
Handle shanks made of polyamide PA6, glass ball reinforced in black with fine structure. Connecting ledge made of profiled aluminum AlMgSi 0.5; glass ball blasted and natural anodized.

Function elements:
One or two mechanically operated 3/2-solenoid valves, with a robust metal housing.
V-A: Normally open with spring return.
V-B: Normally closed with spring return.

Connection:
Push In connector for Ø4 mm hose.

Note:
Other handle lengths on request.

show more show less
  • handle lengths customized
  • button colors according to customer specifications
  • further color versions
show more show less

Version with 1 valve

Unit of measure
Position Ventil 1 Order-No.
Position Ventil 1 Order-No.
Position Ventil 1 V-A Order-No. FG18-P3.A140.11 3D+CAD
Position Ventil 1 V-B Order-No. FG18-P3.B140.11 3D+CAD

Version with 2 valves

Unit of measure
Position Ventil 1 Position Ventil 2 Order-No.
Position Ventil 1 Position Ventil 2 Order-No.
Position Ventil 1 V-A Position Ventil 2 V-A Order-No. FG18-P3.AA140.11 3D+CAD
Position Ventil 1 V-A Position Ventil 2 V-B Order-No. FG18-P3.AB140.11 3D+CAD
Position Ventil 1 V-B Position Ventil 2 V-A Order-No. FG18-P3.BA140.11 3D+CAD
Position Ventil 1 V-B Position Ventil 2 V-B Order-No. FG18-P3.BB140.11 3D+CAD
