Functional handles FG16-LL01, FG16-LL04
Functional handles FG16-LL01, FG16-LL04

Functional handles FG16-LL01, FG16-LL04

Material and surface:

Handle shanks made of high strength polyamide PA6.

Function elements:

FG16-01:

Push button (change-over contact)

2 LEDs.

FG16-04:

Emergency-stop (2 NC contacts)

Push button (change-over contact)

2 LEDs

FG16-00:

Basic handle, as FG16-01 and FG16-04, but without switch elements as counterhandle.

Connection:

8-pole or 12-pole connectorn positioned at the tubular axle of the handle ledge in the handle shank. Coupling with 10m readymade cable available as accessory.

Protection class:

IP 54 with coupling screwed on.

Note:

With connection cable other push button assignment or other handle lengths on request.

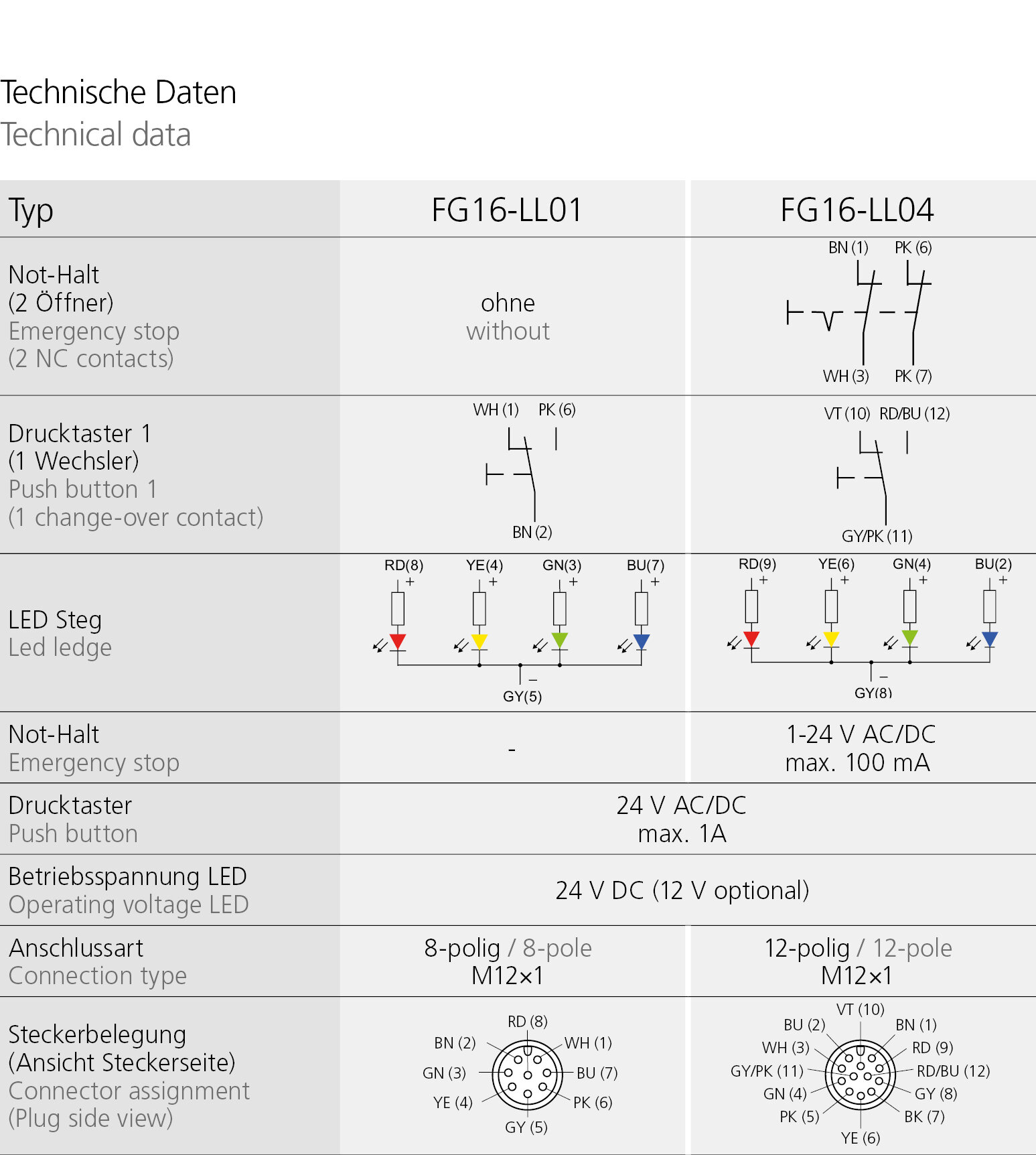

Technical data
Unit of measure
Product TypeDescription Order-No.
Product TypeFG16-LL01 DescriptionCounter handle without function Order-No. FG16-LL01.190.84 3D+CAD
Product TypeFG16-LL04 Description1 push button and 2 LEDs Order-No. FG16-LL04.190.84 3D+CAD
Zubehör
Handle accessories
LengthCoupling 8-pole (M12 x 1)
Order-No.
12-pole (M12 x 1)
Order-No.
Length10 m Couplingangled 8-pole (M12 x 1)
Order-No.
FZ-KS.W08.10
12-pole (M12 x 1)
Order-No.
FZ-KS.W12.10
Length10 m Couplingstraight / axial 8-pole (M12 x 1)
Order-No.
FZ-KS.G08.10
12-pole (M12 x 1)
Order-No.
FZ-KS.G12.10
