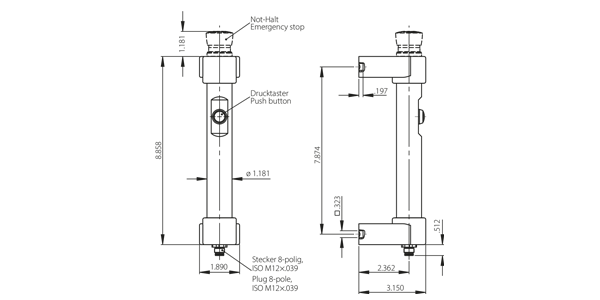

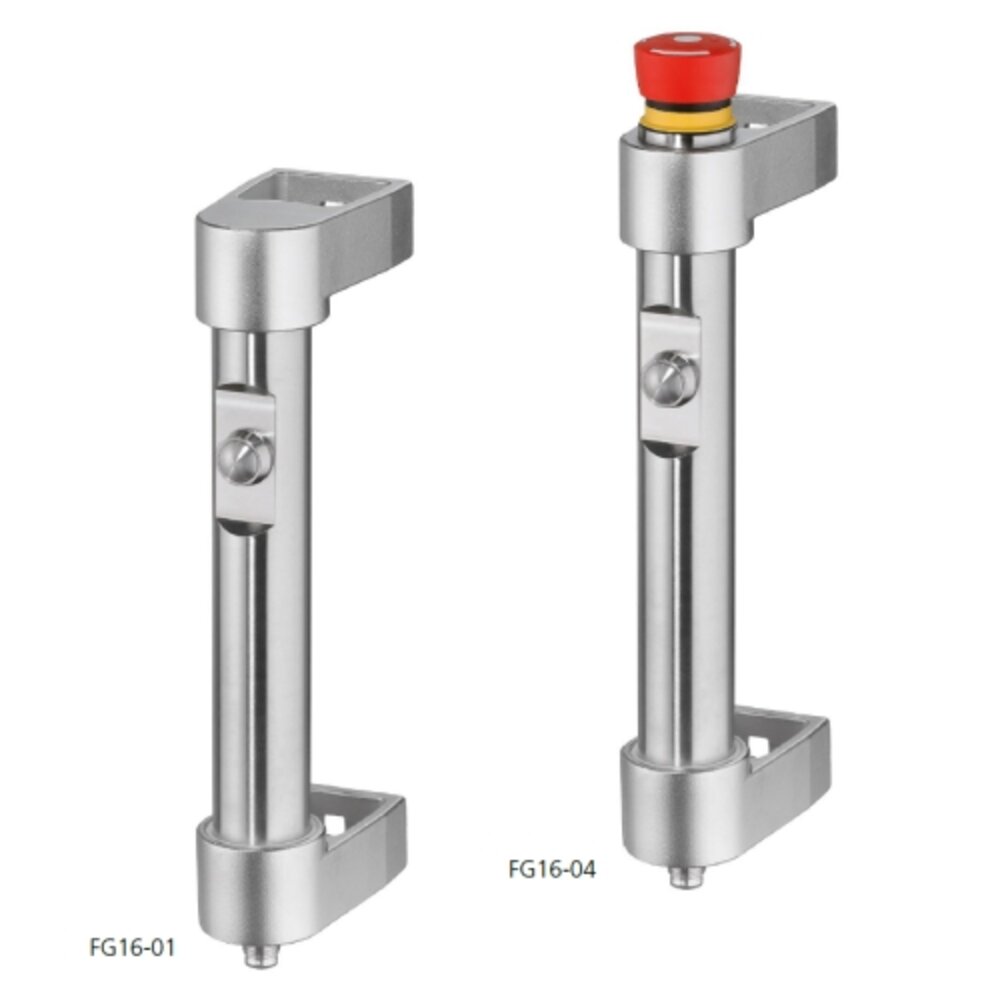

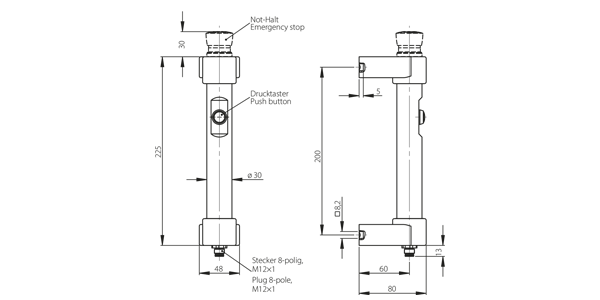

Functional handles FG16-01, FG16-04
Material and surface:
Shanks made of stainless steel precision casting 1.4408, blasted and electropolished. Tube made of stainless steel 1.4301, fine grounded. Button made of stainless steel.

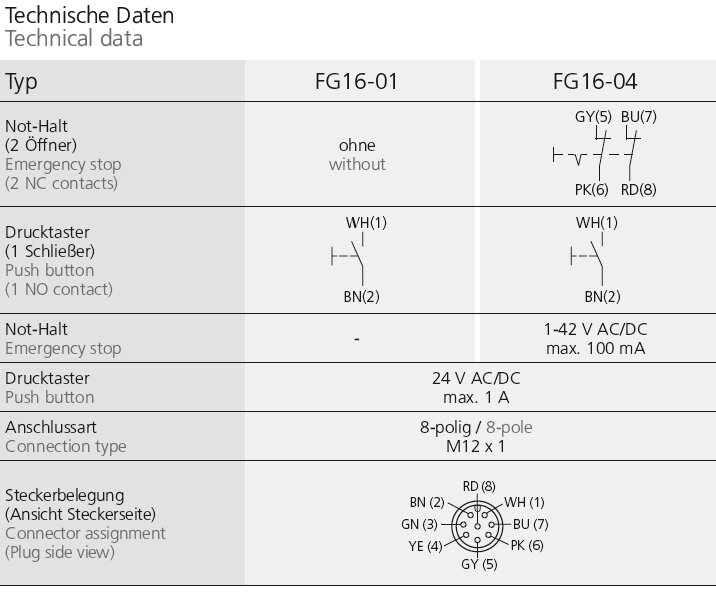

Function elements:

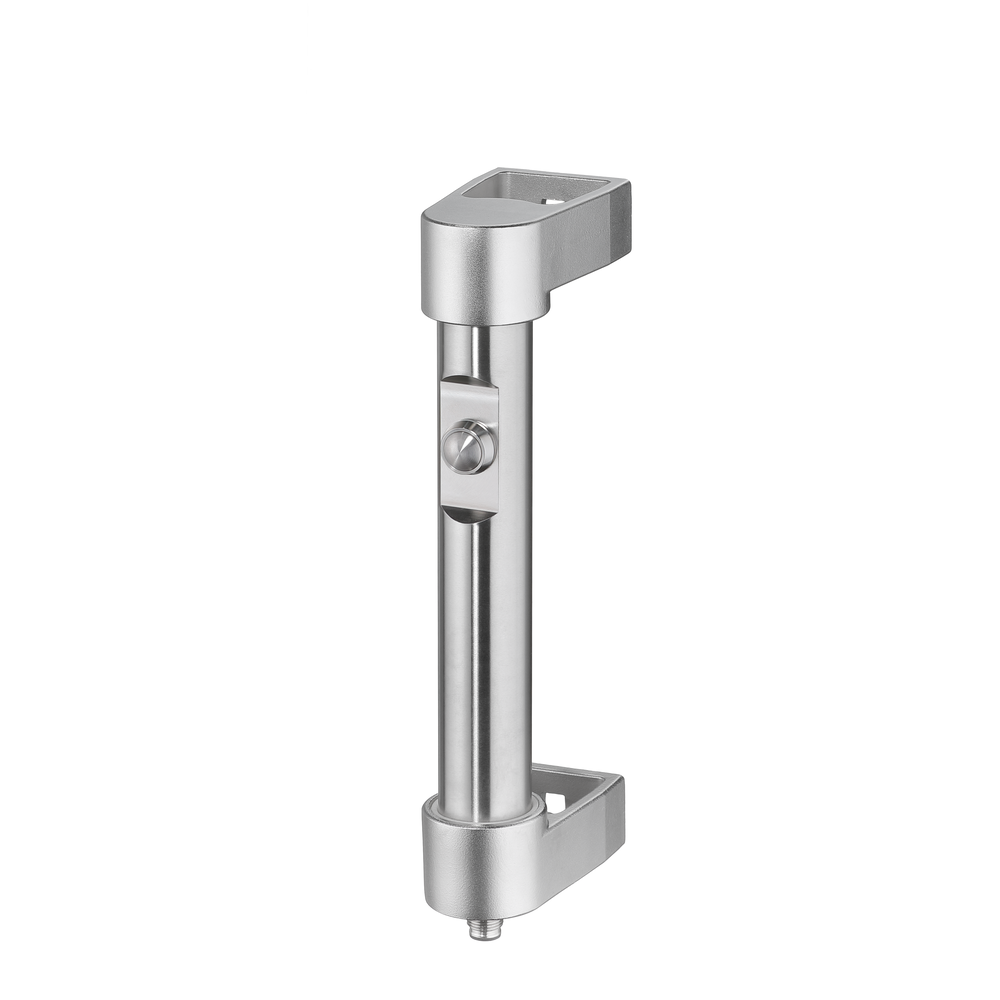

FG16-01:
Push-button (NO contact)

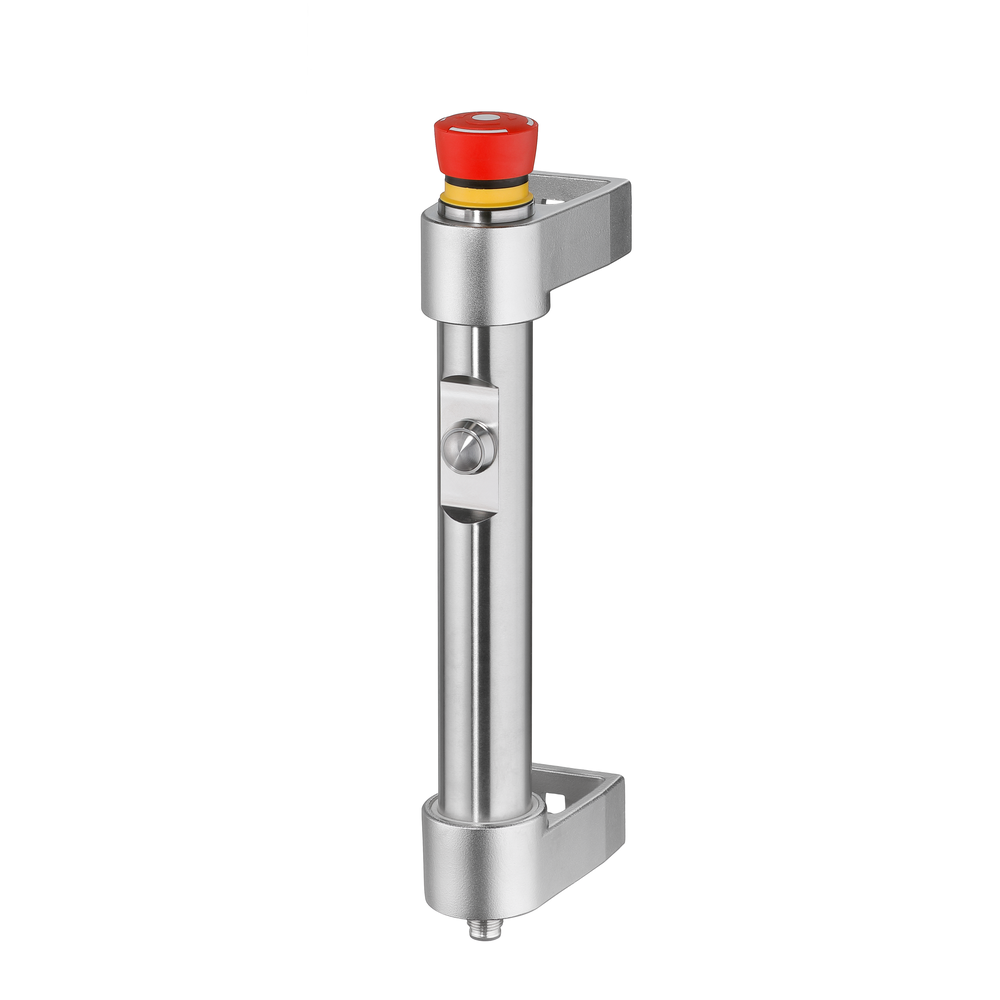

FG16-04:
Emergency-stop (2 NC contacts)
Push-button (NO contact)
FG16-00:
Opposite handle without switching elements.
Connection:
8-pole connector positioned at the tubular axle of the handle ledge in the handle shank. Coupling with 10m ready-made cable avaiable as accessory.
Protection:
IP 54 with coupling screwed on.
- handle lengths customized
- button assignment according to customer requirements
- button / LED colors according to customer specifications
- further connection possibilities
- labeling possible
|
Unit of measure
|
||
|---|---|---|
| Product Type | Description | Order-No. |
| Product Type | Description | Order-No. |
|---|---|---|
| Product Type FG16-00 | Description Counter handle without function | Order-No. FG16-00.200.36 3D+CAD |
| Product Type FG16-01 | Description 1 push button | Order-No. FG16-01S.200.36 3D+CAD |
| Product Type FG16-04 | Description 1 push button and emergency stop | Order-No. FG16-04S.200.36 3D+CAD |
| Handle accessories | |||
|---|---|---|---|
| Length | Coupling |
8-pole (M12 x 1)
Order-No. |
|
| Length | Coupling |
8-pole (M12 x 1)
Order-No. |
|
|---|---|---|---|
|
Length 10 m | Coupling angled |
8-pole (M12 x 1)
Order-No. FZ-KS.W08.10 |
|
Length 10 m | Coupling straight / axial |
8-pole (M12 x 1)
Order-No. FZ-KS.G08.10 |
