handgrepen VA.HD

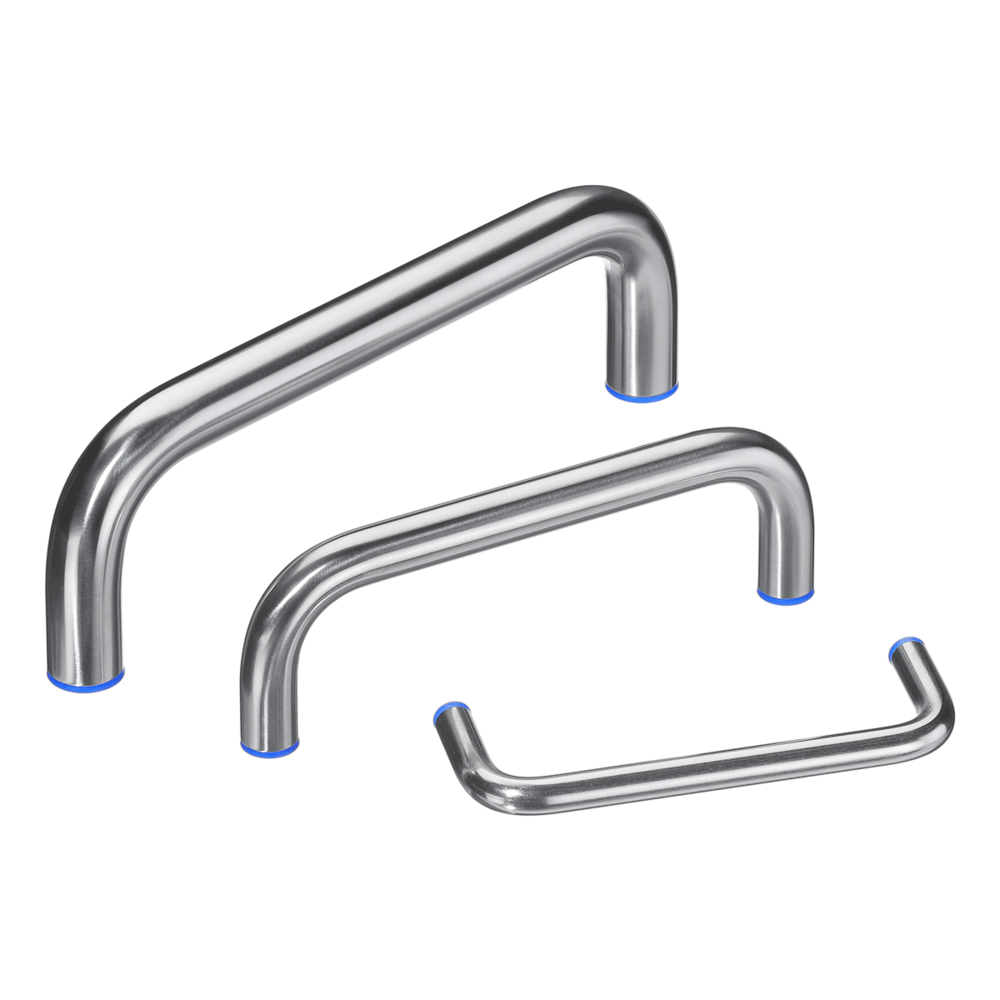

Hygienic handles for mechanical engineering.

Material and surface:
Handle made of stainless steel 1.4404 (316L). Srews made of stainless steel 1.4401 (316), surface with Ra <0.8 μm. Seals made of blue plastic with FDA approval.

Scope of delivery:
Handle including 2 sealing rings

Certificates:
Handle with seals certified according to DGUV test. Screws (accessories) in connection with the handle certified according to DGUV test.

Temperature resistant:
-60 ° C to + 200 ° C

Stress resistance:
min. 1,000 N.

Note:
Other handle lengths and additional certificates on request.

Lees meer toon minder
maateenheid
øD A Bestelnummer H M T
øD A Bestelnummer H M T
øD 10 A 120 Bestelnummer VA.HD-10.120.41 3D CAD H 40 M M5 T 10
øD 10 A 125 Bestelnummer VA.HD-10.125.41 3D CAD H 40 M M5 T 10
øD 10 A 160 Bestelnummer VA.HD-10.160.41 3D CAD H 40 M M5 T 10
øD 15 A 150 Bestelnummer VA.HD-15.150.43 3D CAD H 55 M M6 T 12
øD 15 A 200 Bestelnummer VA.HD-15.200.43 3D CAD H 55 M M6 T 12
øD 15 A 250 Bestelnummer VA.HD-15.250.43 3D CAD H 55 M M6 T 12
øD 20 A 200 Bestelnummer VA.HD-20.200.43 3D CAD H 70 M M8 T 16
øD 20 A 250 Bestelnummer VA.HD-20.250.43 3D CAD H 70 M M8 T 16
øD 20 A 300 Bestelnummer VA.HD-20.300.43 3D CAD H 70 M M8 T 16
øD 20 A 350 Bestelnummer VA.HD-20.350.43 3D CAD H 70 M M8 T 16
øD Losse onderdelen Bestelnummer Hoeveelheid/aantal
øD Losse onderdelen Bestelnummer Hoeveelheid/aantal

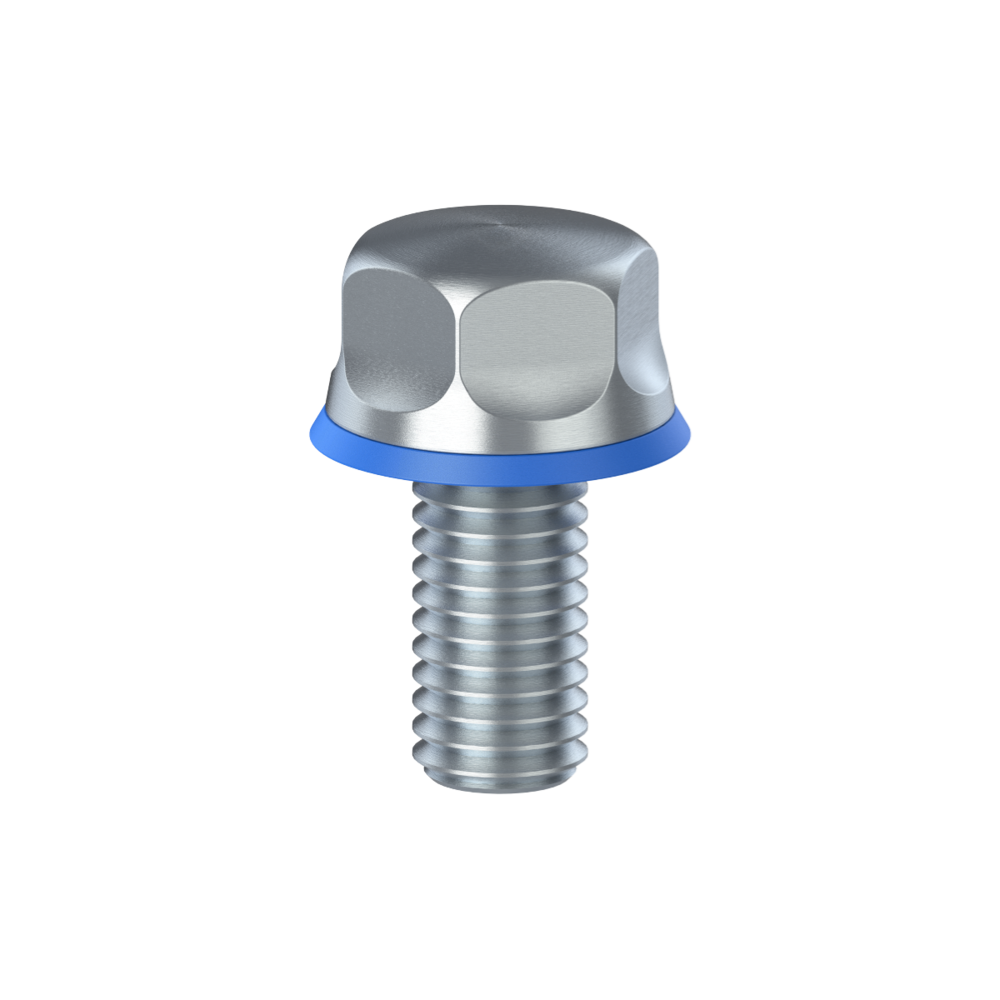

øD Ø10 Losse onderdelen Schroef Bestelnummer VA.HD-M5x10.41 3D CAD Hoeveelheid/aantal 1 stuk
øD Ø10 Losse onderdelen Afdichting Bestelnummer VA.HD-10.001.BLUE 3D CAD Hoeveelheid/aantal 1 stuk
øD Ø15 Losse onderdelen Schroef Bestelnummer VA.HD-M6x12.41 3D CAD Hoeveelheid/aantal 1 stuk
øD Ø15 Losse onderdelen Afdichting Bestelnummer VA.HD-15.001.BLUE 3D CAD Hoeveelheid/aantal 1 stuk
øD Ø20 Losse onderdelen Schroef Bestelnummer VA.HD-M8x16.41 3D CAD Hoeveelheid/aantal 1 stuk
øD Ø20 Losse onderdelen Afdichting Bestelnummer VA.HD-20.001.BLUE 3D CAD Hoeveelheid/aantal 1 stuk
