Indicator light LE1
Light for the illumination of machines with control cabinets.
Material and surface:
Housing made of aluminum AlMgSi 0.5.
Standard version: Surface vibration ground and natural coloured anodized.
Satin finish version: Glass ball blasted and anodized in natural colour, satin finished.

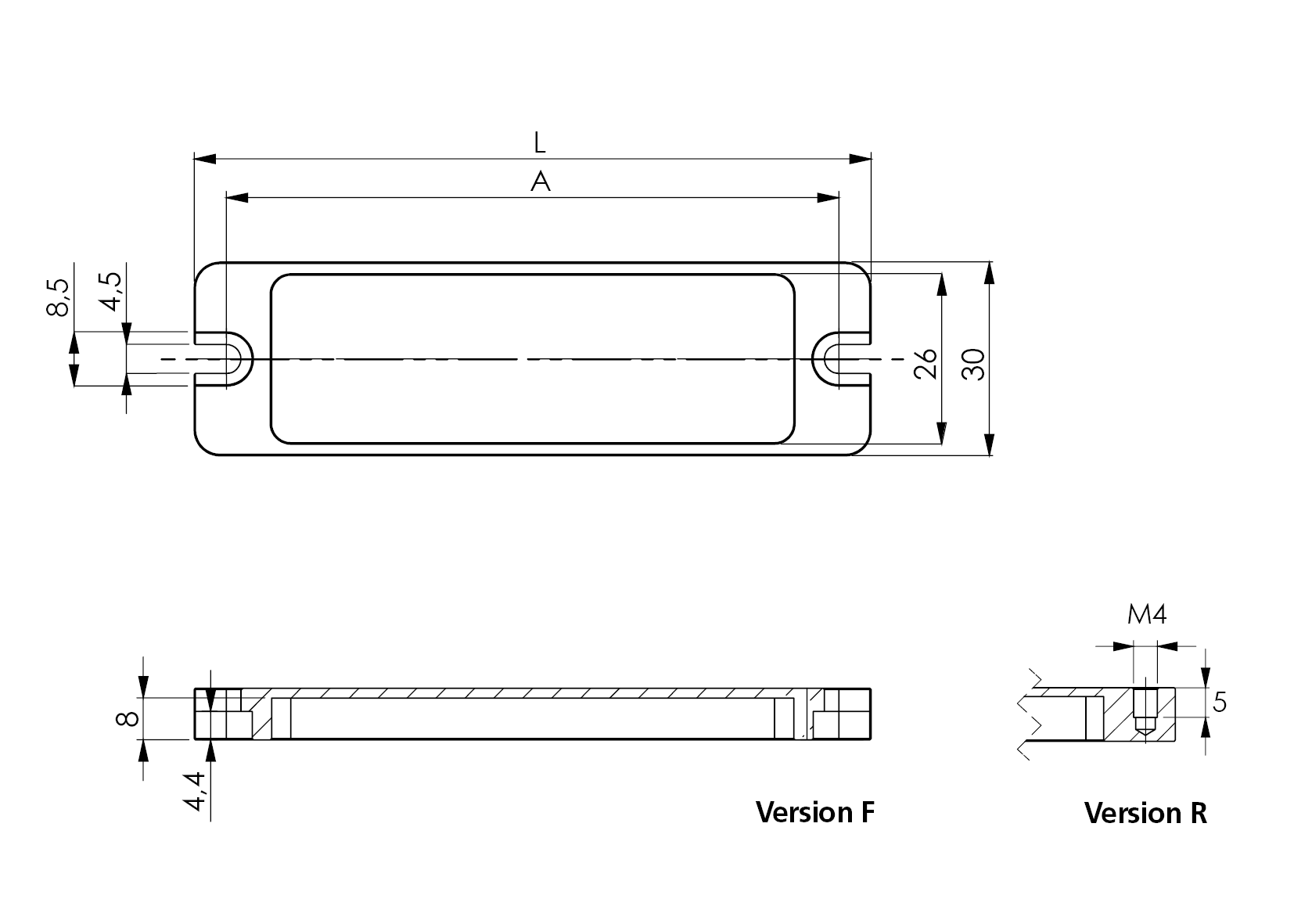

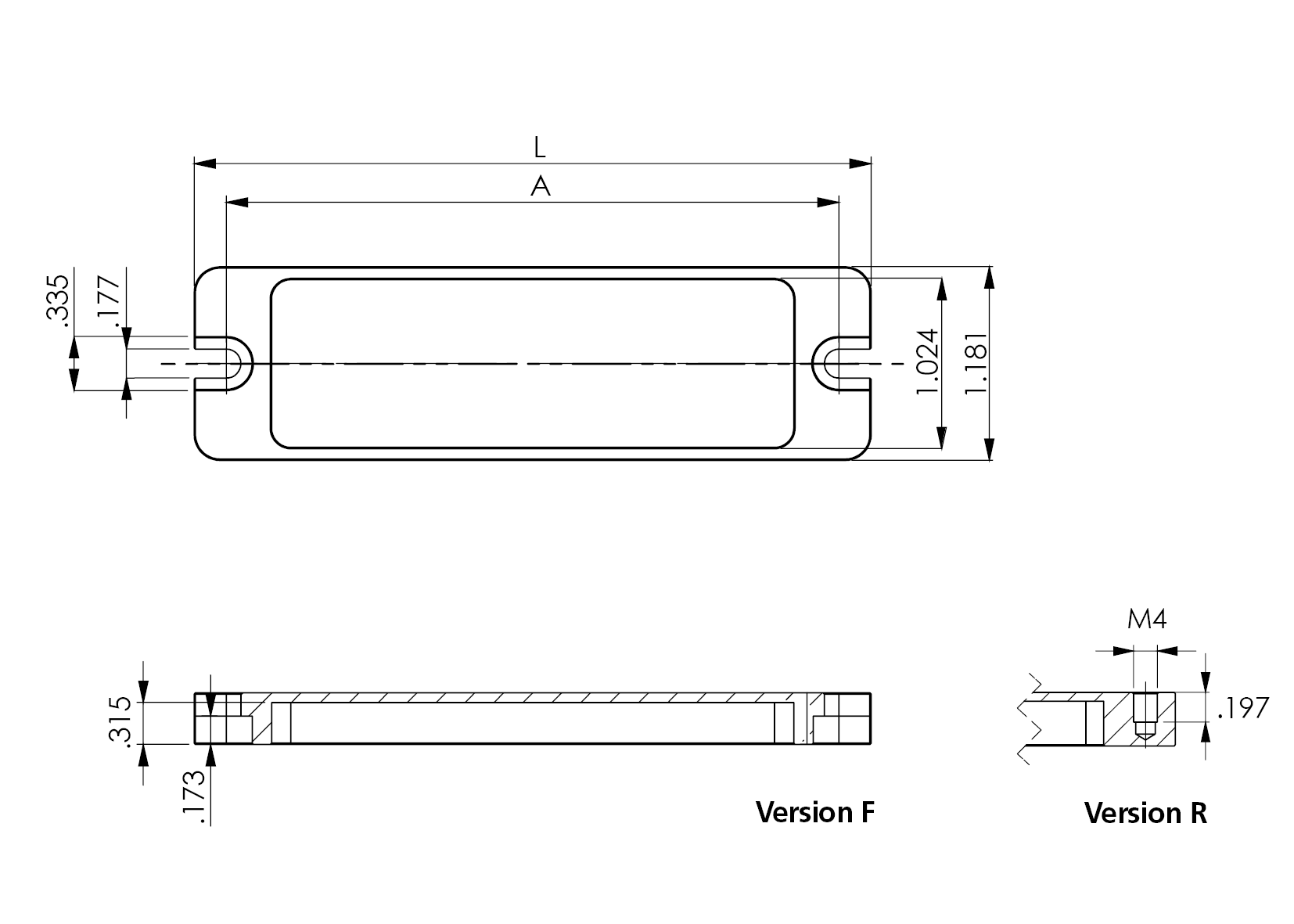

Assembly version:
Version F: For front mounting.
Version R: For rear mounting.
Connection:
5 m connection cable leading out of the housing, with free cable end.
Protection class:
IP 68.
Note:
Other cable lengths or colors available upon request.
|
Unit of measure
|
|||||
|---|---|---|---|---|---|
| Type | |||||
| L | A | Assembly version | Description |
Anodizing version natural-colored
Order-No. |
Anodizing version natural-colored with satin finish
Order-No. |
| L | A | Assembly version | Description |
Anodizing version natural-colored
Order-No. |
Anodizing version natural-colored with satin finish
Order-No. |
|---|---|---|---|---|---|
| L 105 | A 95 | Assembly version Version F | Description Light color: White |
Anodizing version natural-colored
Order-No. LE1-00.F095.01 3D+CAD |
Anodizing version natural-colored with satin finish
Order-No. LE1-00.F095.11 3D+CAD |
| L 105 | A 95 | Assembly version Version R | Description Light color: White |
Anodizing version natural-colored
Order-No. LE1-00.R095.01 3D+CAD |
Anodizing version natural-colored with satin finish
Order-No. LE1-00.R095.11 3D+CAD |
| L 180 | A 170 | Assembly version Version F | Description Light color: White |
Anodizing version natural-colored
Order-No. LE1-00.F170.01 3D+CAD |
Anodizing version natural-colored with satin finish
Order-No. LE1-00.F170.11 3D+CAD |
| L 180 | A 170 | Assembly version Version R | Description Light color: White |
Anodizing version natural-colored
Order-No. LE1-00.R170.01 3D+CAD |
Anodizing version natural-colored with satin finish
Order-No. LE1-00.R170.11 3D+CAD |
| L 255 | A 245 | Assembly version Version F | Description Light color: White |
Anodizing version natural-colored
Order-No. LE1-00.F245.01 3D+CAD |
Anodizing version natural-colored with satin finish
Order-No. LE1-00.F245.11 3D+CAD |
| L 255 | A 245 | Assembly version Version R | Description Light color: White |
Anodizing version natural-colored
Order-No. LE1-00.R245.01 3D+CAD |
Anodizing version natural-colored with satin finish
Order-No. LE1-00.R245.11 3D+CAD |
| L 330 | A 320 | Assembly version Version F | Description Light color: White |
Anodizing version natural-colored
Order-No. LE1-00.F320.01 3D+CAD |
Anodizing version natural-colored with satin finish
Order-No. LE1-00.F320.11 3D+CAD |
| L 330 | A 320 | Assembly version Version R | Description Light color: White |
Anodizing version natural-colored
Order-No. LE1-00.R320.01 3D+CAD |
Anodizing version natural-colored with satin finish
Order-No. LE1-00.R320.11 3D+CAD |
