Functional handles FG16-19

Capacitive handle with optical feedback by green LED. The handle switches reliable by touching the back. The electronics in the handle are wear-free and therefore extremely durable.

Material and surface:
Handle shanks made of high strength polyamide PA6, black with fine structure. Handle ledge made of lathed PVC, black.

Function elements:
FG16-19S:
Capacitive sensor (NO contact)

FG16-19O:
Capacitiver sensor (NC contact)

FG16-00:
Opposite handle without switching elements.

Connection:
4-pole connector positioned at the tubular axle of the handle ledge in the handle shank. Coupling with 10m ready-made cable available as accessory.

Protection class:
IP 54 with coupling screwed on.

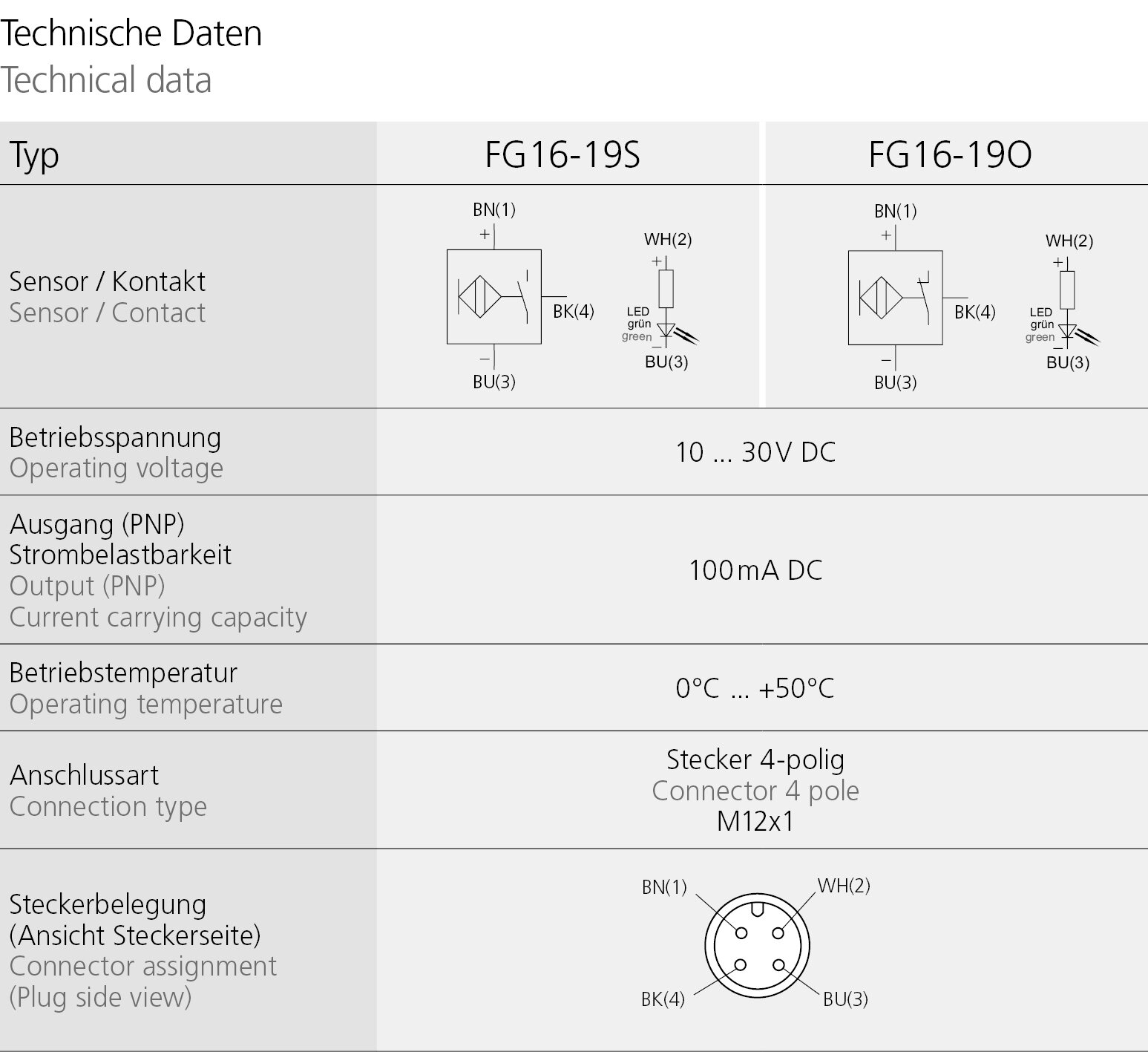

Technical data
Unit of measure

Product Type	Description	Order-No.
Product TypeFG16-00	DescriptionCounter handle without function	Order-No. FG16-00.150.84 3D+CAD
Product TypeFG16-19O	DescriptionCapacitive sensor (NC contact)	Order-No. FG16-19O.150.84 3D+CAD
Product TypeFG16-19S	DescriptionCapacitive sensor (NO contact)	Order-No. FG16-19S.150.84 3D+CAD

Zubehör
		Handle accessories
Length	Coupling	4-pole (M12 x 1) Order-No.
Length10 m	Couplingangled	4-pole (M12 x 1) Order-No. FZ-KS.W04.10
Length10 m	Couplingstraight / axial	4-pole (M12 x 1) Order-No. FZ-KS.G04.10
