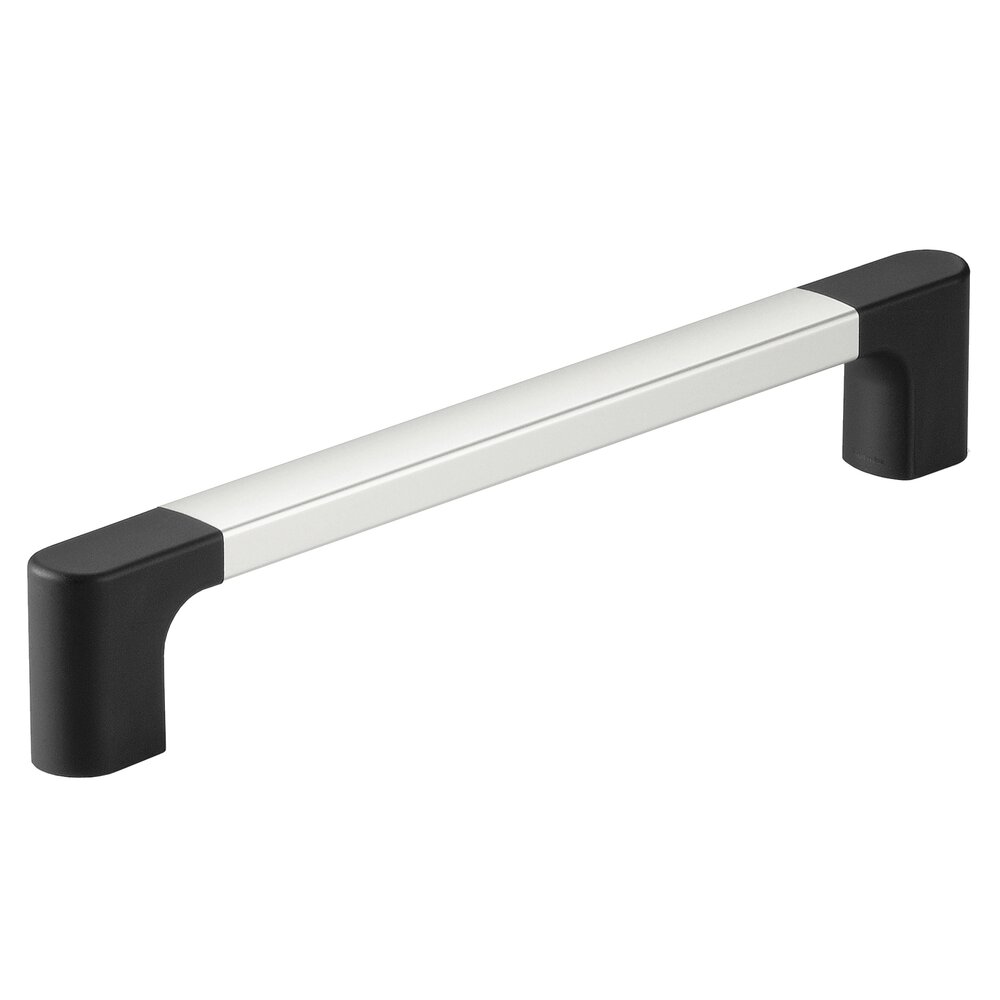

Handles MS-02
Design with thermoplastic shanks and profiled aluminium.
Material and surface:
Handle ledge of polyamide PA6, glass ball reinforced, black, similar to RAL 9005, half-matt with fine structure. Threaded brass bushings. Elliptical bar of extruded aluminium AlMgSi 0.5; matted and natural coloured anodized. Alternatively, handle black powder coated, similar to RAL 9005.
Note:
Other handle lengths on request.
Stress resistance:
min. 1000 N.
|
Unit of measure
|
|||
|---|---|---|---|
| Version of grip ledge | |||
| A | L |
Anodizing version natural-colored with satin finish
Order-No. |
powder coated black
Order-No. |
| A | L |
Anodizing version natural-colored with satin finish
Order-No. |
powder coated black
Order-No. |
|---|---|---|---|
| A 180 | L 240 |
Anodizing version natural-colored with satin finish
Order-No. MS-02.180.11 3D+CAD |
powder coated black
Order-No. MS-02.180.9005 3D+CAD |
| A 200 | L 260 |
Anodizing version natural-colored with satin finish
Order-No. MS-02.200.11 3D+CAD |
powder coated black
Order-No. MS-02.200.9005 3D+CAD |
| A 250 | L 310 |
Anodizing version natural-colored with satin finish
Order-No. MS-02.250.11 3D+CAD |
powder coated black
Order-No. MS-02.250.9005 3D+CAD |
| A 300 | L 360 |
Anodizing version natural-colored with satin finish
Order-No. MS-02.300.11 3D+CAD |
powder coated black
Order-No. MS-02.300.9005 3D+CAD |
| A 350 | L 410 |
Anodizing version natural-colored with satin finish
Order-No. MS-02.350.11 3D+CAD |
powder coated black
Order-No. MS-02.350.9005 3D+CAD |
| A 400 | L 460 |
Anodizing version natural-colored with satin finish
Order-No. MS-02.400.11 3D+CAD |
powder coated black
Order-No. MS-02.400.9005 3D+CAD |
| A 500 | L 560 |
Anodizing version natural-colored with satin finish
Order-No. MS-02.500.11 3D+CAD |
powder coated black
Order-No. MS-02.500.9005 3D+CAD |
| A 600 | L 660 |
Anodizing version natural-colored with satin finish
Order-No. MS-02.600.11 3D+CAD |
powder coated black
Order-No. MS-02.600.9005 3D+CAD |
