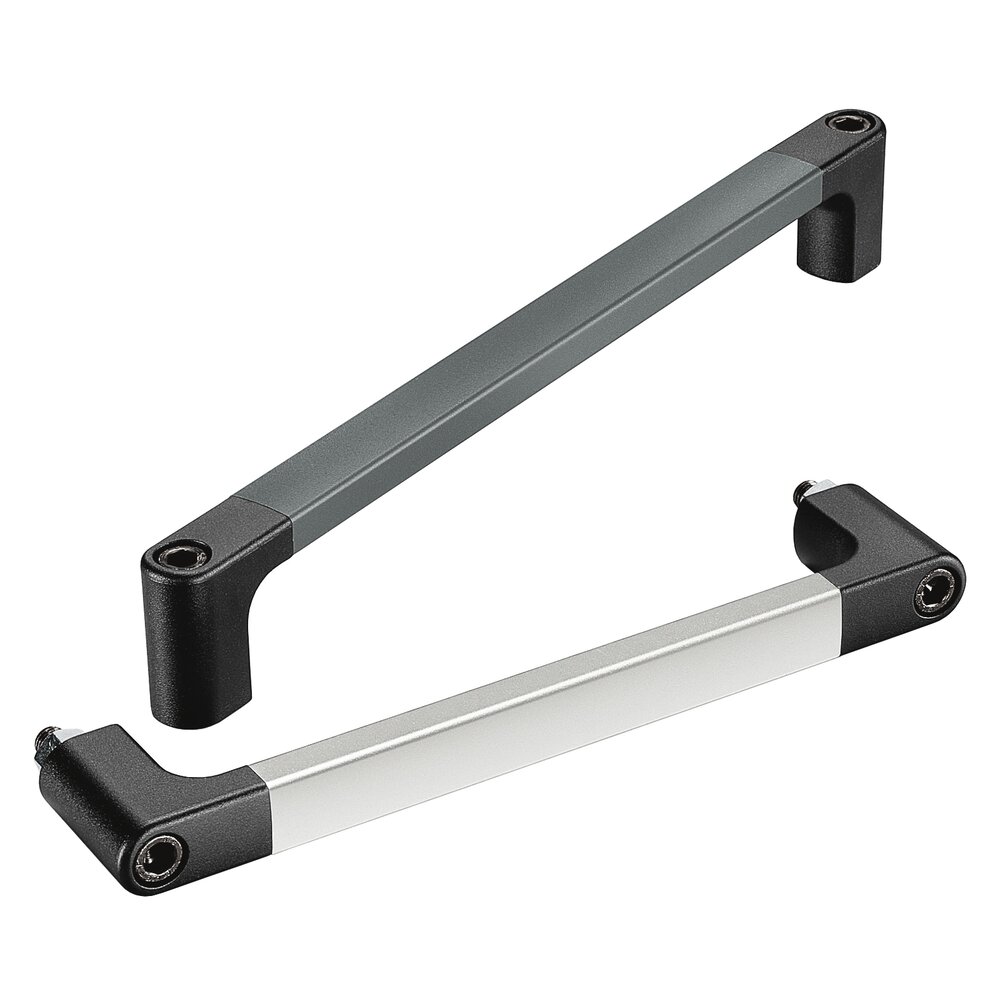

Handles MS-01
Machine, instrument and equipment handles for universal use and for any bore clearances. Extra solid design with ergonomical shape. Handle ledge and shanks plug press connected.
Material and surface:
Handle shanks made of diecast aluminium, connecting grip ledge of aluminium profile tubing. Handle shanks black powder coated, half-matt with fine structure; aluminium connecting grip ledge, anodized in natural colour, with satin finish or grey powder coated similar RAL 7043.
Scope of supply:
Including black galvanized cheese head screws (chromium VI free) with hexagon socket M12x70 DIN 912, galvanized washers DIN 125 and nuts DIN 934. Grip ledge and shanks are supplied mounted.
Note:
Any desired handle lengths available on request.
Stress resistance:
min. 1000 N.
|
Unit of measure
|
|||
|---|---|---|---|
| Version of grip ledge | |||
| A | L |
Anodizing version natural-colored
Order-No. |
powder coated grey
Order-No. |
| A | L |
Anodizing version natural-colored
Order-No. |
powder coated grey
Order-No. |
|---|---|---|---|
| A 180 | L 208 |
Anodizing version natural-colored
Order-No. MS-01.180.62 3D+CAD |
powder coated grey
Order-No. MS-01.180.7043 3D+CAD |
| A 200 | L 228 |
Anodizing version natural-colored
Order-No. MS-01.200.62 3D+CAD |
powder coated grey
Order-No. MS-01.200.7043 3D+CAD |
| A 250 | L 278 |
Anodizing version natural-colored
Order-No. MS-01.250.62 3D+CAD |
powder coated grey
Order-No. MS-01.250.7043 3D+CAD |
| A 300 | L 328 |
Anodizing version natural-colored
Order-No. MS-01.300.62 3D+CAD |
powder coated grey
Order-No. MS-01.300.7043 3D+CAD |
| A 350 | L 378 |
Anodizing version natural-colored
Order-No. MS-01.350.62 3D+CAD |
powder coated grey
Order-No. MS-01.350.7043 3D+CAD |
| A 400 | L 428 |
Anodizing version natural-colored
Order-No. MS-01.400.62 3D+CAD |
powder coated grey
Order-No. MS-01.400.7043 3D+CAD |
| A 500 | L 528 |
Anodizing version natural-colored
Order-No. MS-01.500.62 3D+CAD |
powder coated grey
Order-No. MS-01.500.7043 3D+CAD |
| A 600 | L 628 |
Anodizing version natural-colored
Order-No. MS-01.600.62 3D+CAD |
powder coated grey
Order-No. MS-01.600.7043 3D+CAD |
