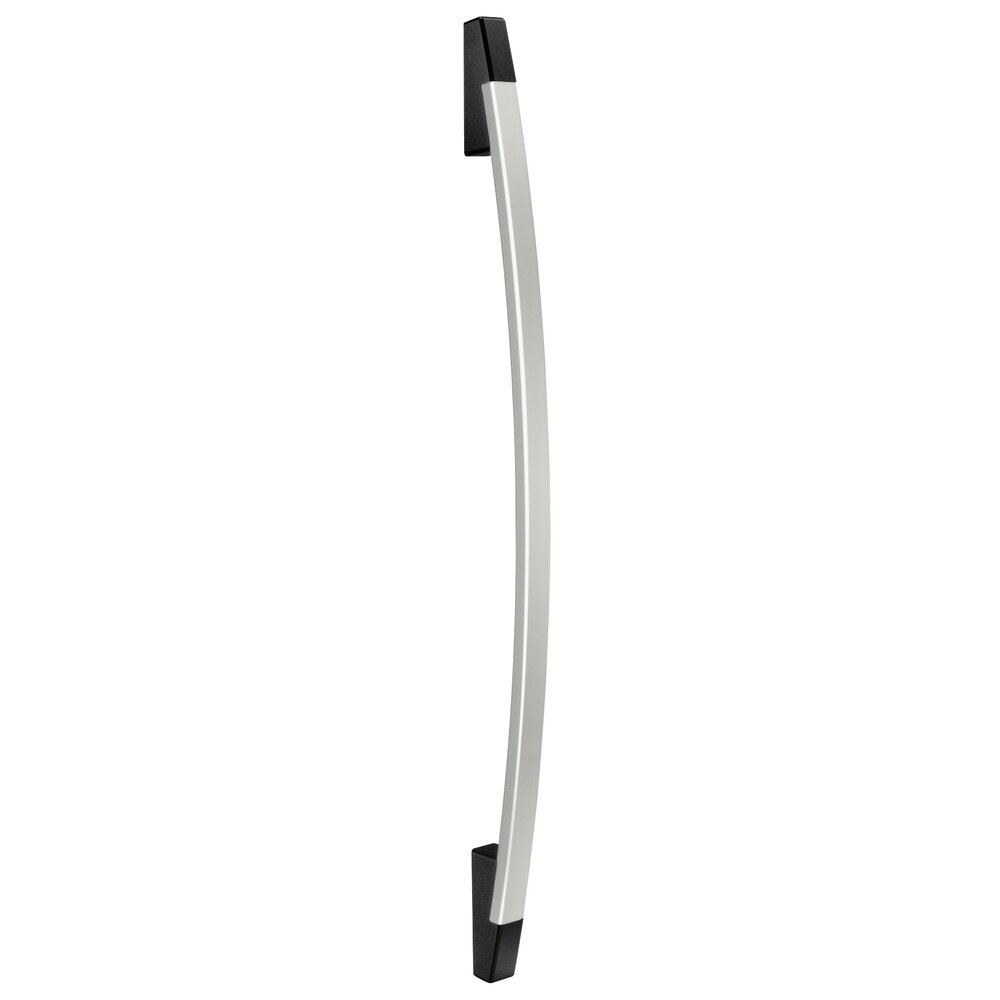

Handles GM-36
Material and surface:
Handle shank made of aluminium chill casting AlSiCu 12, black powder coated, half-matt with fine structure.
Handle ledge of profiled aluminium AlMgSi 0.5; matt finished and anodized in natural colour or black powder coated with fine structure.
Connecting screws and clamping sleeves of stainless steel.
Note:
Any desired handle lengths and surface treatments on request.
Stress resistance:
min. 1000 N.
|
Unit of measure
|
||||
|---|---|---|---|---|
| Type | ||||
| A | L | H |
Anodizing version natural-colored
Order-No. |
powder coated black
Order-No. |
| A | L | H |
Anodizing version natural-colored
Order-No. |
powder coated black
Order-No. |
|---|---|---|---|---|
| A 600 | L 678 | H 60 |
Anodizing version natural-colored
Order-No. GM-36.600.01 3D+CAD |
powder coated black
Order-No. GM-36.600.54 3D+CAD |
| A 800 | L 878 | H 69 |
Anodizing version natural-colored
Order-No. GM-36.800.01 3D+CAD |
powder coated black
Order-No. GM-36.800.54 3D+CAD |
| A 1000 | L 1078 | H 81 |
Anodizing version natural-colored
Order-No. GM-36.1000.01 3D+CAD |
powder coated black
Order-No. GM-36.1000.54 3D+CAD |
