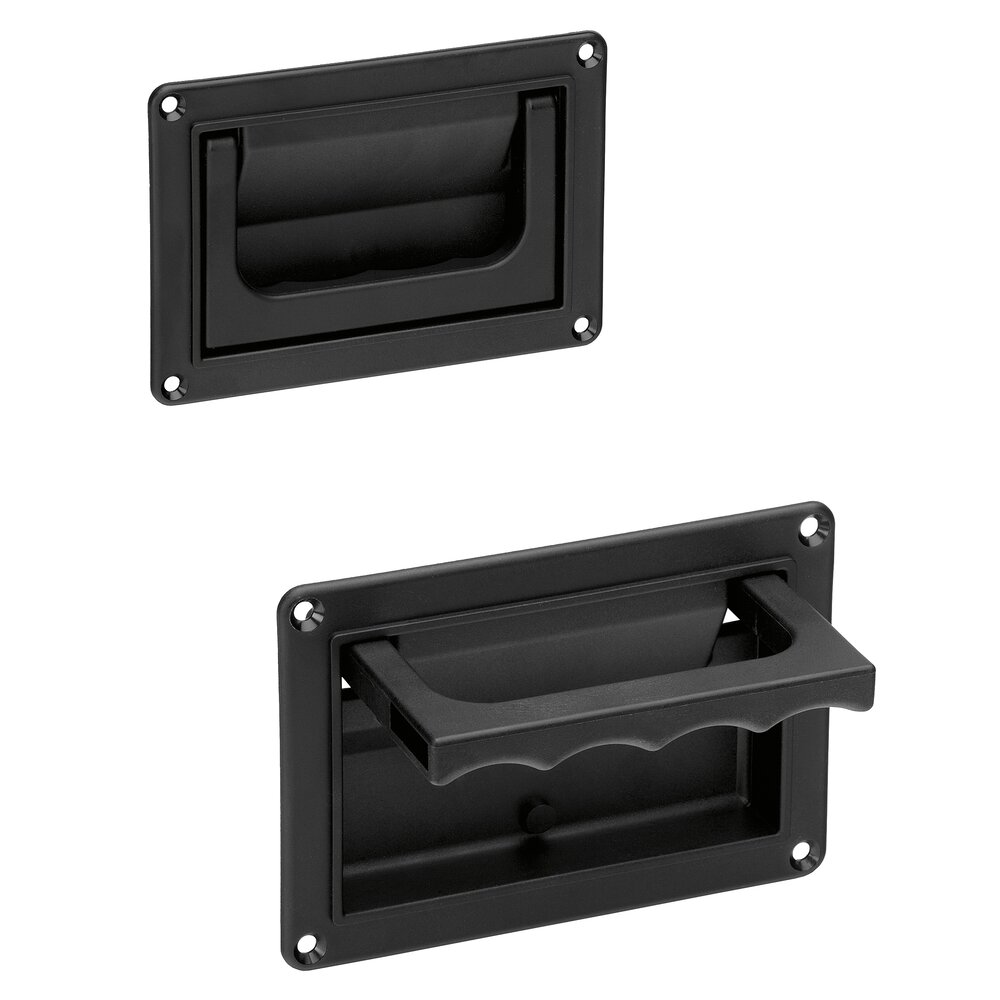

  • Two black rectangular tray handles made of polyamide PA6, one folded and one extended, each with mounting plates and screw holes at corners.
Two black rectangular tray handles made of polyamide PA6, one folded and one extended, each with mounting plates and screw holes at corners.

Handles SK-79 aus PA6

Complementary to the proven tray handles made of aluminium and stainless steel.

Material and surface:
Tray and handle made of polyamide PA6, black, similar to RAL 9005.

Design features:
Mountable in front of or behind the housing wall with the same housing cut-out. Natural finger profiling at the rear of the hinged handle.

Type SK-79.S:
With snap locks both in rest and work position.

Type SK-79.R:
With pull back spring from the working to the rest position.

Stress resistance:
min. 250 N.

show more show less
Technical schematic drawing showing front, side, and top views with dimensions of a rectangular black tray handle SK-79 made of polyamide PA6, including mounting details for M4 countersunk screws.
Technical schematic drawing showing front, side, and top views with dimensions of a rectangular black tray handle SK-79 made of polyamide PA6, including mounting details for M4 countersunk screws.
Unit of measure
Description
Type SK-79.R - with pull back spring
Order-No.
Type SK-79.S - with snap locks
Order-No.
Type SK-79.R - with pull back spring
Order-No.
Type SK-79.S - with snap locks
Order-No.
Type SK-79.R - with pull back spring
Order-No.
SK-79.R118.84 3D+CAD
Type SK-79.S - with snap locks
Order-No.
SK-79.S118.84 3D+CAD
