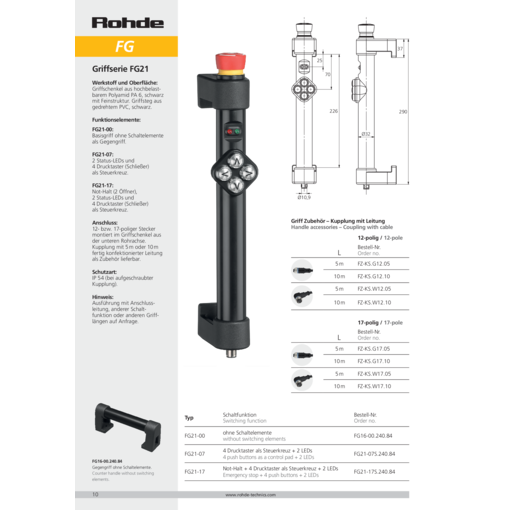

Functional handles FG21

Material and surface:
Handle shanks made of high strength polyamide PA 6, black with fine structure. Handle ledge made of lathed PVC, black.

Function elements:

FG21-00:
Basic handle without switching elements as counter handle.

FG21-07:
2 status LEDs and 4 push buttons (NO contact) as a control pad.

FG21-17:
Emergency stop (2 NC contacts), 2 status LEDs and 4 push buttons (NO contact) as a control pad.

Connection:
12-pole or 17-pole connector positioned at the tubular axle of the handle ledge in the handle shank. Coupling with 5  m or 10 m readymade cable available as accessory.

Protection class:
IP 54 (with the coupling screwed on).

Note:
With connection cable, other button configurations, or other handle lengths upon request.

show more show less
  • handle lengths customized
  • button assignment according to customer requirements
  • further connection possibilities
  • labeling possible
show more show less
Unit of measure
Product Type Description Order-No.
Product Type Description Order-No.
Product Type FG21-00 Description Counter handle without function Order-No. FG16-00.240.84 3D+CAD
Product Type FG21-07 Description 4 push buttons as a control pad + 2 LEDs Order-No. FG21-07S.240.84 3D+CAD
Product Type FG21-17 Description 4 push buttons + 2 LEDs + emergency stop Order-No. FG21-17S.240.84 3D+CAD
Handle accessories
Coupling Length 12-pole (M12 x 1)
Order-No. 		17-pole (M12 x 1)
Order-No.
Coupling Length 12-pole (M12 x 1)
Order-No. 		17-pole (M12 x 1)
Order-No.
Coupling angled Length 5m 12-pole (M12 x 1)
Order-No. FZ-KS.W12.05 		17-pole (M12 x 1)
Order-No. Z-KS.W17.05
Coupling angled Length 10m 12-pole (M12 x 1)
Order-No. FZ-KS.W12.10 		17-pole (M12 x 1)
Order-No. FZ-KS.W17.10
Coupling straight / axial Length 5m 12-pole (M12 x 1)
Order-No. FZ-KS.G12.05 		17-pole (M12 x 1)
Order-No. Z-KS.G17.05
Coupling straight / axial Length 10m 12-pole (M12 x 1)
Order-No. FZ-KS.G12.10 		17-pole (M12 x 1)
Order-No. FZ-KS.G17.10
Table showing technical specifications for FG16-02 and FG16-05 types including emergency stop, push button contacts, LED colors, voltage ratings, and connector pin assignments.
