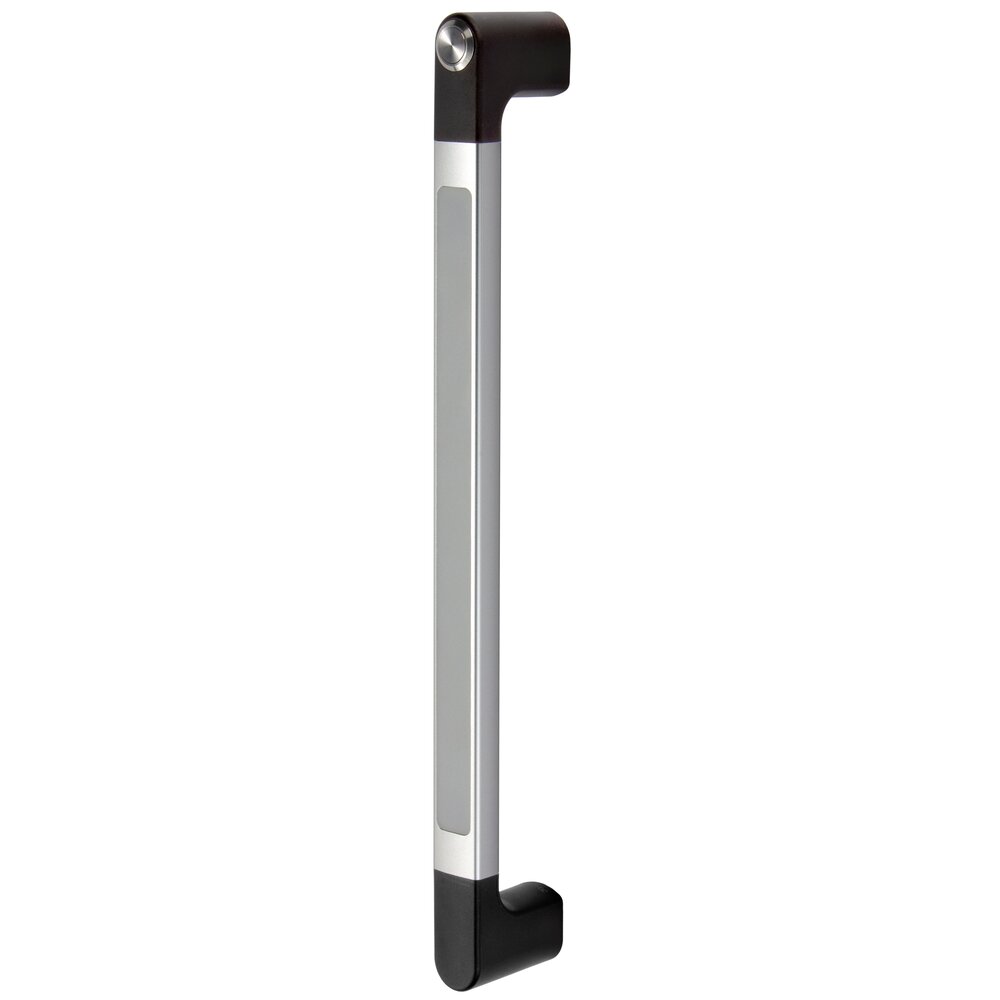

Functional handles FG4-LL

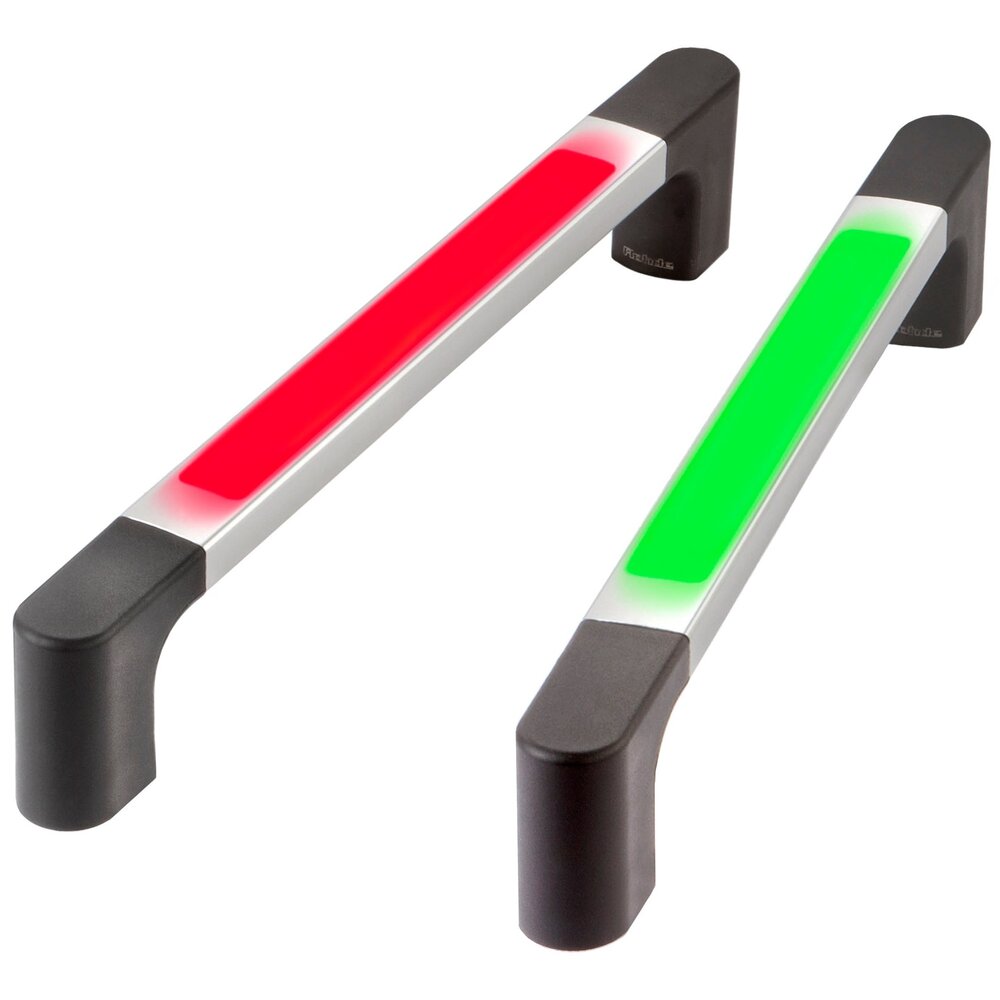

Functional handle with a three-coloured illuminatable handle ledge. The LED colours red, yellow and green can be used to display the current operating status of the machine for example.

Material and surface:
Handle shanks made of glass ball reinforced polyamide PA6, black, similar to RAL 9005, semi-matte with a fine-grain structure. Threaded bushes made of brass. Handle ledge made of extruded aluminium AlMgSi 0.5; glass ball blasted and anodized in natural colour. Illuminatable plastic insert made of translucent PMMA.

Function elements:

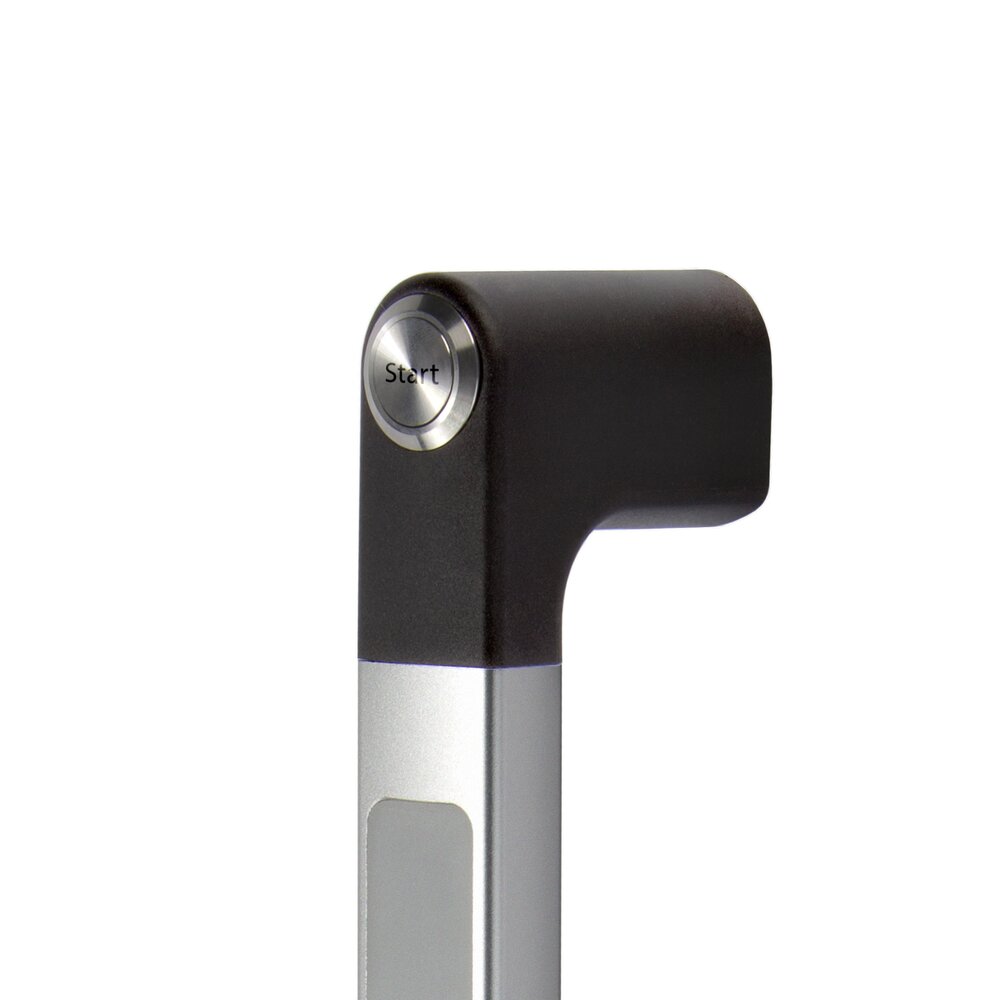

One push button, as a changeover contact.

Connection:

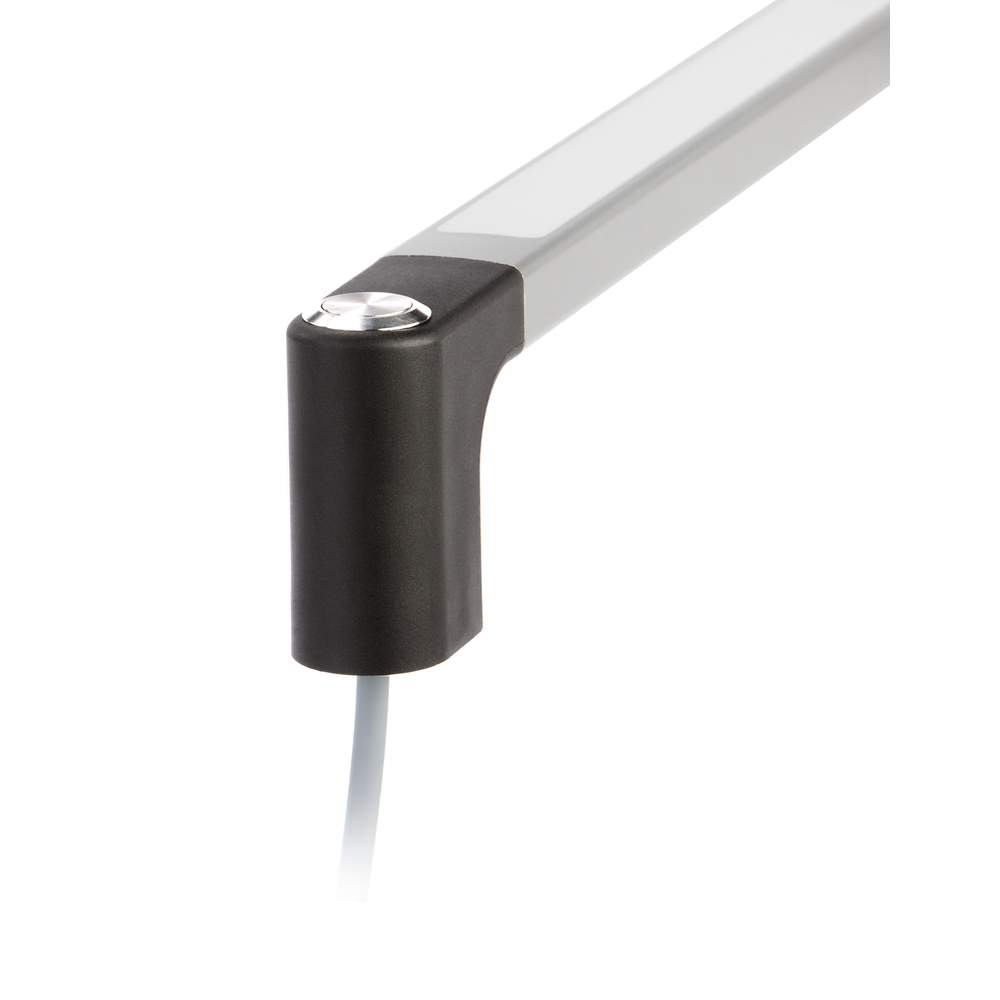

5m connection cable leading out of the mounting surface of the handle shank. Version with an 8-pin connector on request.

Note:
Other handle lengths and switching element assignments, as well as white handle ledge lighting on request.

Technical data
Unit of measure

Product Type	Description	A	L	Order-No.
Product TypeFG4-LL10	Descriptionwithout push button with LED-illumination	A375	L435	Order-No. FG4-LL10.375.11 3D+CAD
Product TypeFG4-LL11	Description1 push button and LED-illumination	A375	L435	Order-No. FG4-LL11.375.11 3D+CAD
