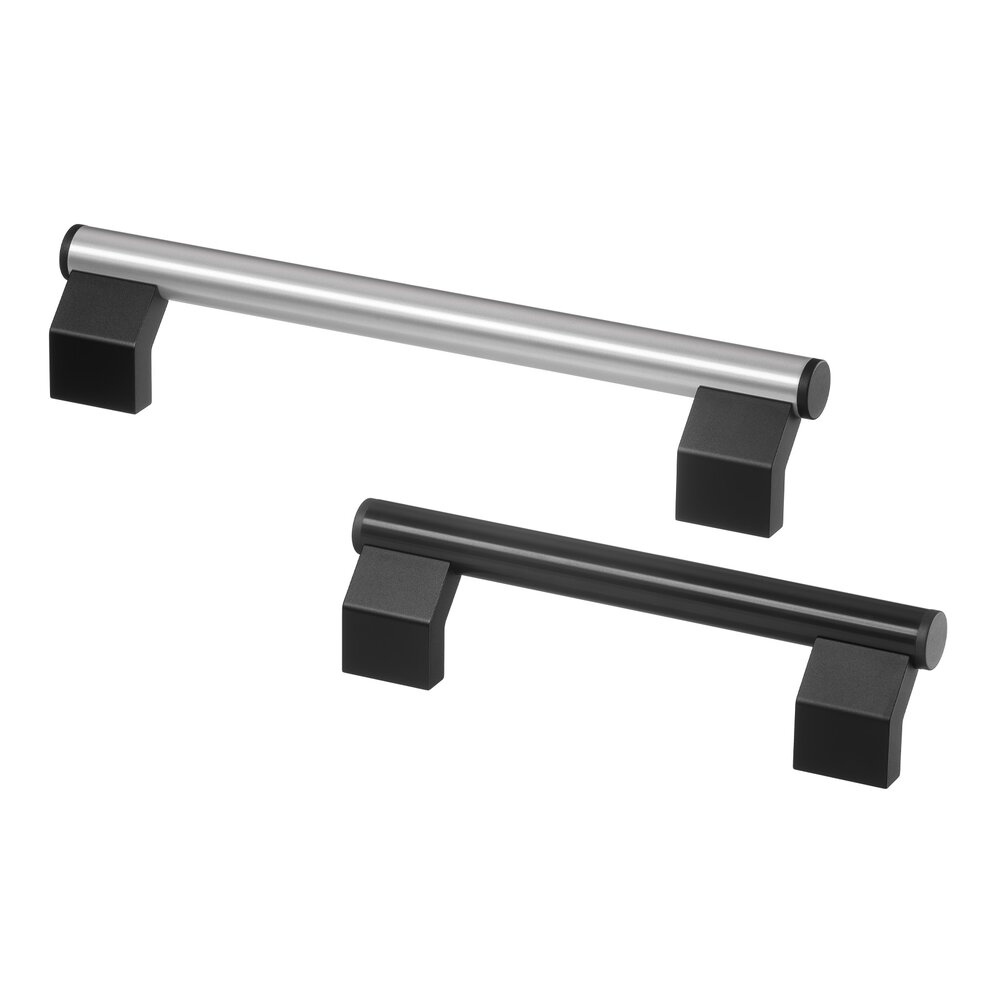

Handles WR

Tubular angled handles in various material combinations.

Material and surface:

Version A
Handle shanks, connecting tube and end caps of extruded aluminium AIMgSi 0.5. Fixing sleeves of anodized aluminium, clamping screws and pegs of stainless steel. Handle shanks anodized with dull bright finish, connecting tube fine ground and anodized.
Handle finish in natural colour or black.

Version B
Handle shanks of extruded aluminium AlMgSi 0.5; with black anodized dull bright finish. Connection tube and end caps of stainless steel, internal fixing parts as version A.

Note:
Other handle lengths or colour combination on request.

Stress resistance:
min. 1000 N.

WR-30
Unit of measure
			Type
Handle Shank Color	A	L	Anodizing version natural-colored Order-No.	Anodized aluminum black Order-No.
Handle Shank Colornatural colored	A200	L264	Anodizing version natural-colored Order-No. WR-H30.200.N01 3D+CAD	Anodized aluminum black Order-No. WR-H30.200.N04 3D+CAD
Handle Shank Colornatural colored	A250	L314	Anodizing version natural-colored Order-No. WR-H30.250.N01 3D+CAD	Anodized aluminum black Order-No. WR-H30.250.N04 3D+CAD
Handle Shank Colornatural colored	A300	L364	Anodizing version natural-colored Order-No. WR-H30.300.N01 3D+CAD	Anodized aluminum black Order-No. WR-H30.300.N04 3D+CAD
Handle Shank Colornatural colored	A350	L414	Anodizing version natural-colored Order-No. WR-H30.350.N01 3D+CAD	Anodized aluminum black Order-No. WR-H30.350.N04 3D+CAD
Handle Shank Colornatural colored	A400	L464	Anodizing version natural-colored Order-No. WR-H30.400.N01 3D+CAD	Anodized aluminum black Order-No. WR-H30.400.N04 3D+CAD
Handle Shank Colornatural colored	A500	L564	Anodizing version natural-colored Order-No. WR-H30.500.N01 3D+CAD	Anodized aluminum black Order-No. WR-H30.500.N04 3D+CAD
Handle Shank Colornatural colored	A600	L664	Anodizing version natural-colored Order-No. WR-H30.600.N01 3D+CAD	Anodized aluminum black Order-No. WR-H30.600.N04 3D+CAD
Handle Shank Colorblack	A200	L264	Anodizing version natural-colored Order-No. WR-H30.200.S01 3D+CAD	Anodized aluminum black Order-No. WR-H30.200.S04 3D+CAD
Handle Shank Colorblack	A250	L314	Anodizing version natural-colored Order-No. WR-H30.250.S01 3D+CAD	Anodized aluminum black Order-No. WR-H30.250.S04 3D+CAD
Handle Shank Colorblack	A300	L364	Anodizing version natural-colored Order-No. WR-H30.300.S01 3D+CAD	Anodized aluminum black Order-No. WR-H30.300.S04 3D+CAD
Handle Shank Colorblack	A350	L414	Anodizing version natural-colored Order-No. WR-H30.350.S01 3D+CAD	Anodized aluminum black Order-No. WR-H30.350.S04 3D+CAD
Handle Shank Colorblack	A400	L464	Anodizing version natural-colored Order-No. WR-H30.400.S01 3D+CAD	Anodized aluminum black Order-No. WR-H30.400.S04 3D+CAD
Handle Shank Colorblack	A500	L564	Anodizing version natural-colored Order-No. WR-H30.500.S01 3D+CAD	Anodized aluminum black Order-No. WR-H30.500.S04 3D+CAD
Handle Shank Colorblack	A600	L664	Anodizing version natural-colored Order-No. WR-H30.600.S01 3D+CAD	Anodized aluminum black Order-No. WR-H30.600SN04 3D+CAD
