Handles A7
Material and surface:
Handle shanks made of extruded aluminium AlMgSi 0.5; glass ball blasted and anodized in natural or black colour, satin finished. Connection profile made of aluminium AlMgSi 0.5 anodized in natural or black colour, satin finished or stainless steel 1.4307; ground and brushed with dull bright finish.

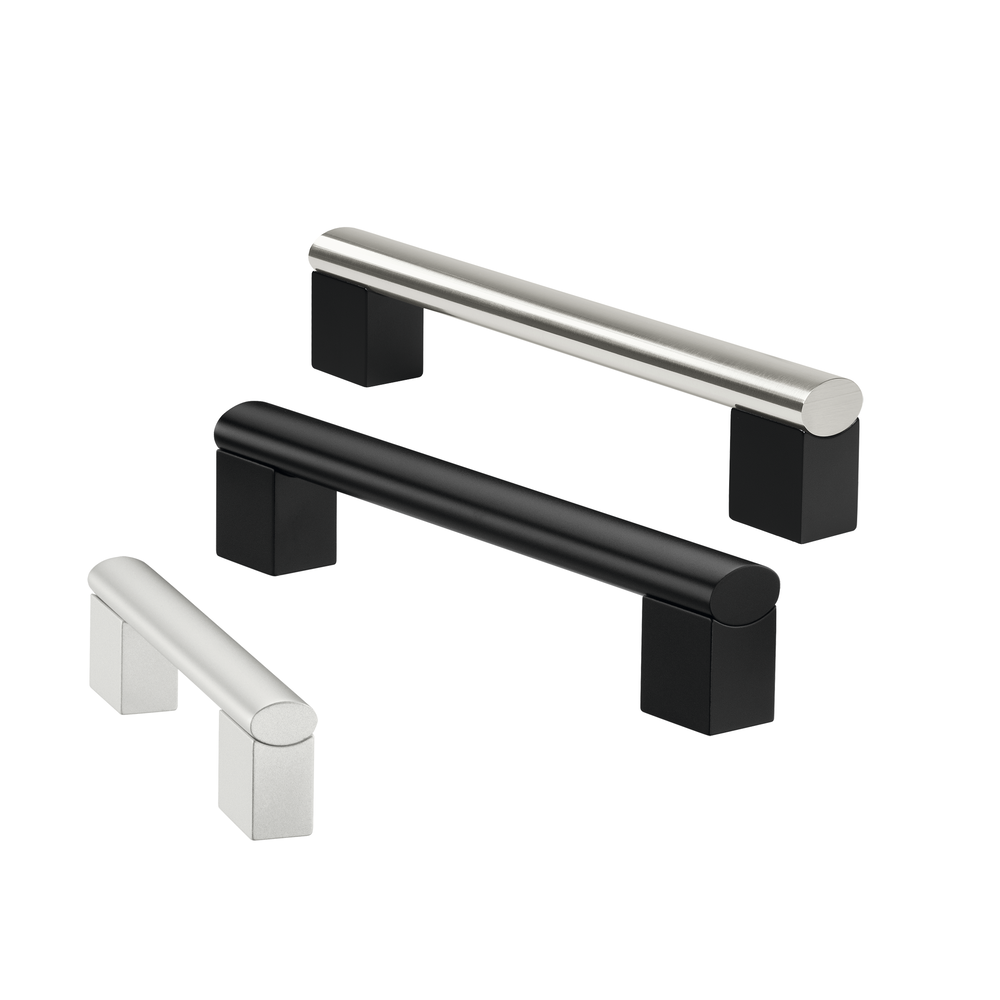

Version R:
Screw attachment from behind.

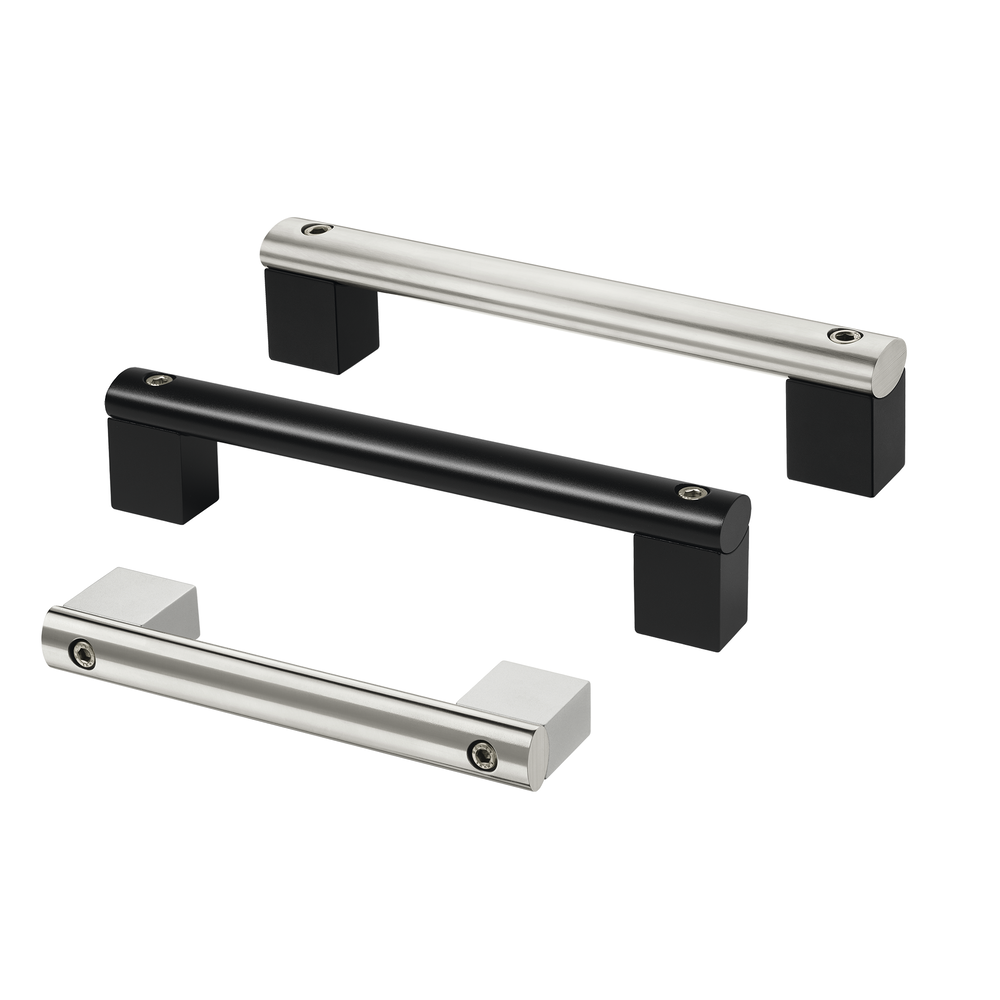

Version F:
Screw attachment from the front by stainless steel cylinder head socket screws DIN 912, nuts DIN 934 and washers DIN 125 (included in scope of supply).
Note:
Further handle lengths and combinations on request.
Stress resistance:
min. 1000 N.
Auf Anfrage
- andere Grifflängen
- weitere Farbausführungen
- Beschriftung
- Griffe in Ihrem Design
Version A7-13.F
|
Unit of measure
|
|||||
|---|---|---|---|---|---|
| Type | |||||
| Product Type | A | Leg colour |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
Brushed stainless steel
Order-No. |
| Product Type | A | Leg colour |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
Brushed stainless steel
Order-No. |
|---|---|---|---|---|---|
| Product Type A7-13.F | A 100 | Leg colour natural |
Anodizing version natural-colored with satin finish
Order-No. A7-13.F100.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. — |
Brushed stainless steel
Order-No. A7-13.F100.N33 3D+CAD |
| Product Type A7-13.F | A 100 | Leg colour black |
Anodizing version natural-colored with satin finish
Order-No. — |
Anodized aluminum black with satin finish
Order-No. A7-13.F100.14 3D+CAD |
Brushed stainless steel
Order-No. A7-13.F100.S33 3D+CAD |
| Product Type A7-13.F | A 120 | Leg colour natural |
Anodizing version natural-colored with satin finish
Order-No. A7-13.F120.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. — |
Brushed stainless steel
Order-No. A7-13.F120.N33 3D+CAD |
| Product Type A7-13.F | A 120 | Leg colour black |
Anodizing version natural-colored with satin finish
Order-No. — |
Anodized aluminum black with satin finish
Order-No. A7-13.F120.14 3D+CAD |
Brushed stainless steel
Order-No. A7-13.F120.S33 3D+CAD |
| Product Type A7-13.F | A 140 | Leg colour natural |
Anodizing version natural-colored with satin finish
Order-No. A7-13.F140.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. — |
Brushed stainless steel
Order-No. A7-13.F140.N33 3D+CAD |
| Product Type A7-13.F | A 140 | Leg colour black |
Anodizing version natural-colored with satin finish
Order-No. — |
Anodized aluminum black with satin finish
Order-No. A7-13.F140.14 3D+CAD |
Brushed stainless steel
Order-No. A7-13.F140.S33 3D+CAD |
Version A7-13.R
|
Unit of measure
|
|||||
|---|---|---|---|---|---|
| Type | |||||
| Product Type | A | Leg colour |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
Brushed stainless steel
Order-No. |
| Product Type | A | Leg colour |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
Brushed stainless steel
Order-No. |
|---|---|---|---|---|---|
| Product Type A7-13.R | A 100 | Leg colour natural |
Anodizing version natural-colored with satin finish
Order-No. A7-13.R100.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. — |
Brushed stainless steel
Order-No. A7-13.R100.N33 3D+CAD |
| Product Type A7-13.R | A 100 | Leg colour black |
Anodizing version natural-colored with satin finish
Order-No. — |
Anodized aluminum black with satin finish
Order-No. A7-13.R100.14 3D+CAD |
Brushed stainless steel
Order-No. A7-13.R100.S33 3D+CAD |
| Product Type A7-13.R | A 120 | Leg colour natural |
Anodizing version natural-colored with satin finish
Order-No. A7-13.R120.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. — |
Brushed stainless steel
Order-No. A7-13.R120.N33 3D+CAD |
| Product Type A7-13.R | A 120 | Leg colour black |
Anodizing version natural-colored with satin finish
Order-No. — |
Anodized aluminum black with satin finish
Order-No. A7-13.R120.14 3D+CAD |
Brushed stainless steel
Order-No. A7-13.R120.S33 3D+CAD |
| Product Type A7-13.R | A 140 | Leg colour natural |
Anodizing version natural-colored with satin finish
Order-No. A7-13.R140.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. — |
Brushed stainless steel
Order-No. A7-13.R140.N33 3D+CAD |
| Product Type A7-13.R | A 140 | Leg colour black |
Anodizing version natural-colored with satin finish
Order-No. — |
Anodized aluminum black with satin finish
Order-No. A7-13.R140.14 3D+CAD |
Brushed stainless steel
Order-No. A7-13.R140.S33 3D+CAD |
Version A7-17.F
|
Unit of measure
|
|||||
|---|---|---|---|---|---|
| Type | |||||
| Product Type | A | Leg colour |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
Brushed stainless steel
Order-No. |
| Product Type | A | Leg colour |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
Brushed stainless steel
Order-No. |
|---|---|---|---|---|---|
| Product Type A7-17.F | A 140 | Leg colour natural |
Anodizing version natural-colored with satin finish
Order-No. A7-17.F140.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. A7-17.F140.14 3D+CAD |
Brushed stainless steel
Order-No. A7-17.F140.N33 3D+CAD |
| Product Type A7-17.F | A 140 | Leg colour black |
Anodizing version natural-colored with satin finish
Order-No. — |
Anodized aluminum black with satin finish
Order-No. — |
Brushed stainless steel
Order-No. A7-17.F140.S33 3D+CAD |
| Product Type A7-17.F | A 200 | Leg colour natural |
Anodizing version natural-colored with satin finish
Order-No. A7-17.F200.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. — |
Brushed stainless steel
Order-No. A7-17.F200.N33 3D+CAD |
| Product Type A7-17.F | A 200 | Leg colour black |
Anodizing version natural-colored with satin finish
Order-No. — |
Anodized aluminum black with satin finish
Order-No. A7-17.F200.14 3D+CAD |
Brushed stainless steel
Order-No. A7-17.F200.S33 3D+CAD |
| Product Type A7-17.F | A 240 | Leg colour natural |
Anodizing version natural-colored with satin finish
Order-No. A7-17.F240.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. — |
Brushed stainless steel
Order-No. A7-17.F240.N33 3D+CAD |
| Product Type A7-17.F | A 240 | Leg colour black |
Anodizing version natural-colored with satin finish
Order-No. — |
Anodized aluminum black with satin finish
Order-No. A7-17.F240.14 3D+CAD |
Brushed stainless steel
Order-No. A7-17.F240.S33 3D+CAD |
Version A7-17.R
|
Unit of measure
|
|||||
|---|---|---|---|---|---|
| Type | |||||
| Product Type | A | Leg colour |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
Brushed stainless steel
Order-No. |
| Product Type | A | Leg colour |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
Brushed stainless steel
Order-No. |
|---|---|---|---|---|---|
| Product Type A7-17.R | A 140 | Leg colour natural |
Anodizing version natural-colored with satin finish
Order-No. A7-17.R140.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. — |
Brushed stainless steel
Order-No. A7-17.R140.N33 3D+CAD |
| Product Type A7-17.R | A 140 | Leg colour black |
Anodizing version natural-colored with satin finish
Order-No. — |
Anodized aluminum black with satin finish
Order-No. A7-17.R140.14 3D+CAD |
Brushed stainless steel
Order-No. A7-17.R140.S33 3D+CAD |
| Product Type A7-17.R | A 200 | Leg colour natural |
Anodizing version natural-colored with satin finish
Order-No. A7-17.R200.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. — |
Brushed stainless steel
Order-No. A7-17.R200.N33 3D+CAD |
| Product Type A7-17.R | A 200 | Leg colour black |
Anodizing version natural-colored with satin finish
Order-No. — |
Anodized aluminum black with satin finish
Order-No. A7-17.R200.14 3D+CAD |
Brushed stainless steel
Order-No. A7-17.R200.S33 3D+CAD |
| Product Type A7-17.R | A 240 | Leg colour natural |
Anodizing version natural-colored with satin finish
Order-No. A7-17.R240.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. — |
Brushed stainless steel
Order-No. A7-17.R240.N33 3D+CAD |
| Product Type A7-17.R | A 240 | Leg colour black |
Anodizing version natural-colored with satin finish
Order-No. — |
Anodized aluminum black with satin finish
Order-No. A7-17.R240.14 3D+CAD |
Brushed stainless steel
Order-No. A7-17.R240.S33 3D+CAD |
