Handles UG-06
Material and surface:
Handle shank of polyamide PA 6, glass ball reinforced, black, half- matt with fine structure. Threaded brass bushings. Connecting tube ø 12 x 1 mm of aluminium AlMgSi 0.5; natural coloured or black anodi- zed with dull bright finish or made of stainless steel, material no. 1.4301; fine ground.
Note:
Other handle lengths on request.
Stress resistance:
min. 200 N.
On request
- other handle lengths
- more color versions
- Labeling
- handles in your design
|
Unit of measure
|
||||
|---|---|---|---|---|
| Version of grip ledge | ||||
| A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
Polished stainless steel
Order-No. |
| A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
Polished stainless steel
Order-No. |
|---|---|---|---|---|
| A 88 | L 100 |

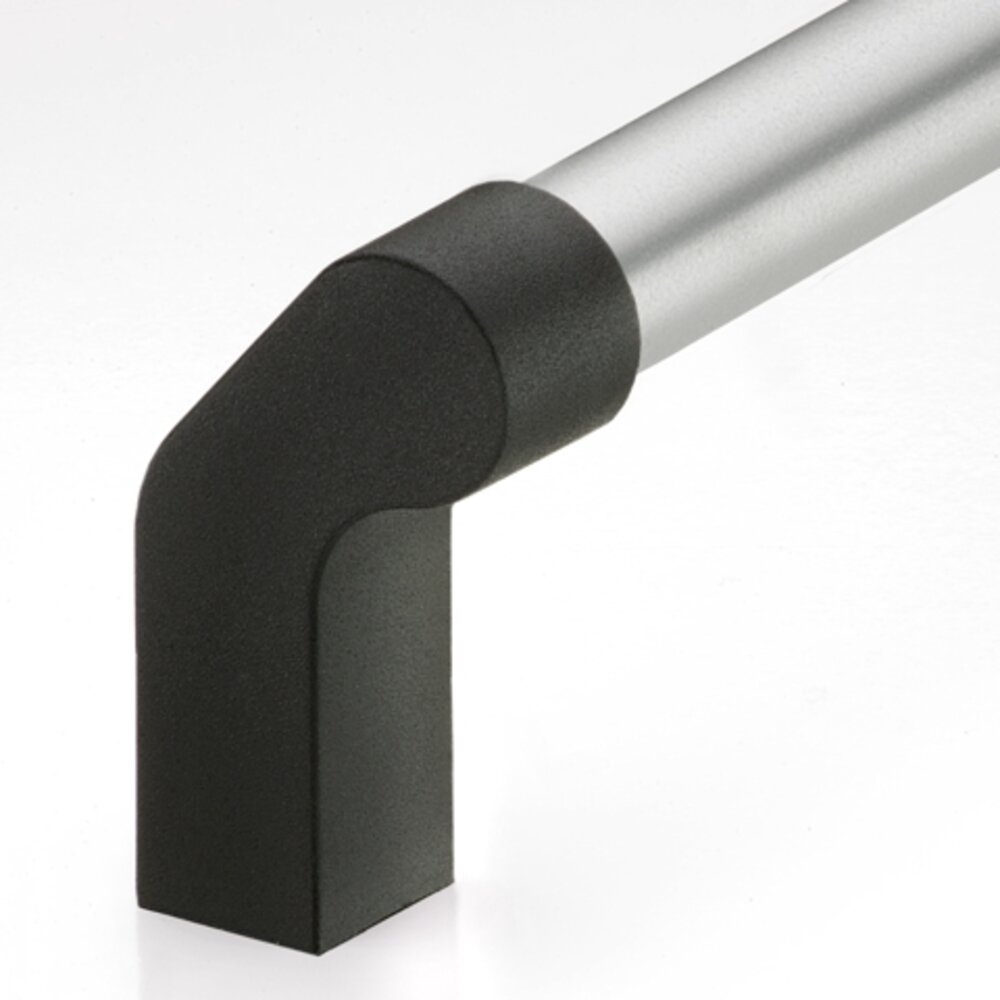

Anodizing version natural-colored
Order-No. UG-06.088.01 3D+CAD |

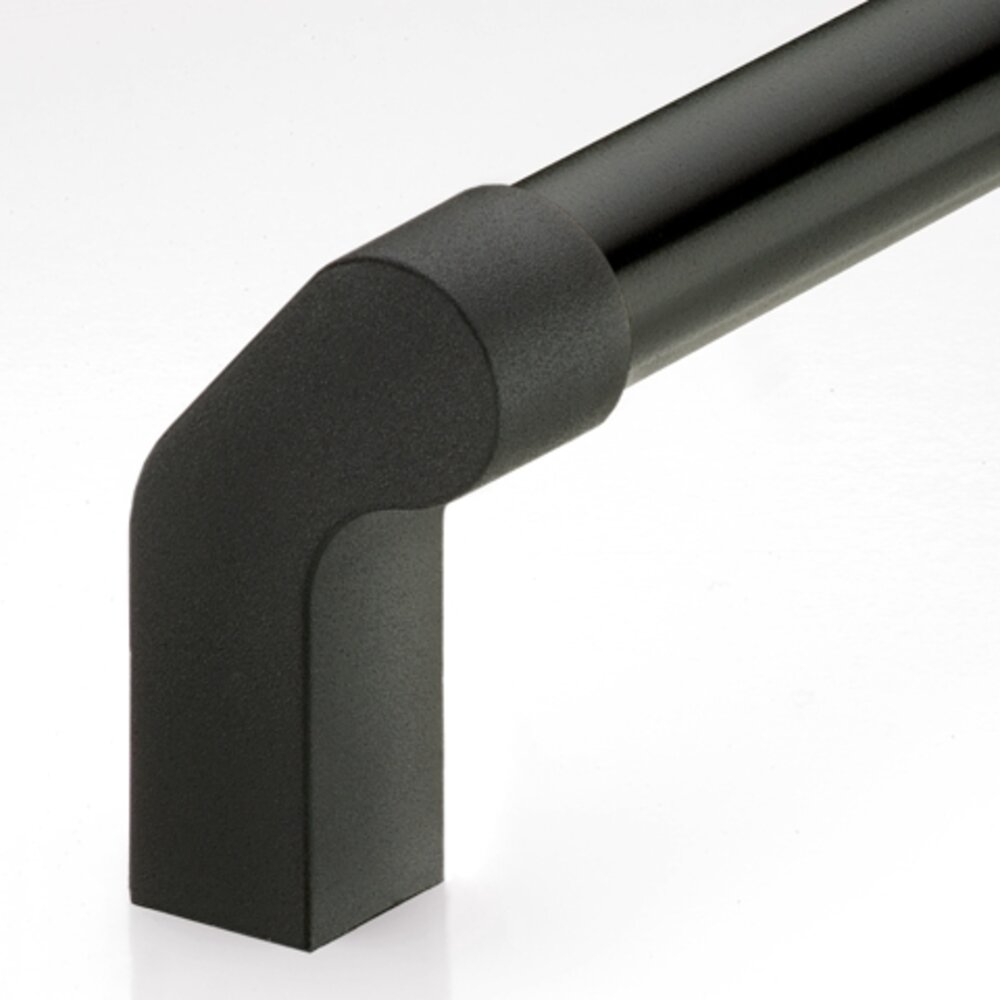

Anodized aluminum black
Order-No. UG-06.088.04 3D+CAD |

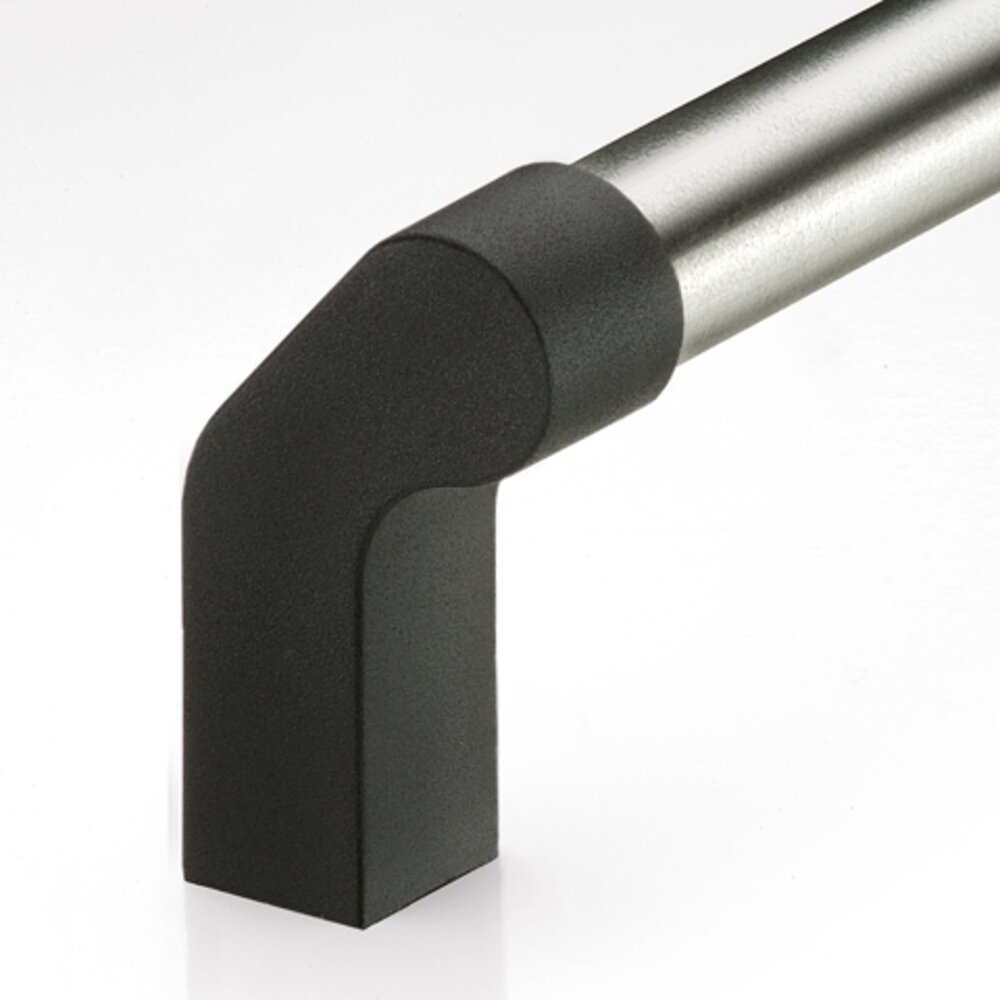

Polished stainless steel
Order-No. UG-06.088.37 3D+CAD |
| A 96 | L 108 |
Anodizing version natural-colored
Order-No. UG-06.096.01 3D+CAD |
Anodized aluminum black
Order-No. UG-06.096.04 3D+CAD |
Polished stainless steel
Order-No. UG-06.096.37 3D+CAD |
| A 120 | L 132 |
Anodizing version natural-colored
Order-No. UG-06.120.01 3D+CAD |
Anodized aluminum black
Order-No. UG-06.120.04 3D+CAD |
Polished stainless steel
Order-No. UG-06.120.37 3D+CAD |
| A 128 | L 140 |
Anodizing version natural-colored
Order-No. UG-06.128.01 3D+CAD |
Anodized aluminum black
Order-No. UG-06.128.04 3D+CAD |
Polished stainless steel
Order-No. UG-06.128.37 3D+CAD |
| A 160 | L 172 |
Anodizing version natural-colored
Order-No. UG-06.160.01 3D+CAD |
Anodized aluminum black
Order-No. UG-06.160.04 3D+CAD |
Polished stainless steel
Order-No. UG-06.160.37 3D+CAD |
| A 180 | L 192 |
Anodizing version natural-colored
Order-No. UG-06.180.01 3D+CAD |
Anodized aluminum black
Order-No. UG-06.180.04 3D+CAD |
Polished stainless steel
Order-No. UG-06.180.37 3D+CAD |
| A 200 | L 212 |
Anodizing version natural-colored
Order-No. UG-06.200.01 3D+CAD |
Anodized aluminum black
Order-No. UG-06.200.04 3D+CAD |
Polished stainless steel
Order-No. UG-06.200.37 3D+CAD |
| A 235 | L 247 |
Anodizing version natural-colored
Order-No. UG-06.235.01 3D+CAD |
Anodized aluminum black
Order-No. UG-06.235.04 3D+CAD |
Polished stainless steel
Order-No. UG-06.235.37 3D+CAD |
| A 250 | L 262 |
Anodizing version natural-colored
Order-No. UG-06.250.01 3D+CAD |
Anodized aluminum black
Order-No. UG-06.250.04 3D+CAD |
Polished stainless steel
Order-No. UG-06.250.37 3D+CAD |
