Handles W2

product details

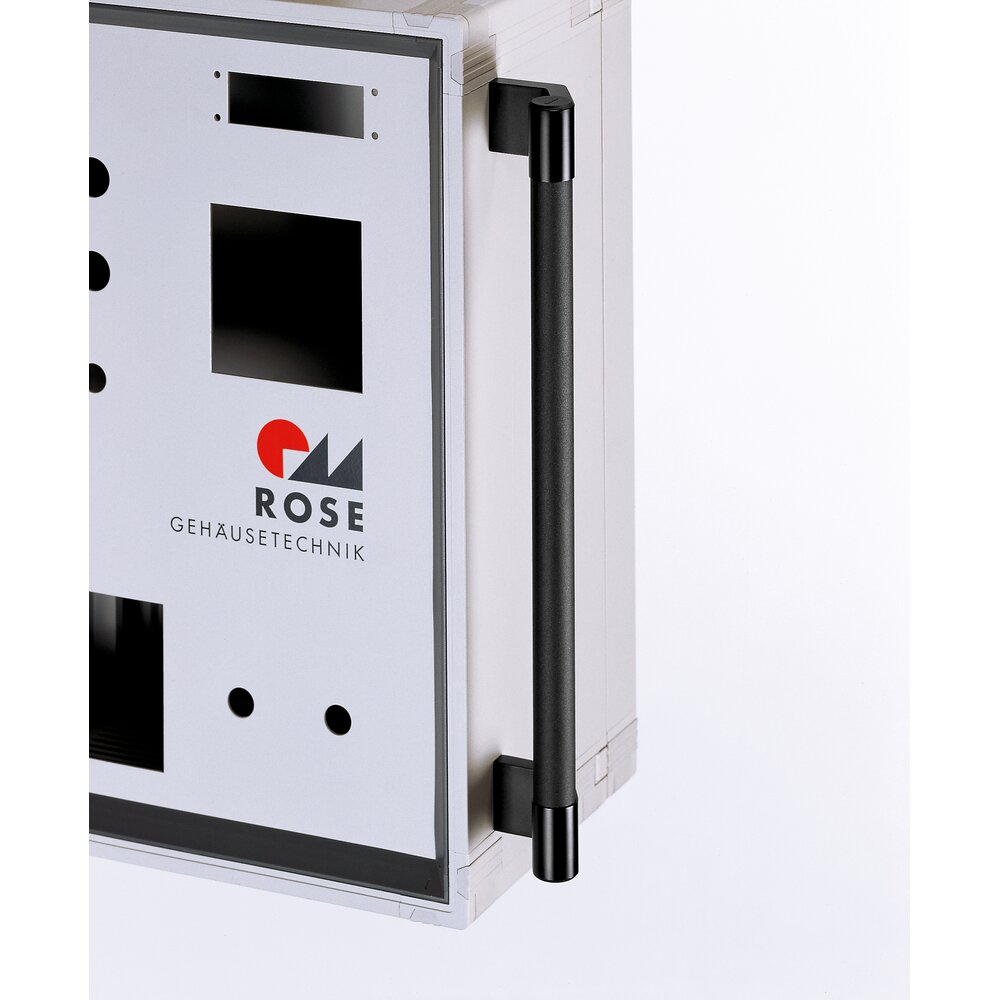

Technical design similar to the insertion handle system W1 but with larger dimensions for the housing.

Material and surface:
Handle shank of extruded aluminium AlMgSi 0.5 with satin finish, black anodized. Shank insert of polyamide PA6, glass bead rein- forcement, black. Visible surfaces with fine structure. Connecting tubes of ø30x1.5 mm aluminium AlMgSi 0.5; fine ground and anodized in 2 colours resp. with a black grooved plastic coating resp. black or titanium coloured powder coated with fine structure.

Note:
All handle lengths available on request.

Stress resistance:
min. 1000 N.

show more show less

Unit of measure
		Type
A	L	Anodizing version natural-colored Order-No.	Anodized aluminum black Order-No.	matt chrome plated Order-No.	powder coated black Order-No.	Aluminum powder coated titanium colored Order-No.	Aluminum with corrugated plastic coating Order-No.

A	L	Anodizing version natural-colored Order-No.	Anodized aluminum black Order-No.	matt chrome plated Order-No.	powder coated black Order-No.	Aluminum powder coated titanium colored Order-No.	Aluminum with corrugated plastic coating Order-No.
A 200	L 250	Anodizing version natural-colored Order-No. W2-30.200.01 3D+CAD	Anodized aluminum black Order-No. W2-30.200.04 3D+CAD	matt chrome plated Order-No. W2-30.200.27 3D+CAD	powder coated black Order-No. W2-30.200.54 3D+CAD	Aluminum powder coated titanium colored Order-No. W2-30.200.55 3D+CAD	Aluminum with corrugated plastic coating Order-No. W2-30.200.63 3D+CAD
A 250	L 300	Anodizing version natural-colored Order-No. W2-30.250.01 3D+CAD	Anodized aluminum black Order-No. W2-30.250.04 3D+CAD	matt chrome plated Order-No. W2-30.250.27 3D+CAD	powder coated black Order-No. W2-30.250.54 3D+CAD	Aluminum powder coated titanium colored Order-No. W2-30.250.55 3D+CAD	Aluminum with corrugated plastic coating Order-No. W2-30.250.63 3D+CAD
A 300	L 350	Anodizing version natural-colored Order-No. W2-30.300.01 3D+CAD	Anodized aluminum black Order-No. W2-30.300.04 3D+CAD	matt chrome plated Order-No. W2-30.300.27 3D+CAD	powder coated black Order-No. W2-30.300.54 3D+CAD	Aluminum powder coated titanium colored Order-No. W2-30.300.55 3D+CAD	Aluminum with corrugated plastic coating Order-No. W2-30.300.63 3D+CAD
A 350	L 400	Anodizing version natural-colored Order-No. W2-30.350.01 3D+CAD	Anodized aluminum black Order-No. W2-30.350.04 3D+CAD	matt chrome plated Order-No. W2-30.350.27 3D+CAD	powder coated black Order-No. W2-30.350.54 3D+CAD	Aluminum powder coated titanium colored Order-No. W2-30.350.55 3D+CAD	Aluminum with corrugated plastic coating Order-No. W2-30.350.63 3D+CAD
A 400	L 450	Anodizing version natural-colored Order-No. W2-30.400.01 3D+CAD	Anodized aluminum black Order-No. W2-30.400.04 3D+CAD	matt chrome plated Order-No. W2-30.400.27 3D+CAD	powder coated black Order-No. W2-30.400.54 3D+CAD	Aluminum powder coated titanium colored Order-No. W2-30.400.55 3D+CAD	Aluminum with corrugated plastic coating Order-No. W2-30.400.63 3D+CAD
A 500	L 550	Anodizing version natural-colored Order-No. W2-30.500.01 3D+CAD	Anodized aluminum black Order-No. W2-30.500.04 3D+CAD	matt chrome plated Order-No. W2-30.500.27 3D+CAD	powder coated black Order-No. W2-30.500.54 3D+CAD	Aluminum powder coated titanium colored Order-No. W2-30.500.55 3D+CAD	Aluminum with corrugated plastic coating Order-No. W2-30.500.63 3D+CAD
A 600	L 650	Anodizing version natural-colored Order-No. W2-30.600.01 3D+CAD	Anodized aluminum black Order-No. W2-30.600.04 3D+CAD	matt chrome plated Order-No. W2-30.600.27 3D+CAD	powder coated black Order-No. W2-30.600.54 3D+CAD	Aluminum powder coated titanium colored Order-No. W2-30.600.55 3D+CAD	Aluminum with corrugated plastic coating Order-No. W2-30.600.63 3D+CAD
