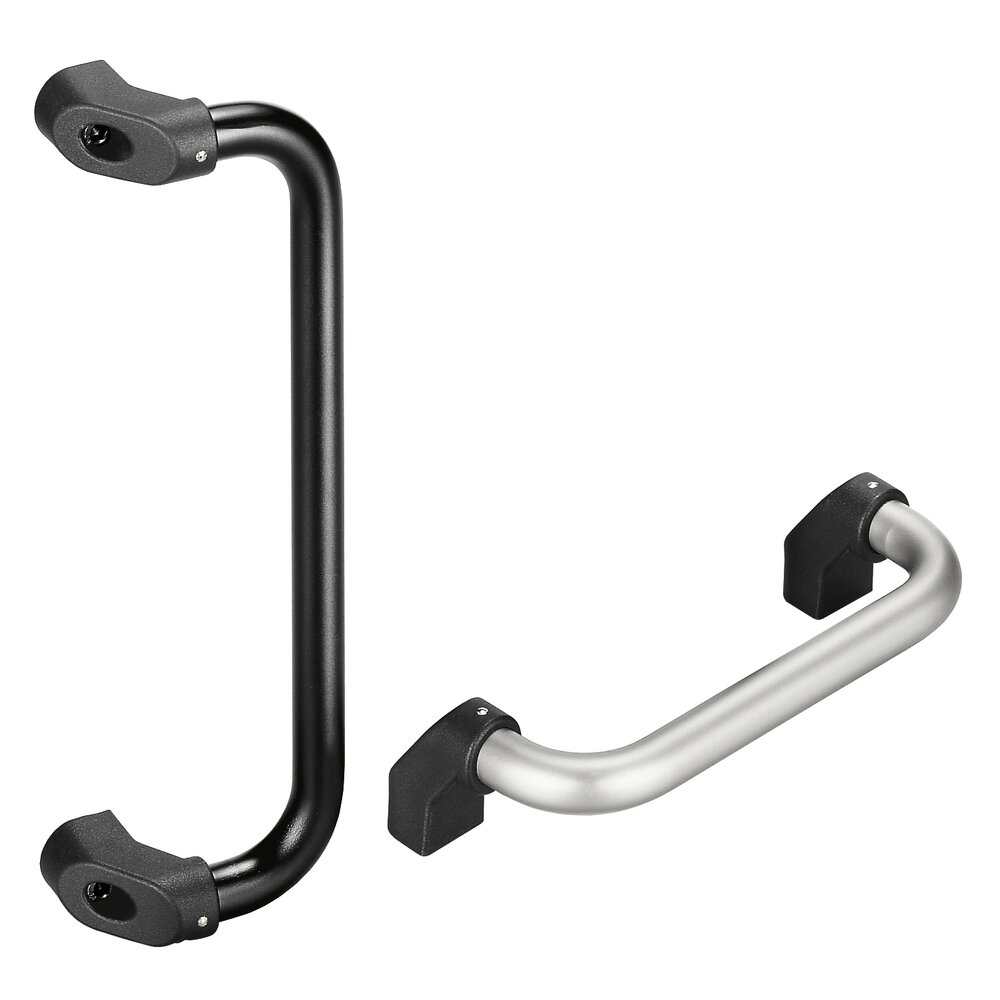

Handles M3
Offset machine handles for front sided screw attachment.
Material and surface:
Connecting bow from Ø20 or Ø30 round aluminium AlMgSI 0.5 satimatt anodized, in 2 colours. Alternatively black powder coated.
Scope of delivery:
Includes black galvanized cheese head screws (chromium VI free) with hexagon sockets M8x30 or M10x45 DIN 912 and galvanized nuts DIN 934 with washers DIN 125.
Stress resistance:
min. 800 N.
Version M3-20
|
Unit of measure
|
|||
|---|---|---|---|
| Type | |||
| A |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
powder coated black
Order-No. |
| A |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
powder coated black
Order-No. |
|---|---|---|---|
| A 200 |
Anodizing version natural-colored with satin finish
Order-No. M3-20.A200.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. M3-20.A200.14 3D+CAD |
powder coated black
Order-No. M3-20.A200.54 3D+CAD |
| A 250 |
Anodizing version natural-colored with satin finish
Order-No. M3-20.A250.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. M3-20.A250.14 3D+CAD |
powder coated black
Order-No. M3-20.A250.54 3D+CAD |
| A 300 |
Anodizing version natural-colored with satin finish
Order-No. M3-20.A300.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. M3-20.A300.14 3D+CAD |
powder coated black
Order-No. M3-20.A300.54 3D+CAD |
| A 350 |
Anodizing version natural-colored with satin finish
Order-No. M3-20.A350.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. M3-20.A350.14 3D+CAD |
powder coated black
Order-No. M3-20.A350.54 3D+CAD |
| A 400 |
Anodizing version natural-colored with satin finish
Order-No. M3-20.A400.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. M3-20.A400.14 3D+CAD |
powder coated black
Order-No. M3-20.A400.54 3D+CAD |
Version M3-30
|
Unit of measure
|
|||
|---|---|---|---|
| Type | |||
| A |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
powder coated black
Order-No. |
| A |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
powder coated black
Order-No. |
|---|---|---|---|
| A 300 |
Anodizing version natural-colored with satin finish
Order-No. M3-30.A300.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. M3-30.A300.14 3D+CAD |
powder coated black
Order-No. M3-30.A300.54 3D+CAD |
| A 400 |
Anodizing version natural-colored with satin finish
Order-No. M3-30.A400.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. M3-30.A400.14 3D+CAD |
powder coated black
Order-No. M3-30.A400.54 3D+CAD |
