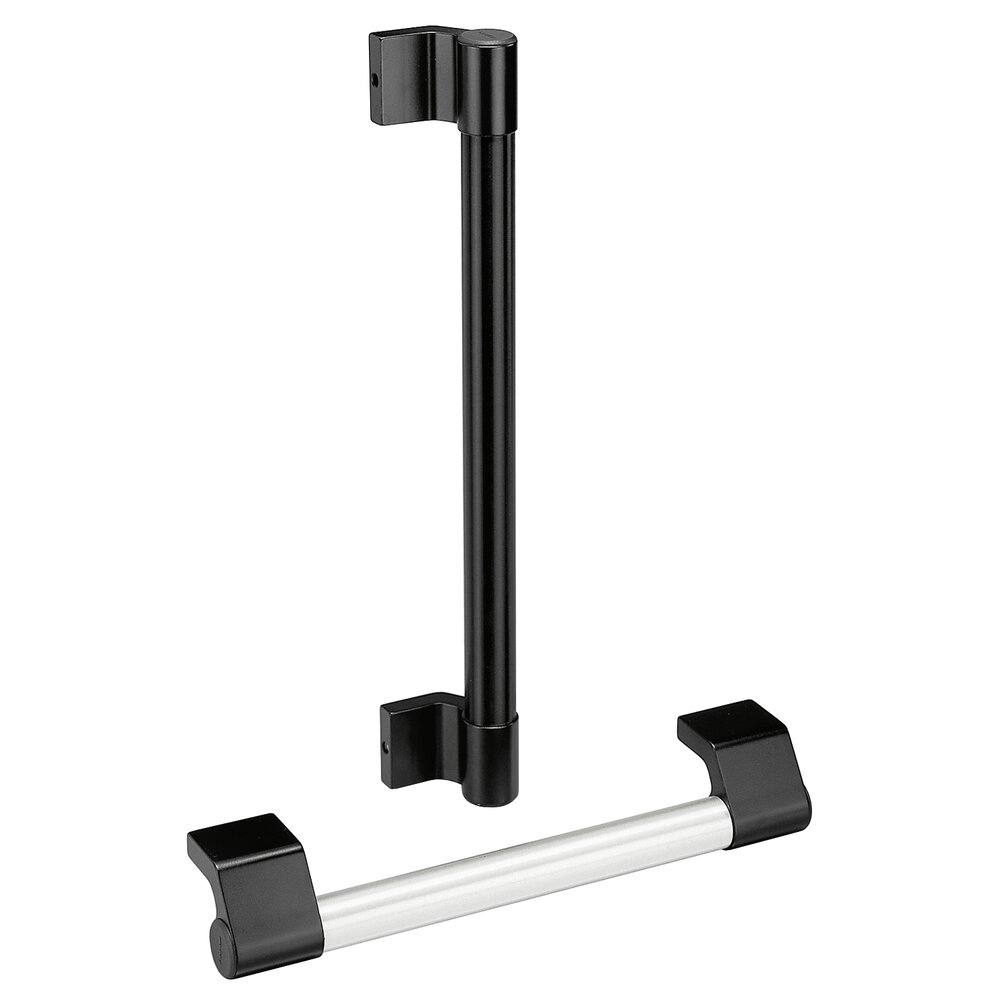

Handles W5
Similar to handle system W1, but with wider shanks. Available as completely assembled handles or with handle shanks resp. tubes as single components.
Material and surface:
Handle shanks made of extruded aluminium AlMgSi 0.5; black anodized with a matt finish. Shank insert made of polyamide PA6, glass ball reinforced, black, visible surface with fine structure. Connecting tubes ø30x1.5 mm aluminium AlMgSi 0.5; fine ground and anodized in 2 colours resp. with a grooved black plastic cover or black powder coated with fine structure.
Design features:
Suitable for any handle length by using connecting shanks. Firm and splashproof tube fit.
Note:
Any desired handle lengths on request.
Stress resistance:
min. 1000 N.
|
Unit of measure
|
|||||
|---|---|---|---|---|---|
| Type | |||||
| A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
powder coated black
Order-No. |
Aluminum with corrugated plastic coating
Order-No. |
| A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
powder coated black
Order-No. |
Aluminum with corrugated plastic coating
Order-No. |
|---|---|---|---|---|---|
| A 200 | L 250 |
Anodizing version natural-colored
Order-No. W5-30.R200.S01 3D+CAD |
Anodized aluminum black
Order-No. W5-30.R200.S04 3D+CAD |
powder coated black
Order-No. W5-30.R200.S54 3D+CAD |
Aluminum with corrugated plastic coating
Order-No. W5-30.R200.S63 3D+CAD |
| A 250 | L 300 |
Anodizing version natural-colored
Order-No. W5-30.R250.S01 3D+CAD |
Anodized aluminum black
Order-No. W5-30.R250.S04 3D+CAD |
powder coated black
Order-No. W5-30.R250.S54 3D+CAD |
Aluminum with corrugated plastic coating
Order-No. W5-30.R250.S63 3D+CAD |
| A 300 | L 350 |
Anodizing version natural-colored
Order-No. W5-30.R300.S01 3D+CAD |
Anodized aluminum black
Order-No. W5-30.R300.S04 3D+CAD |
powder coated black
Order-No. W5-30.R300.S54 3D+CAD |
Aluminum with corrugated plastic coating
Order-No. W5-30.R300.S63 3D+CAD |
| A 350 | L 400 |
Anodizing version natural-colored
Order-No. W5-30.R350.S01 3D+CAD |
Anodized aluminum black
Order-No. W5-30.R350.S04 3D+CAD |
powder coated black
Order-No. W5-30.R350.S54 3D+CAD |
Aluminum with corrugated plastic coating
Order-No. W5-30.R350.S63 3D+CAD |
| A 400 | L 450 |
Anodizing version natural-colored
Order-No. W5-30.R400.S01 3D+CAD |
Anodized aluminum black
Order-No. W5-30.R400.S04 3D+CAD |
powder coated black
Order-No. W5-30.R400.S54 3D+CAD |
Aluminum with corrugated plastic coating
Order-No. W5-30.R400.S63 3D+CAD |
| A 500 | L 550 |
Anodizing version natural-colored
Order-No. W5-30.R500.S01 3D+CAD |
Anodized aluminum black
Order-No. W5-30.R500.S04 3D+CAD |
powder coated black
Order-No. W5-30.R500.S54 3D+CAD |
Aluminum with corrugated plastic coating
Order-No. W5-30.R500.S63 3D+CAD |
| A 600 | L 650 |
Anodizing version natural-colored
Order-No. W5-30.R600.S01 3D+CAD |
Anodized aluminum black
Order-No. W5-30.R600.S04 3D+CAD |
powder coated black
Order-No. W5-30.R600.S54 3D+CAD |
Aluminum with corrugated plastic coating
Order-No. W5-30.R600.S63 3D+CAD |
| Single parts | Color | Order-No. |
|---|---|---|
| Single parts | Color | Order-No. |
|---|---|---|
| Single parts Connecting shank | Color black | Order-No. W1-30.VR25.14 |
| Single parts Handle shank, left | Color black | Order-No. W5-30.LR50.14 |
| Single parts Handle shank, right | Color black | Order-No. W5-30.RR50.14 |
| Single parts Tube 1m, Ø 30 x 1,5 | Color natural | Order-No. W1-30.001.01 |
