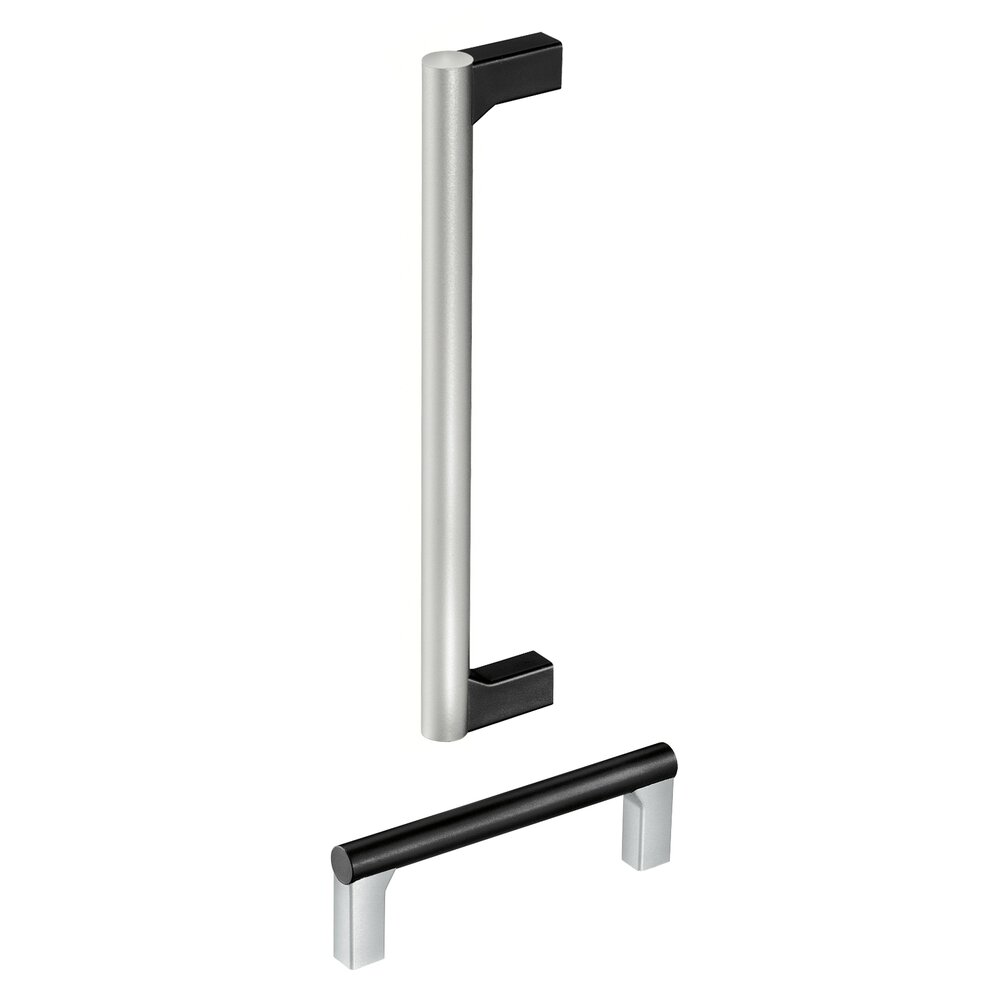

Handles UR
Material and surface:
Handle shanks of glass ball reinforced polyamide PA6, black, similar RAL 9005 or aluminium coloured, half-matt with fine structure. Handle ledge of round bar aluminium AlMgSi 0.5; fine ground and anodized in natural or black colour. Screw down insert made of brass.
Note:
Any other handle lengths and further colour combinations on request.
Stress resistance:
min. 500 N.
On request
- other handle lengths
- more color versions
- Labeling
- handles in your design
Version UR-12
|
Unit of measure
|
||||
|---|---|---|---|---|
| Anodizing version | ||||
| A | L | Leg colour |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
| A | L | Leg colour |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
|---|---|---|---|---|
| A 55 | L 67 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-12.055.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.055.A04 3D+CAD |
| A 55 | L 67 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-12.055.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.055.B04 3D+CAD |
| A 88 | L 100 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-12.088.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.088.A04 3D+CAD |
| A 88 | L 100 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-12.088.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.088.B04 3D+CAD |
| A 100 | L 112 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-12.100.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.100.A04 3D+CAD |
| A 100 | L 112 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-12.100.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.100.B04 3D+CAD |
| A 120 | L 132 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-12.120.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.120.A04 3D+CAD |
| A 120 | L 132 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-12.120.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.120.B04 3D+CAD |
| A 180 | L 192 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-12.180.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.180.A04 3D+CAD |
| A 180 | L 192 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-12.180.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.180.B04 3D+CAD |
| A 200 | L 212 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-12.200.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.200.A04 3D+CAD |
| A 200 | L 212 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-12.200.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.200.B04 3D+CAD |
| A 235 | L 247 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-12.235.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.235.A04 3D+CAD |
| A 235 | L 247 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-12.235.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.235.B04 3D+CAD |
| A 250 | L 262 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-12.250.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.250.A04 3D+CAD |
| A 250 | L 262 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-12.250.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-12.250.B04 3D+CAD |
Version UR-15
|
Unit of measure
|
||||
|---|---|---|---|---|
| Anodizing version | ||||
| A | L | Leg colour |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
| A | L | Leg colour |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
|---|---|---|---|---|
| A 55 | L 70 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-15.055.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.055.A04 3D+CAD |
| A 55 | L 70 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-15.055.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.055.B04 3D+CAD |
| A 88 | L 103 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-15.088.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.088.A04 3D+CAD |
| A 88 | L 103 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-15.088.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.088.B04 3D+CAD |
| A 100 | L 115 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-15.100.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.100.A04 3D+CAD |
| A 100 | L 115 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-15.100.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.100.B04 3D+CAD |
| A 120 | L 135 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-15.120.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.120.A04 3D+CAD |
| A 120 | L 135 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-15.120.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.120.B04 3D+CAD |
| A 180 | L 195 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-15.180.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.180.A04 3D+CAD |
| A 180 | L 195 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-15.180.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.180.B04 3D+CAD |
| A 200 | L 215 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-15.200.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.200.A04 3D+CAD |
| A 200 | L 215 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-15.200.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.200.B04 3D+CAD |
| A 235 | L 250 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-15.235.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.235.A04 3D+CAD |
| A 235 | L 250 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-15.235.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.235.B04 3D+CAD |
| A 250 | L 265 | Leg colour aluminium colored |
Anodizing version natural-colored
Order-No. UR-15.250.A01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.250.A04 3D+CAD |
| A 250 | L 265 | Leg colour black |
Anodizing version natural-colored
Order-No. UR-15.250.B01 3D+CAD |
Anodized aluminum black
Order-No. UR-15.250.B04 3D+CAD |
