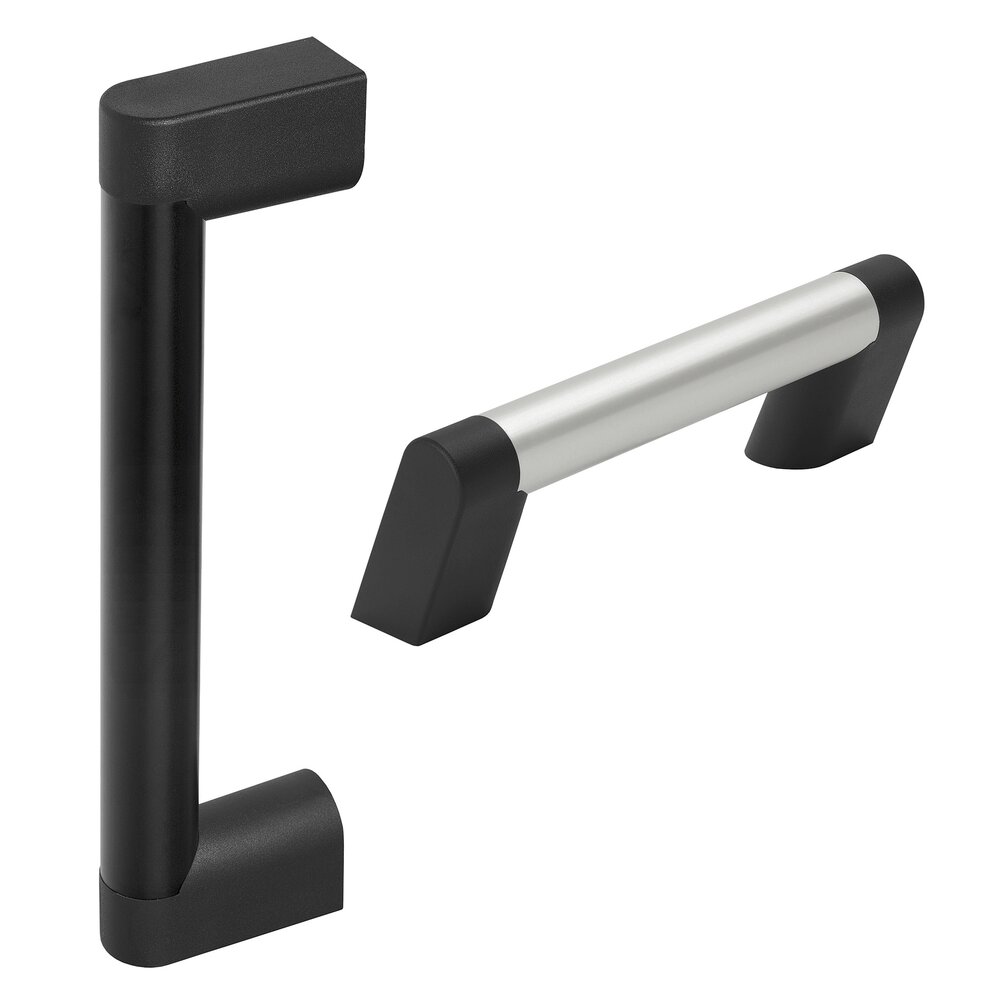

Handles U7
Material and surface:
Handle ledge ø30x5 mm aluminium round tube AlMgSi 0.5; fine ground and natural or black anodized. Handle shanks of polyamide PA6, black with fine structure.
Version:
U7-30.G with straight polyamide shanks and U7-30.S with slanted polyamide shanks.
Note:
Any other handle lengths and anodized versions available on request.
Stress resistance:
min. 600 N.
|
Unit of measure
|
||||
|---|---|---|---|---|
| Type | ||||
| Version | A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
| Version | A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
|---|---|---|---|---|
| Version G | A 160 | L 223 |
Anodizing version natural-colored
Order-No. U7-30.G160.01 3D+CAD |
Anodized aluminum black
Order-No. U7-30.G160.04 3D+CAD |
| Version G | A 220 | L 283 |
Anodizing version natural-colored
Order-No. U7-30.G220.01 3D+CAD |
Anodized aluminum black
Order-No. U7-30.G220.04 3D+CAD |
| Version S | A 160 | L 223 |
Anodizing version natural-colored
Order-No. U7-30.S160.01 3D+CAD |
Anodized aluminum black
Order-No. U7-30.S160.04 3D+CAD |
| Version S | A 220 | L 283 |
Anodizing version natural-colored
Order-No. U7-30.S220.01 3D+CAD |
Anodized aluminum black
Order-No. U7-30.S220.04 3D+CAD |
