Handles U4

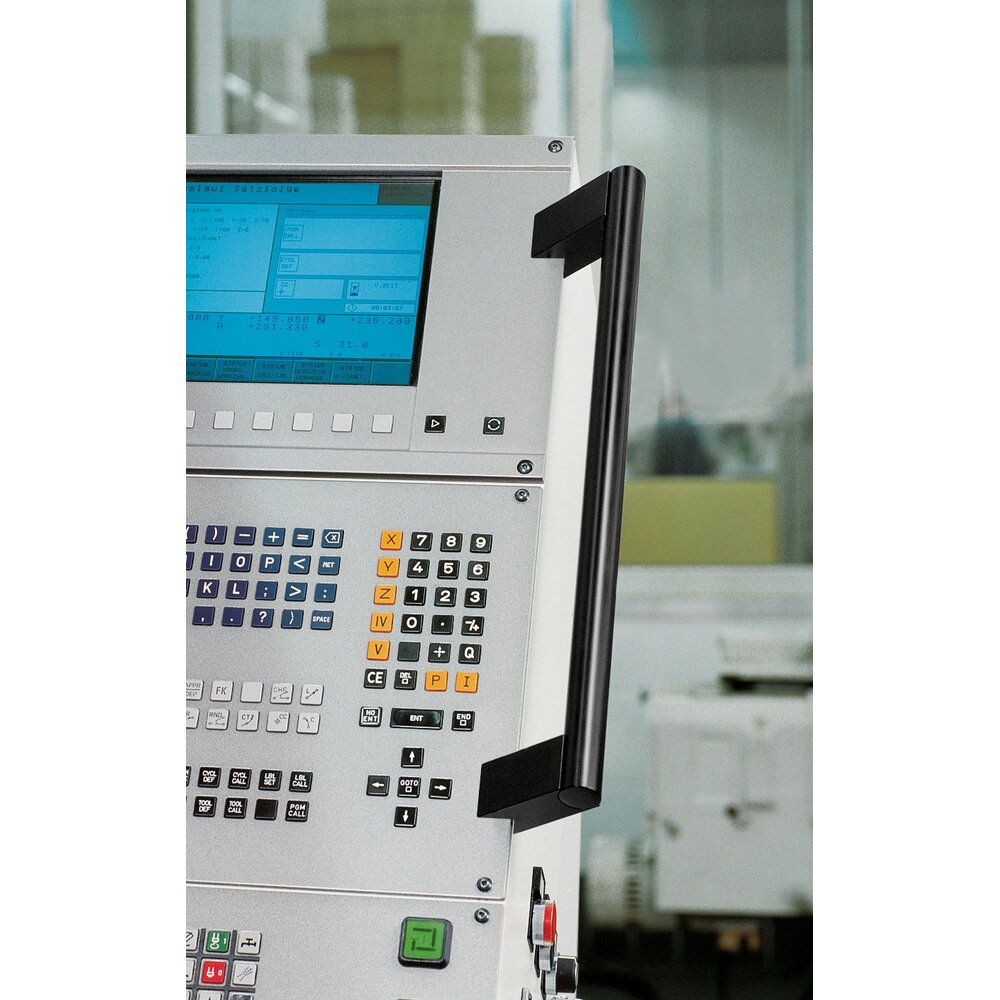

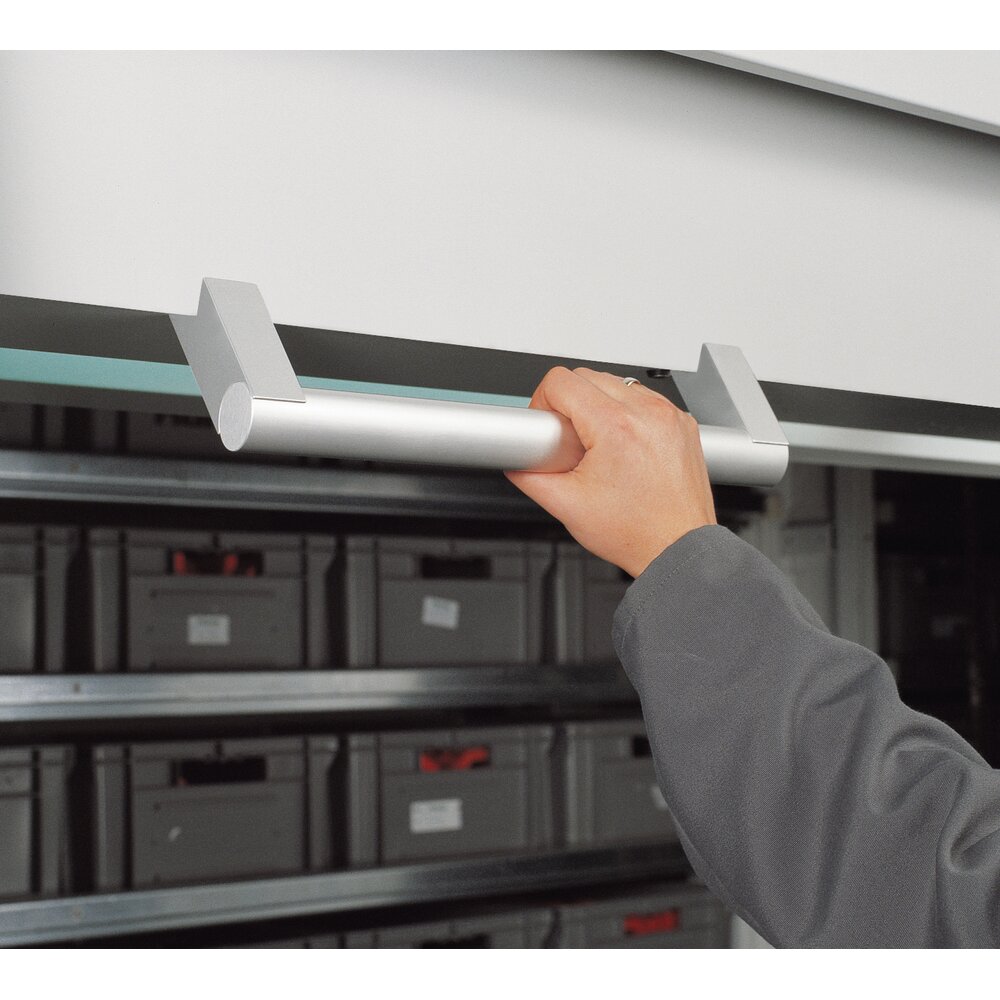

Length variable handles for mounting on edges, designed for vertical or horizontal uses.
Material and surface:
Handle shanks and elliptical bar of extruded aluminium AlMgSi 0.5; black or natural coloured anodized with dull bright finish. Connecting screws of stainless steel.
Note:
Other handle lengths or colour combinations on request.
Stress resistance:
min. 800 N.
Version U4-25
|
Unit of measure
|
|||
|---|---|---|---|
| Type | |||
| A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
| A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
|---|---|---|---|
| A 300 | L 335 |
Anodizing version natural-colored
Order-No. U4-25.300.01 3D+CAD |
Anodized aluminum black
Order-No. U4-25.300.04 3D+CAD |
| A 400 | L 435 |
Anodizing version natural-colored
Order-No. U4-25.400.01 3D+CAD |
Anodized aluminum black
Order-No. U4-25.400.04 3D+CAD |
| A 500 | L 535 |
Anodizing version natural-colored
Order-No. U4-25.500.01 3D+CAD |
Anodized aluminum black
Order-No. U4-25.500.04 3D+CAD |
| A 600 | L 635 |
Anodizing version natural-colored
Order-No. U4-25.600.01 3D+CAD |
Anodized aluminum black
Order-No. U4-25.600.04 3D+CAD |
| A 700 | L 735 |
Anodizing version natural-colored
Order-No. U4-25.700.01 3D+CAD |
Anodized aluminum black
Order-No. U4-25.700.04 3D+CAD |
| A 800 | L 835 |
Anodizing version natural-colored
Order-No. U4-25.800.01 3D+CAD |
Anodized aluminum black
Order-No. U4-25.800.04 3D+CAD |
Version U4-35
|
Unit of measure
|
|||
|---|---|---|---|
| Type | |||
| A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
| A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
|---|---|---|---|
| A 300 | L 335 |
Anodizing version natural-colored
Order-No. U4-35.300.01 3D+CAD |
Anodized aluminum black
Order-No. U4-35.300.04 3D+CAD |
| A 400 | L 435 |
Anodizing version natural-colored
Order-No. U4-35.400.01 3D+CAD |
Anodized aluminum black
Order-No. U4-35.400.04 3D+CAD |
| A 500 | L 535 |
Anodizing version natural-colored
Order-No. U4-35.500.01 3D+CAD |
Anodized aluminum black
Order-No. U4-35.500.04 3D+CAD |
| A 600 | L 635 |
Anodizing version natural-colored
Order-No. U4-35.600.01 3D+CAD |
Anodized aluminum black
Order-No. U4-35.600.04 3D+CAD |
| A 700 | L 735 |
Anodizing version natural-colored
Order-No. U4-35.700.01 3D+CAD |
Anodized aluminum black
Order-No. U4-35.700.04 3D+CAD |
| A 800 | L 835 |
Anodizing version natural-colored
Order-No. U4-35.800.01 3D+CAD |
Anodized aluminum black
Order-No. U4-35.800.04 3D+CAD |
