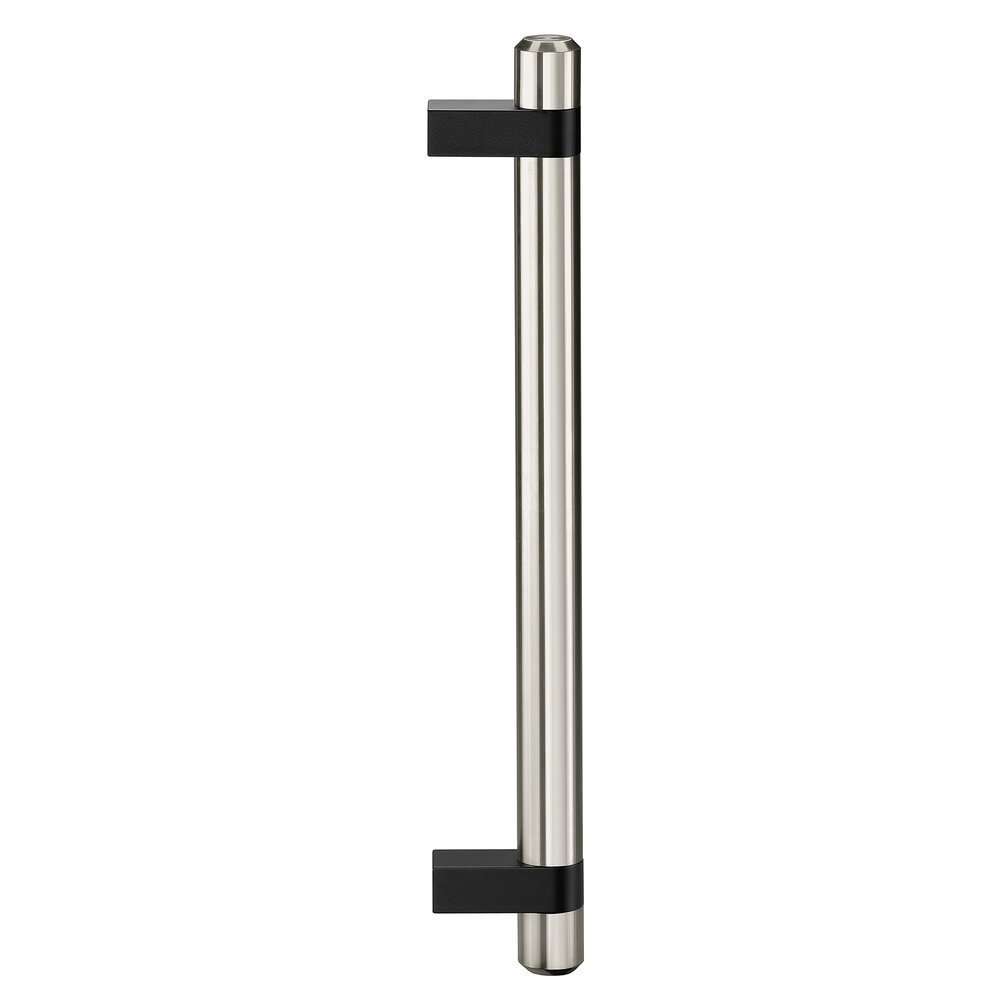

Handles U3

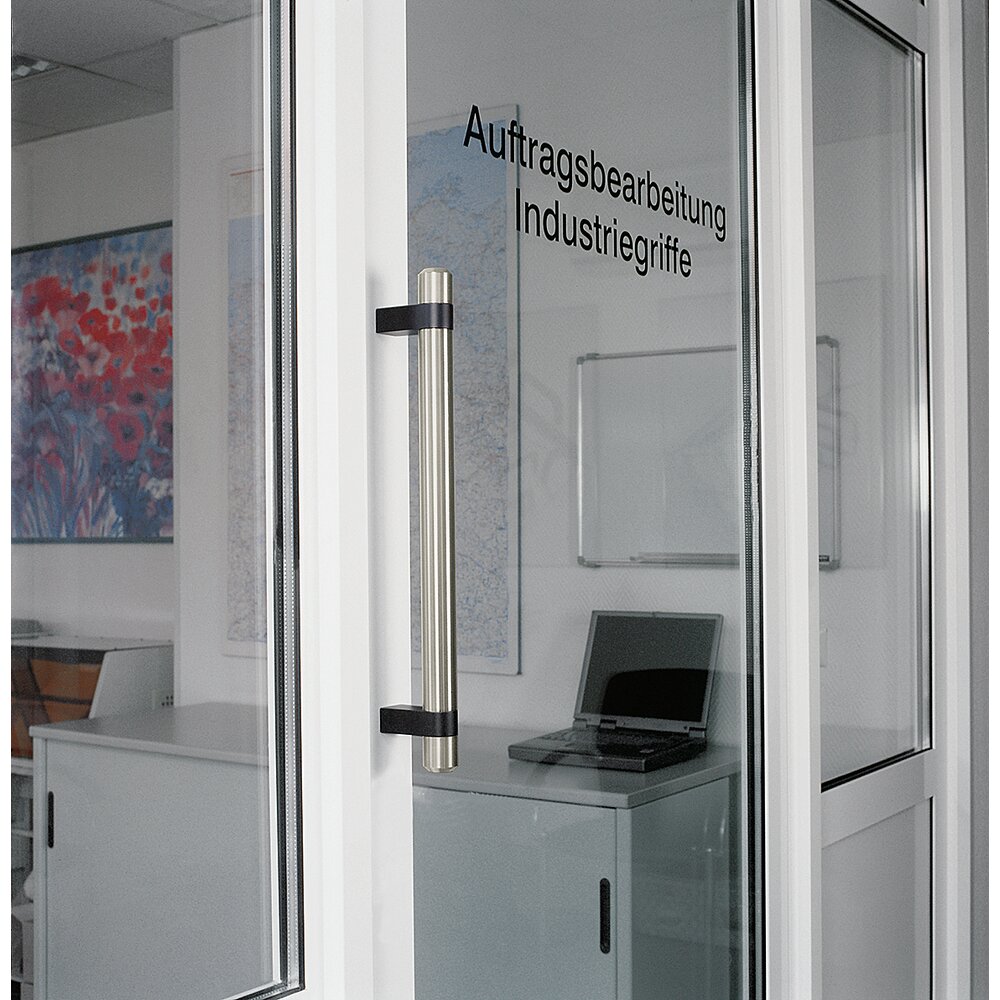

Universal handle with heavy duty design for machines, technical installations and doors, available as single or double handle for mounting on doors on both sides.
Material and surface:
Grip ledge of stainless steel tube ø35x2 mm, material no. 1.4301; fine ground. End pieces of round bar stainless steel, material no. 1.4305; fine ground. Handle shanks of aluminium AlMgSi 0.5; black anodized with dull bright finish.
Assembly and order information:
With all double handles, the supplied inner hexagonal socket head cap screws M8x60 DIN 912 permit fastening to doors with a thickness of 6-20 mm; the use of longer standard screws enables assembly to any optional door thickness.
Note:
Other handle lengths on request.
Stress resistance:
min. 1000 N.
|
Unit of measure
|
|||
|---|---|---|---|
| Description | |||
| A | L |
Double handles
Order-No. |
Single handles
Order-No. |
| A | L |
Double handles
Order-No. |
Single handles
Order-No. |
|---|---|---|---|
| A 300 | L 395 |
Double handles
Order-No. U3-35.G300.DO 3D+CAD |
Single handles
Order-No. U3-35.G300.EG 3D+CAD |
| A 400 | L 495 |
Double handles
Order-No. U3-35.G400.DO 3D+CAD |
Single handles
Order-No. U3-35.G400.EG 3D+CAD |
| A 500 | L 595 |
Double handles
Order-No. U3-35.G500.DO 3D+CAD |
Single handles
Order-No. U3-35.G500.EG 3D+CAD |
| A 600 | L 695 |
Double handles
Order-No. U3-35.G600.DO 3D+CAD |
Single handles
Order-No. U3-35.G600.EG 3D+CAD |
| A 700 | L 795 |
Double handles
Order-No. U3-35.G700.DO 3D+CAD |
Single handles
Order-No. U3-35.G700.EG 3D+CAD |
| A 800 | L 895 |
Double handles
Order-No. U3-35.G800.DO 3D+CAD |
Single handles
Order-No. U3-35.G800.EG 3D+CAD |
