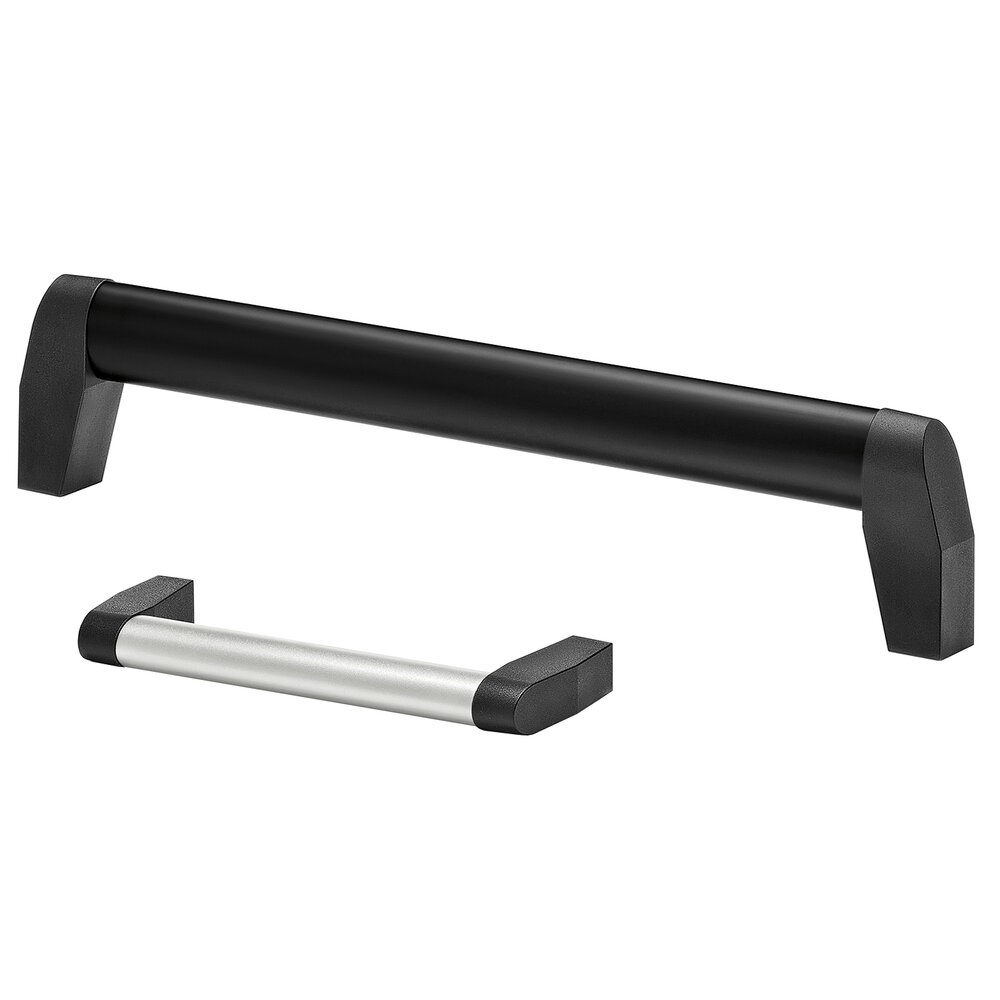

Handles OG
This handle series is distinguished by the oval handle ledge profile.
Material and surface:
Plastic Handle shank made of polyamide PA6, black with fine structure and threaded bushing made of brass. Handle ledge made of extruded aluminium oval profile AlMgSi 0.5; glass ball blasted and natural coloured or black anodized. Clamping sleeves made of stainless steel.
Note:
Other handle lengths and surfaces available on request.
Stress resistance:
min. 500 N.
Version OG-16
|
Unit of measure
|
||
|---|---|---|
| Anodizing version | ||
| A |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
| A |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
|---|---|---|
| A 150 |
Anodizing version natural-colored with satin finish
Order-No. OG-16.150.S11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. OG-16.150.S14 3D+CAD |
| A 200 |
Anodizing version natural-colored with satin finish
Order-No. OG-16.200.S11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. OG-16.200.S14 3D+CAD |
| A 250 |
Anodizing version natural-colored with satin finish
Order-No. OG-16.250.S11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. OG-16.250.S14 3D+CAD |
Version OG-26
|
Unit of measure
|
||
|---|---|---|
| Anodizing version | ||
| A |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
| A |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
|---|---|---|
| A 250 |
Anodizing version natural-colored with satin finish
Order-No. OG-26.250.S11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. OG-26.250.S14 3D+CAD |
| A 300 |
Anodizing version natural-colored with satin finish
Order-No. OG-26.300.S11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. OG-26.300.S14 3D+CAD |
| A 400 |
Anodizing version natural-colored with satin finish
Order-No. OG-26.400.S11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. OG-26.400.S14 3D+CAD |
