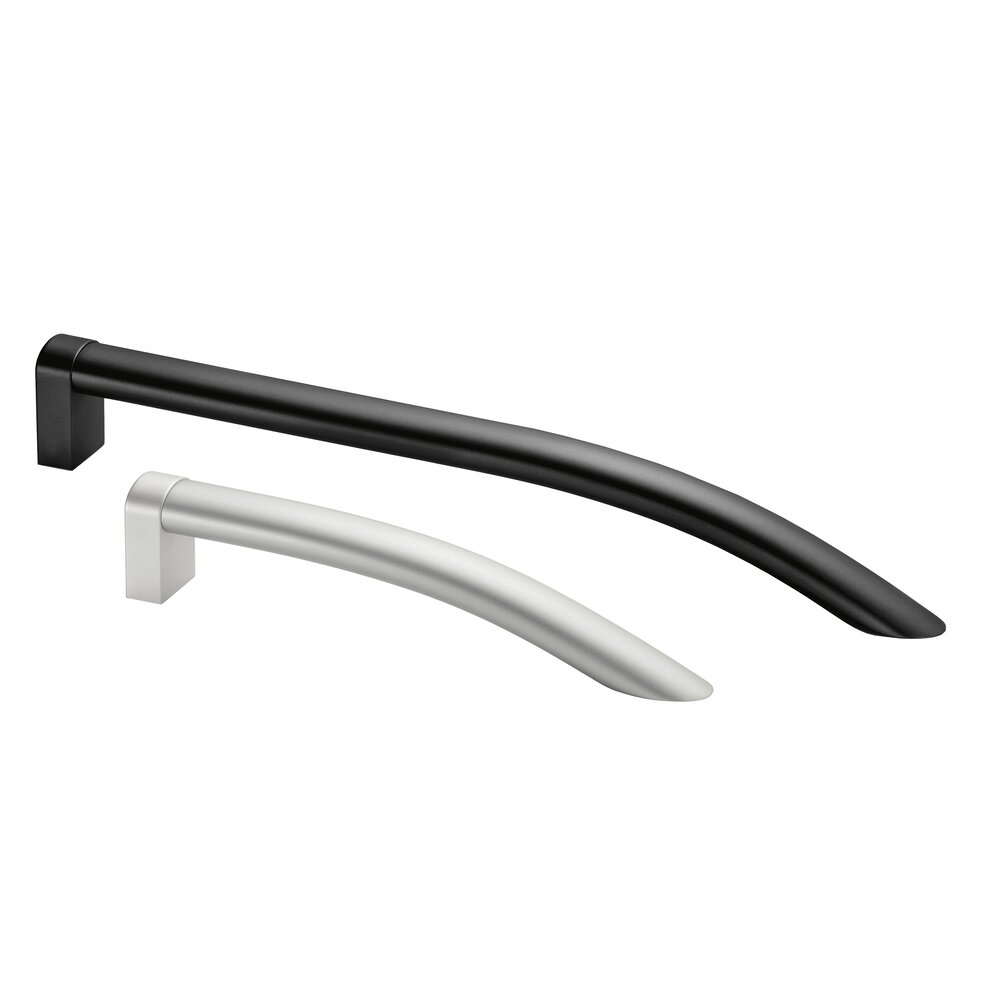

  • Two aluminium BG type handles, one in black anodized satin finish and the other in natural glass ball blasted aluminium, both curved with rectangular base mounts.

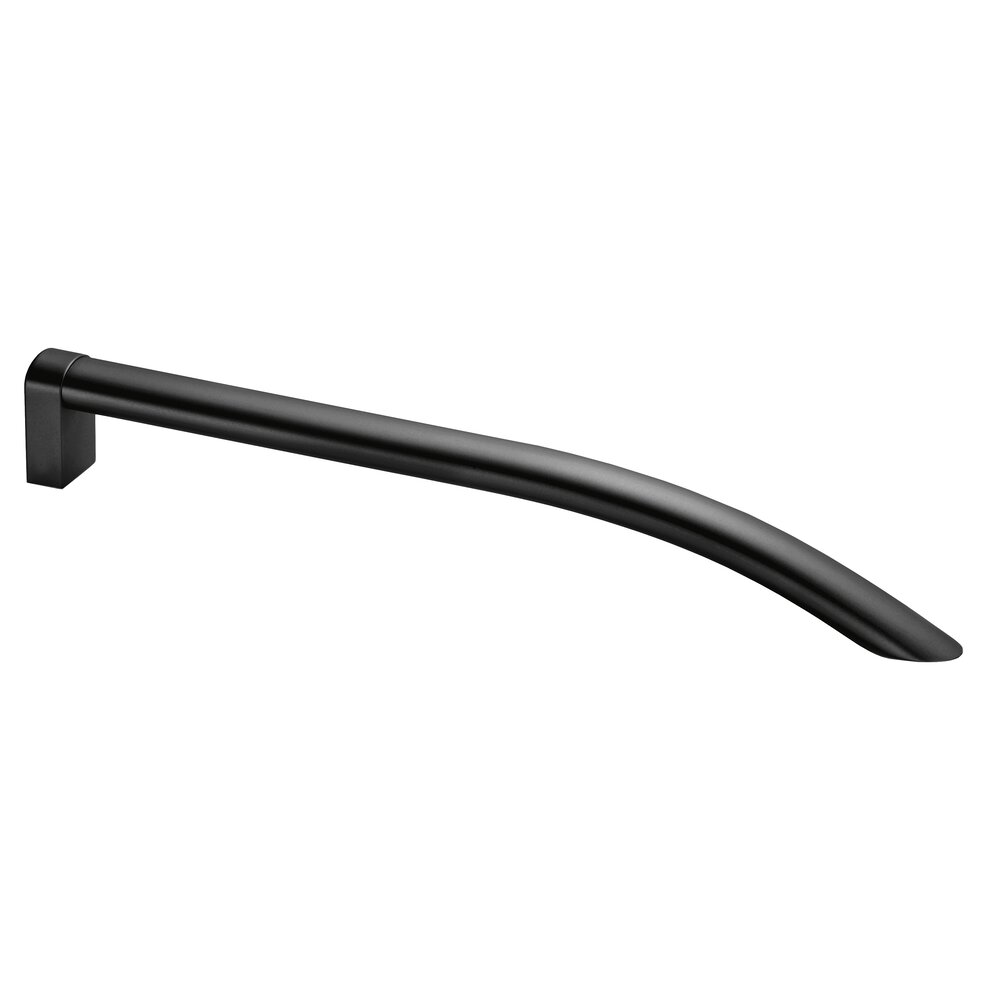

  • Bügelgriffe aus Aluminium, Typ: BG-35 A; Farbe schwarz

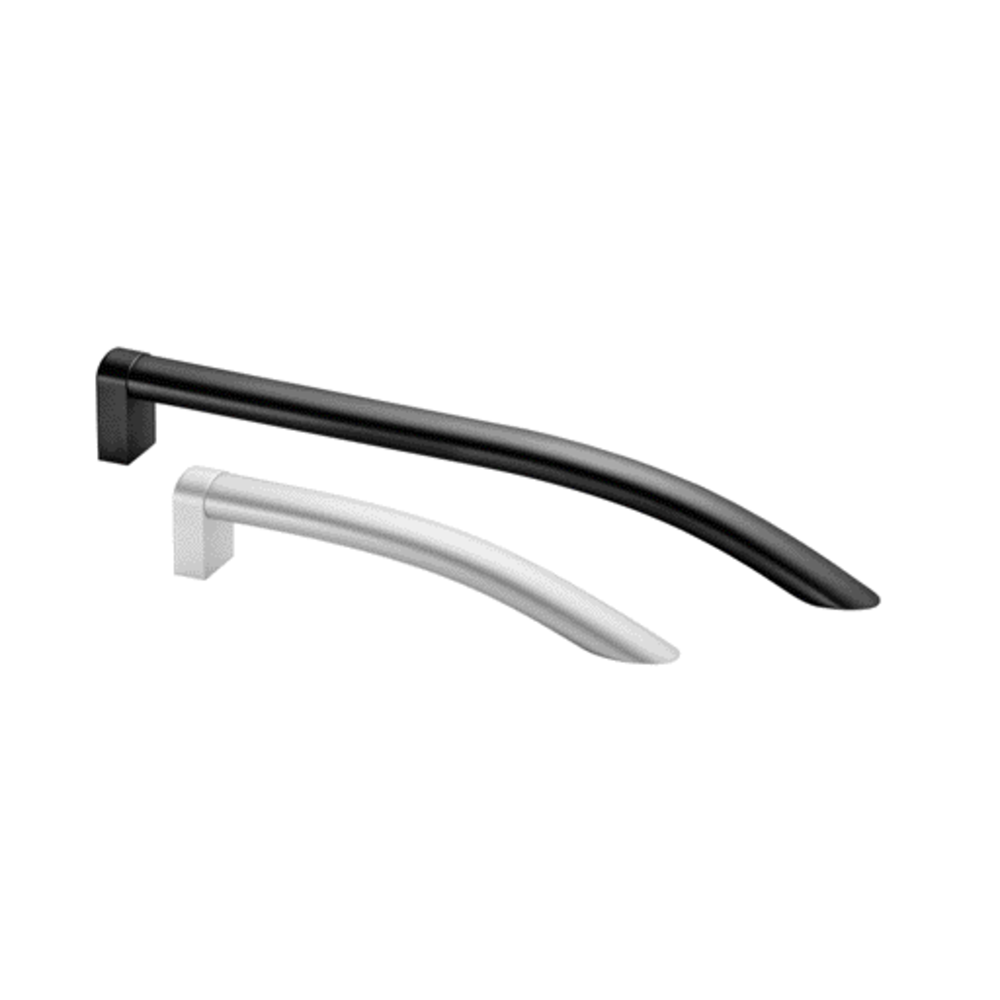

  • Handles of extruded aluminium with clamping sleeves of stainless steel

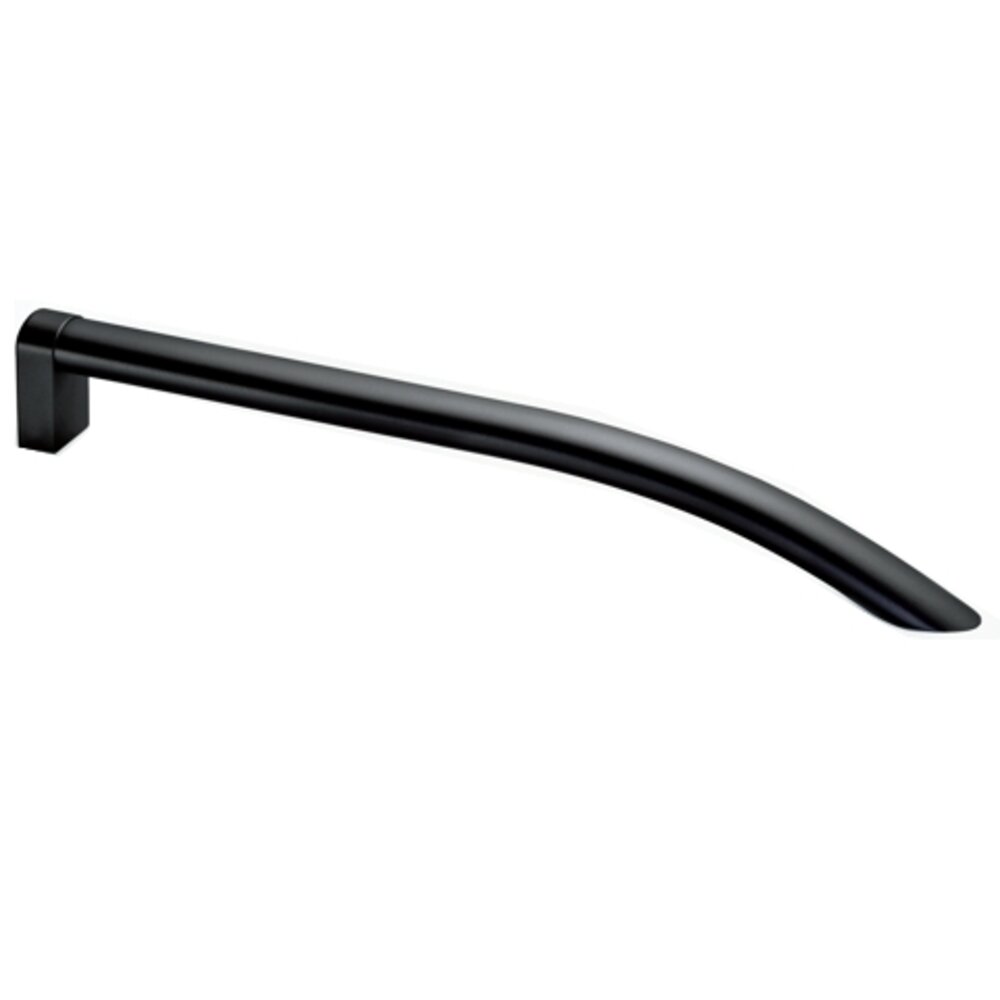

  • Bügelgriffe aus Aluminium, Typ: BG-35; Farbe schwarz
Two aluminium BG type handles, one in black anodized satin finish and the other in natural glass ball blasted aluminium, both curved with rectangular base mounts.
Bügelgriffe aus Aluminium, Typ: BG-35 A; Farbe schwarz
Handles of extruded aluminium with clamping sleeves of stainless steel
Bügelgriffe aus Aluminium, Typ: BG-35; Farbe schwarz

Handles BG

Material and surface:
Handle shank and ledge of extruded aluminium AlMgSi 0.5; glass ball blasted and natural colour or black anodized with satin finish. Clamping sleeves of stainless steel.

Note:
Other handle lengths and colour versions available on request.

Stress resistance:
min. 1000 N.

show more show less
Technical drawing of BG handle showing side view, end view, cross-section, and dimensions with a total length of 250 mm and specifications for materials used.
BG-35.A400; BG-35.A600
Unit of measure
Type
A L Anodizing version natural-colored with satin finish
Order-No.
Anodized aluminum black with satin finish
Order-No.
A L Anodizing version natural-colored with satin finish
Order-No.
Anodized aluminum black with satin finish
Order-No.
A 250 L 305 Anodizing version natural-colored with satin finish
Order-No.
BG-35.A250.11 3D+CAD
Anodized aluminum black with satin finish
Order-No.
BG-35.A250.14 3D+CAD
A 400 L 455 Anodizing version natural-colored with satin finish
Order-No.
BG-35.A400.11 3D+CAD
Anodized aluminum black with satin finish
Order-No.
BG-35.A400.14 3D+CAD
A 600 L 655 Anodizing version natural-colored with satin finish
Order-No.
BG-35.A600.11 3D+CAD
Anodized aluminum black with satin finish
Order-No.
BG-35.A600.14 3D+CAD
