功能拉手 FG16-19

Capacitive handle with optical feedback by green LED. The handle switches reliable by touching the back. The electronics in the handle are wear-free and therefore extremely durable.

Material and surface:
Handle shanks made of high strength polyamide PA6, black with fine structure. Handle ledge made of lathed PVC, black.

Function elements:
FG16-19S:
Capacitive sensor (NO contact)

FG16-19O:
Capacitiver sensor (NC contact)

FG16-00:
Opposite handle without switching elements.

Connection:
4-pole connector positioned at the tubular axle of the handle ledge in the handle shank. Coupling with 10m ready-made cable available as accessory.

Protection class:
IP 54 with coupling screwed on.

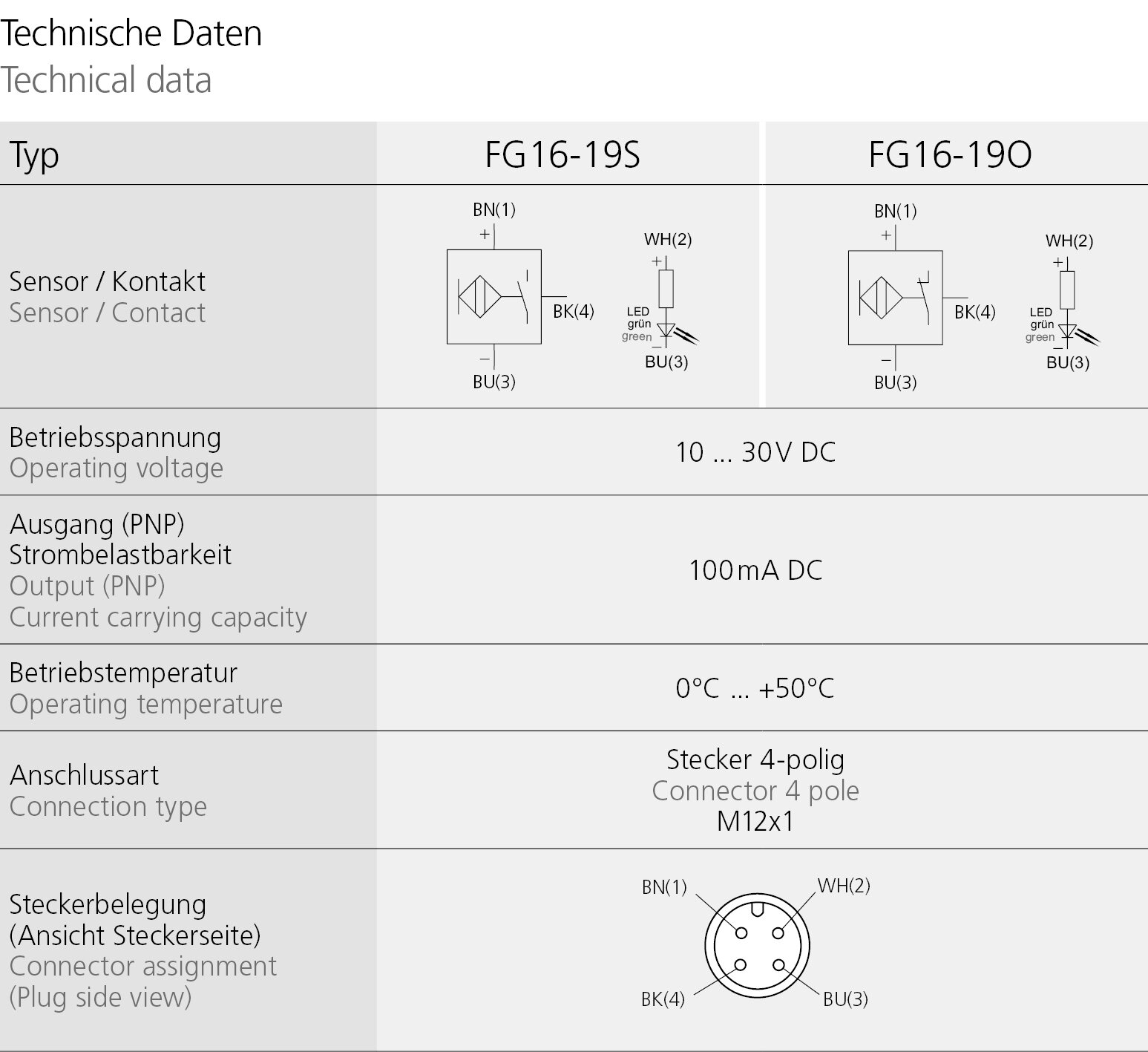

Technical data
測量單位

產品類型	描述	商品編號
產品類型FG16-00	描述反向拉手无功能	商品編號 FG16-00.150.84 3D+CAD
產品類型FG16-19O	描述Capacitive sensor (NC contact)	商品編號 FG16-19O.150.84 3D+CAD
產品類型FG16-19S	描述Capacitive sensor (NO contact)	商品編號 FG16-19S.150.84 3D+CAD

Zubehör
		拉手附件
長	與電纜耦合	4 针脚 (M12 x 1) 商品編號
長10 m	與電纜耦合角度的	4 针脚 (M12 x 1) 商品編號 FZ-KS.W04.10
長10 m	與電纜耦合直/轴向	4 针脚 (M12 x 1) 商品編號 FZ-KS.G04.10
