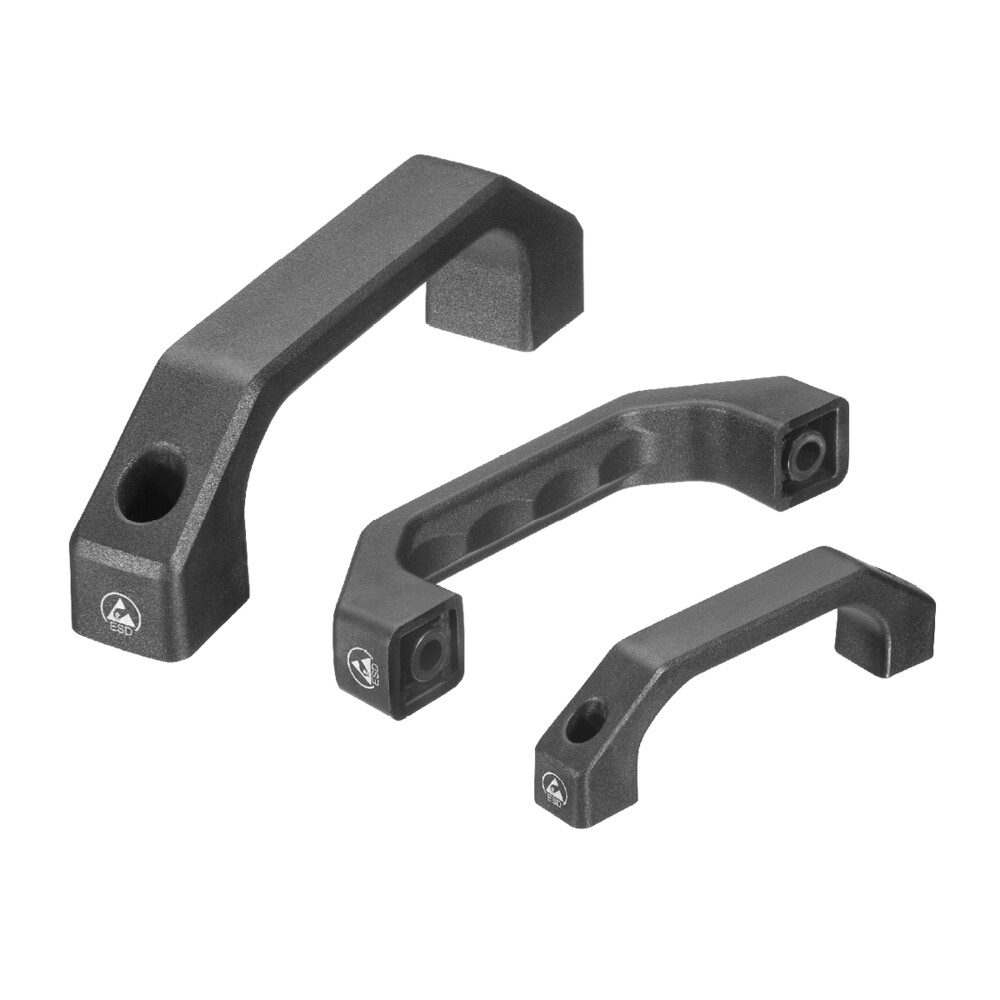

工业拉手 RG ESD

Handles to protect sensitive electronic parts and components. Special dissipative plastic ensures safe use in ESD protection zones.

Material and surface:
Handle made of polyamid PA6, glass ball reinforced, black with fine structure.

Stress resistance:
min. 1.000 N.

Scope of delivery:
Cheese head screws with hexagon sockets, nuts and washers of stainless steel.
Also available without screws.

Technical drawing

Technical data
測量單位
		供货范围
A	L	无螺栓商品編號	用螺絲商品編號	M	T	H	D₁	D₂	D₃	S
A100	L122	无螺栓商品編號 RG-1P.100.ESD 3D+CAD	用螺絲商品編號 RG-1N.100.ESD 3D+CAD	MM5x22	T13	H33	D₁17,0	D₂19	D₃8,5	S20
A120	L146	无螺栓商品編號 RG-1P.120.ESD 3D+CAD	用螺絲商品編號 RG-1N.120.ESD 3D+CAD	MM6x25	T15	H39	D₁20,5	D₂24	D₃10,5	S24
A140	L170	无螺栓商品編號 RG-1P.140.ESD 3D+CAD	用螺絲商品編號 RG-1N.140.ESD 3D+CAD	MM8x30	T16	H45	D₁24,0	D₂27	D₃12,0	S28
A160	L194	无螺栓商品編號 RG-1P.160.ESD 3D+CAD	用螺絲商品編號 RG-1N.160.ESD 3D+CAD	MM8x35	T20	H52	D₁27,5	D₂31	D₃13,5	S32
A180	L218	无螺栓商品編號 RG-1P.180.ESD 3D+CAD	用螺絲商品編號 RG-1N.180.ESD 3D+CAD	MM10x40	T20	H58	D₁31,0	D₂35	D₃15,5	S36
